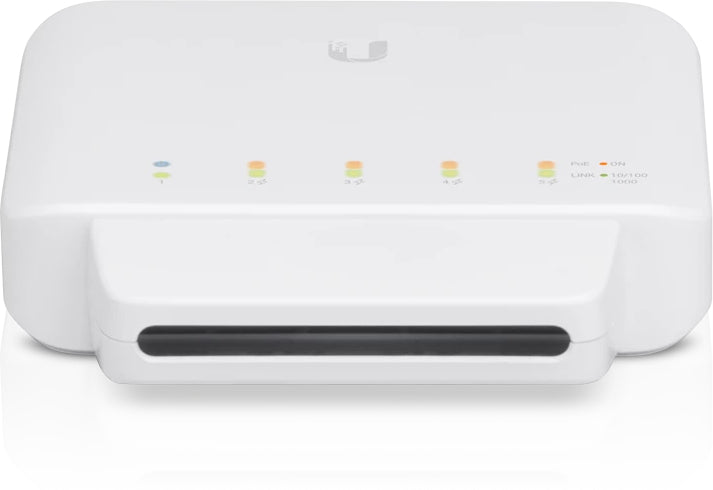

Ubiquiti USW-Flex 5-Port Layer 2 Gigabit Switch With PoE Support


General Information

Manufacturer: Ubiquiti Networks, Inc
Manufacturer Part Number: USW-FLEX
Manufacturer Website Address: www.ubnt.com
Brand Name: Ubiquiti
Product Model: USW-Flex
Product Name: 5-Port Layer 2 Gigabit Switch With PoE Support
Marketing Information:

PoE Flexibility

The USW-Flex supports a maximum PoE output budget of 46W when powered by 60W 802.3bt PoE++. Four ports offer auto-sensing 802.3af PoE output to power multiple devices on the network.

Versatile Mounting

The USW-Flex can be installed horizontally or vertically making it ideal for desktop, magnetic wall-mount, and pole-mount installations.

Indoor/Outdoor Design

The USW-Flex is designed for indoor or outdoor use. With its weatherproof housing and versatile mounting options, the USW-Flex provides both flexibility and durability for environments with extreme temperature variations.

Compatible Products

The USW-Flex powers a variety of products, including the UniFi Video Camera G3 Flex, UniFi Video Camera G4 Pro, and UniFi AC Mesh AP, which use 802.3af PoE. To enable its maximum power budget of 46W, the USW-Flex can be powered by the USW-Industrial switch, which provides 60W of 802.3bt PoE++.

Seamless Integration

A single instance of the UniFi Controller running in the cloud can manage multiple UniFi sites within a centralized interface. Each site is logically separated and has its own network monitoring, configuration, maps, statistics, and admin accounts.

Product Type: Ethernet Switch


Total Number of Network Ports: 5
Modular: No
Port/Expansion Slot Details: 5 x Gigabit Ethernet PoE

Media & Performance

Media Type Supported: Twisted Pair
Ethernet Technology: Gigabit Ethernet
Network Technology: 1000Base-T

Network & Communication

Layer Supported: 2

Power Description

Power Source: PoE

Physical Characteristics

Form Factor: Desktop
Form Factor: Pole Mount
Form Factor: Wall Mountable
Height: 1.1"
Width: 4.8"
Depth: 4.2"
Weight (Approximate): 8.11 oz


Environmentally Friendly: Yes
Environmental Certification: WEEE


Limited Warranty: 1 Year
