ALTRONIX eBridge100RMT ETHERNET OVER COAX/CAT5E EXTENDER

$390.00

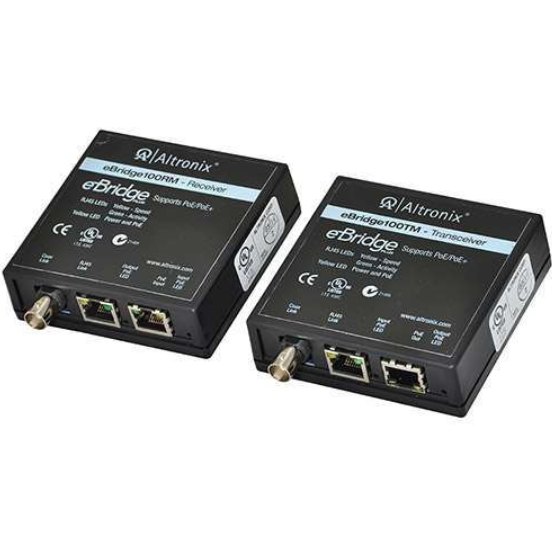

eBridge100RMT Ethernet over Coax/CAT5e Adapter Kits transmit full duplex data at 100mbps and pass PoE compliant power over coax 304m, or CAT5e cable up to 500m without repeaters. The adapter kit consists of an eBridge100RM receiver and an eBridge100TM transceiver. These adapters, along with the connected IP camera or edge device, is powered by virtually any midspan or endspan. Remote management functions such as edge device reset, monitoring real-time current draw and port status are possible when coupled with an Altronix NetWay8M/16M Midspan. eBridge100RMT is compatible with Megapixel, HD720, HD1080 and VGA cameras.
Applications:

Replace legacy analog products with new IP devices over existing coax or CAT5e cable.
Works with Megapixel, HD720, HD1080 and VGA (SD) cameras.
Extend Network link distance in an industrial environment.
Upgrade deployed CCTV Coax to a digital network in Retail, Casinos, Airports, Schools, Hospitals, etc.





Weight 0.6 lbs
Dimensions

eBridge100RM/eBridge100TM:
3.5” x 3.5” x 1” (88.89mm x 88.89mm x 25.4mm)

Shipping weight (approx.)

0.8 lbs. (0.36kg).
