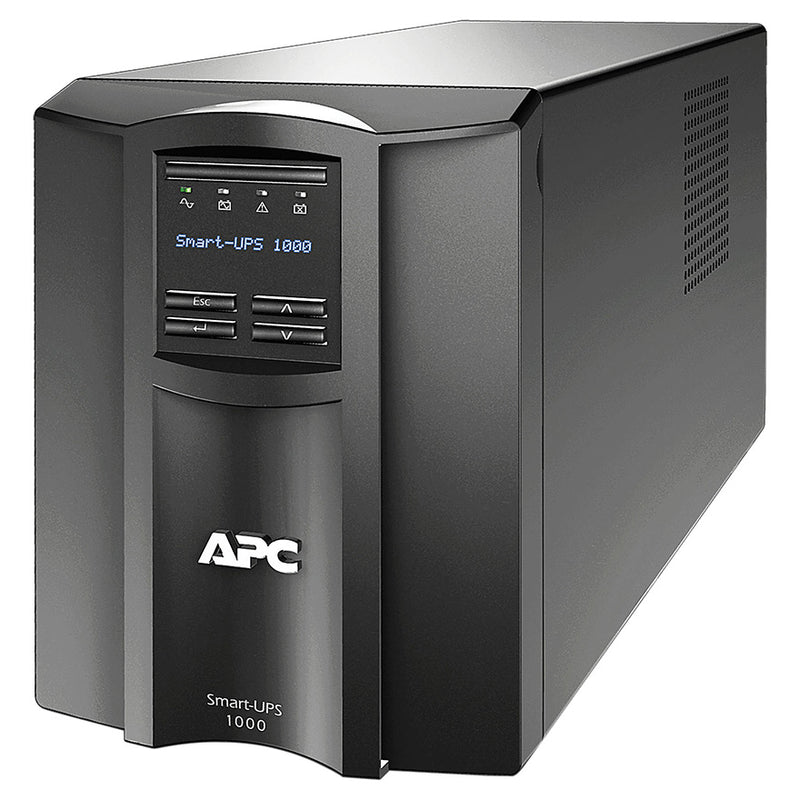

APC SMT1000C APC Smart-UPS 120V 1000VA LCD Backup Battery & Surge Protector with SmartConnect LCD


APC SMT1000C APC Smart-UPS 120V 1000VA LCD Backup Battery & Surge Protector with SmartConnect LCD

Protect servers, switches, routers, and networking devices, with the APC SMT1000C. This Smart-UPS 120V 1000VA LCD Backup Battery with Smart Connect provides backup battery power in the event of a power outage while also safeguarding equipment from harmful power conditions such as spikes and surges.



Included with the APC SMT1000C is a service-free cloud monitoring option accessible from any internet connected device. It also maximizes the life and performance of Ups machines by providing proactive advice and life cycle recommendations to allow users to remotely power the infrastructure from anywhere.


Great Make

An automatic green mode ensures that users are operating at the highest level of efficiency, and an intelligent battery management system maximizes performance. With a 700 watt power capacity and eight battery/surge protected outlets, the APC SMT1000C is ideal for homeowners and small-medium sized businesses.



For nearly four decades, APC has become the industry-standard for reliable power and physical IT infrastructure. Now the leading name in IT departments large and small and among our vast community of channel partners, our history of innovation has pushed our products into the global spotlight with infrastructure, management, and data security solutions protecting organizations around the world.

Output Power Capacity 700Watts / 1.0 kVA
Maximum Configurable Power (Watts) 700Watts / 1.0 kVA
Nominal Output Voltage 120V
Output Voltage Distortion Less than 5%
Output Frequency (sync to mains) 50/60Hz +/- 3 Hz
Other Output Voltages 110, 127
Topology Line Interactive
Waveform Type Sine Wave
Output Connections (8) NEMA 5-15R (Battery Backup)
Transfer Time 6ms typical : 10ms maximum
Nominal Input Voltage 120V
Input Frequency 50/60 Hz +/- 3 Hz (auto sensing)
Input Connections NEMA 5-15P
Cord Length 6ft ( 1.83 meters )
Input Voltage Range for Main Operations 82-144V
Input Voltage Adjustable Range for Mains Operation 75 - 154V
Number of Power Cords 1
Other Input Voltages 110, 127
Battery Type Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof
Typical Recharge Time 3 hours
Expected Battery Life 3-5 years
RBC Quantity 1
Interface SmartSlot, USB
Control Panel Multi-function LCD status and control console
Audible Alarm Alarm when on battery: distinctive low battery alarm : configurable delays
Surge Energy Rating 680Joules
Filtering Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449
Max Dimensions (H x W x D) 8.62 inches (219 mm , 21.9 CM ) x 6.73 inches (171 mm , 17.1 CM ) x 17.28 inches (439 mm , 43.9 CM )
Net Weight 44.31 lbs. (12.5 KG )
Shipping Dimensions (H x W x D) 12.99 inches ( 330 mm , 33.0 CM ) x 12.99 inches (330 mm , 33.0 CM ) x 23.23 inches (590 mm, 59.0 CM)
Shipping Weight 49.91 lbs. (22.64 KG )
Color Black
Operating Temperature 32 - 104 °F ( 0 - 40 °C )
Operating Relative Humidity 0 - 95 %
Operating Elevation 0-10000ft (0-3000meters )
Storage Temperature -15 - 45 °C
Storage Relative Humidity 0-95%
Storage Elevation 0-50000ft ( 0-15000meters )
Audible noise at 1 meter from surface of unit 41.0 dBA
Online Thermal Dissipation 175.0 BTU/hr
Approvals CSA, CSA C22.2 No. 107.1, ENERGY STAR V1.0 (USA), FCC Part 15 Class B, ICES-003, UL 1778
Equipment Protection Policy Lifetime : $150000
Standard Warranty 3 years repair or replace and 2 years for the battery
RoHS Compliant
REACH Contains no SVHCs
