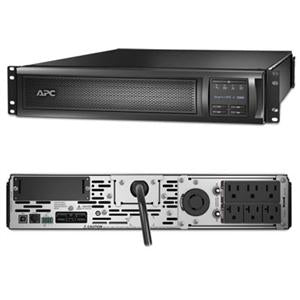

APC SMX3000RMLV2U Smart-UPS X 3000VA Rack-mountable UPS


General Information

Manufacturer: Schneider Electric SA
Manufacturer Part Number: SMX3000RMLV2U
Manufacturer Website Address: www.schneider-electric.com
Brand Name: APC by Schneider Electric
Product Line: Smart-UPS
Product Series: X
Product Model: SMX3000RMLV2U
Product Name: Smart-UPS X SMX3000RMLV2U 3000 VA Rack-mountable UPS
Product Type:  Line-interactive UPS

Technical Information

Plug/Connector Type: NEMA L5-30P
Receptacles: 1 x NEMA L5-30R
Receptacles: 3 x NEMA 5-15R
Receptacles: 3 x NEMA 5-20R
Emergency Power OFF: Yes
Transfer Time:  4 ms

Power Description

Load Capacity: 3000 VA/2700 W
Input Voltage: 110 V AC
Output Voltage:  120 V AC


Serial Port: Yes
USB: Yes
Total Number of Expansion Slots:  1

Battery Information

Battery Characteristics: Maintenance-free, Sealed, Spill-proof
Battery Chemistry: Lead Acid
Backup/Run Time (Full Load): 6 Minute
Backup/Run Time (Half Load): 18 Minute
Typical Battery Recharge Time: 3 Hour
Hot Swappable:  Yes

Physical Characteristics

Height: 3.3"
Width: 17"
Depth: 26.3"
Rack Height: 2U
Form Factor: Rack-mountable
Weight (Approximate):  84.77 lb


Package Contents:

  • Smart-UPS X SMX3000RMLV2U 3000 VA Rack-mountable UPS
  • CD with Software
  • Documentation CD
  • Installation Guide
  • Rack Mounting Brackets
  • Rack Mounting Hardware
  • Rack Mounting Support Rails
  • Removable Support Feet
  • Smart UPS Signaling RS-232 Cable
  • USB Cable

Certifications & Standards:

  • BSMI
  • CSA
  • EN 50091-2
  • EN 55022 Class A
  • FCC Part 15 Class A
  • NOM
  • TUV
  • UL 1778
  • VCCI Class A
  • UL 1449

Environmentally Friendly:  Yes
Environmental Certification: REACH
Environmental Certification:  RoHS


Limited Warranty: 3 Year
