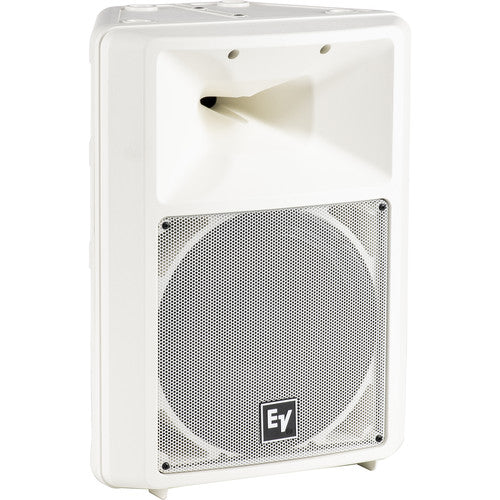

Electro-Voice F.01U.265.558 Sx100+ 12" 2-Way 200W Passive Loudspeaker (White)

$799.00

ELECTRO-VOICE F.01U.265.557

The Electro-Voice ® Sx100+ is a 200-watt, 12-inch two-way, high efficiency, constant-directivity portable speaker system. Through the extensive use of computer-aided design and modeling, Electro-Voice engineers have developed a stateof-the-art professional loudspeaker system. Its performance and physical design make it perfect for many applications requiring quality sound in portable and fixed environments.
The high-frequency section of the Sx100+ utilizes a moldedin, 65° x 65° constant-directivity horn. This unique pattern contributes to high intelligibility, vocals sound natural yet “cut through” in reverberant, noisy rooms. Coverage pattern is uniform, sound quality off-axis is very well maintained, even at 45° off axis (a 90° total coverage angle).

The horn’s unique, VaripathTM throat geometry helps driver output to the corners of the room, areas which are not described in the usual specifications of horizontal and vertical coverage angles. This results in more uniform coverage throughout, even to those parts of the audience that typically do not receive the strongest coverage.
The Sx100+’s high-frequency horn is driven by the DH3, a one-inch-throat, wide-bandwidth, titanium-diaphragm driver using a unique, convex-drive TimePathTM phasing plug structure (U.S. Patent #4,525,604) for smooth and extended high-frequency response.

Features
  • Compact, Ergonomic Size
  • Integral Monitor Stand
  • Ring-Mode Decoupling (RMDTM)
  • Pure Titanium Compression Driver
  • 65° x 65° Constant Coverage Horn
  • High Efficiency, High Output
  • Molded-in Pole Mount, Rigging Points

Freq. Response (-10 dB): 60 Hz - 25 kHz
Sensitivity: 98 dB
Max SPL: 127 dB
Impedance: 8 ohms Nominal, 5.6 ohms Min.
Horizontal Coverage: 65°
Vertical Coverage: 65°
Power Handling: 200W Continuous, 800W Peak
LF Transducer: 12" (300mm)
HF Transducer: 1" (25mm) exit DH3 Comp. Driver
Connectors: Neutrik Speakon®
Enclosure Material: Copolymer
Grille: Powder Coated Steel
Dim (H x W x D): 23.1" x 16.9" x 12.3"
(586 x 429 x 312mm)
Net Weight: 32 lbs (14.5 kg)
Shipping Weight: 35 lbs (15.9 kg)
