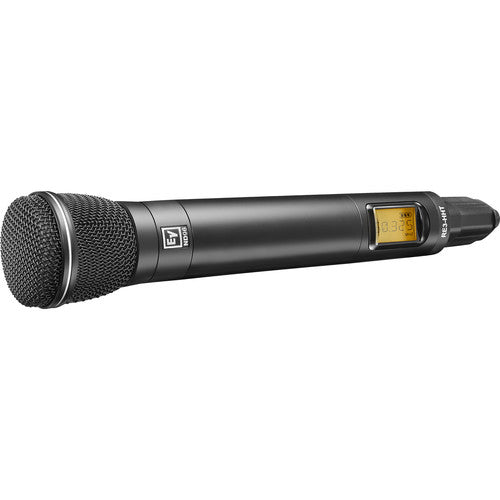

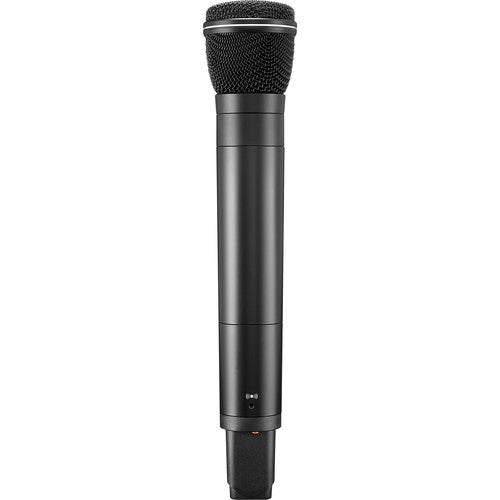

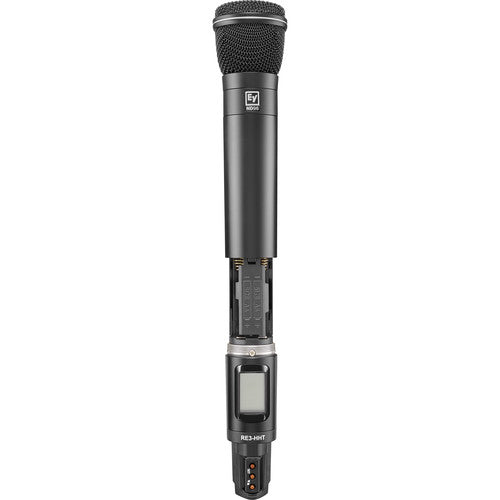

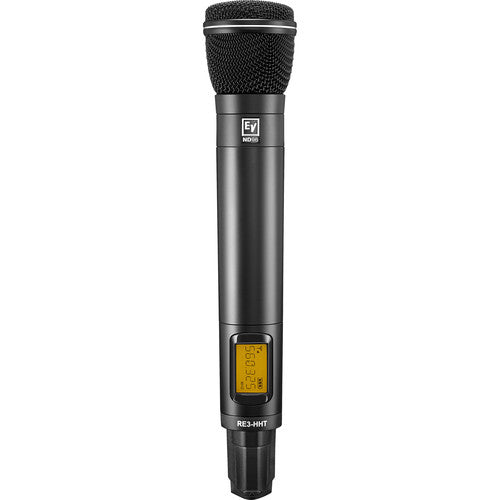

Electro-Voice RE3-HHT96-5L UHF Wireless Transmitter with ND 96 Supercardioid Capsule (488 to 524 MHz)


The RE3-HHT96-5L UHF Wireless Transmitter with ND 96 Supercardioid Capsule from Electro-Voice is a lightweight, yet robust UHF handheld transmitter body with a dynamic supercardioid microphone head for vocal performance and presentations. It can be used when paired with the RE3-RX diversity receiver (sold separately) to capture audio for all-around voice applications.

The handheld transmitter setup is quick and simple using the RE3 clear frequency scan and sync functions. It features 1440 selectable frequencies, switchable low- and high-output power, and up to 36 MHz tuning bandwidth. Additionally, recharging contacts provide for functional use with the optional BC2 charging station (sold separately) allowing the NiMH rechargeable cells to be charged without removal from the transmitter.

 Product Highlights:

Wireless Technology Analog UHF
RF Frequency Band 488 to 524 MHz
RF Bandwidth Up to 36 MHz
Encryption Yes
Modulation Wideband FM
Transmitter Type Handheld
RF Output Power 10 mW (50 mW Peak, Switchable)
Audio I/O None
Muting Mute Switch
Frequency Response 30 Hz to 15 kHz (Dependent on Mic)
140 Hz to 15 kHz (Dependent on Mic)
Sync Method IR
Power Requirements Battery
Battery Type 2 x AA (Included, Replaceable)
Display & Indicators LCD (Channel, Group, Mute, Power, RF Output Power)
Housing Metal
Dimensions 1.5 x 7.5" / 3.8 x 19.1 cm
Weight 12.2 oz / 345.9 g (without Capsule)
Microphone Type Handheld Capsule
Sound Field Mono
Polar Pattern Supercardioid
Frequency Range 30 Hz to 15 kHz
Maximum SPL 136.5 dB SPL Peak
Operating Voltage 4 to 8 V
Length 3.3" / 8.38 cm
Diameter 2.0" / 50.80 mm
