The latest generation of multi-channel Class D digital amplifiers from Russound expand on Russound's 55+ year history of audio design, adding high performance to even the most demanding audio systems, with the flexibility, power, and quality needed to be the backbone of your favorite audio system for years to come.
Main Features
- Quick setup, with plug and play
- 20 Gbps switching capacity
- 120W PoE budget
- Port status LED indicator
- Power adapter included
- Energy efficient
- 802.3/802.3u/802.3ab/802.3af/at compliant
- Limited lifetime warranty
Product info:
- 12-channel amplifier with 6 independent playback zones
- 45 watts per channel into 8 ohms (1,000 Hz) with one zone driven
- 90 watts per channel into 4 ohms (1,000 Hz) with one zone driven
- 180 watts per channel into 8 ohms in bridged mode (one zone driven)
- high-efficiency Class D amplification
- thermal fan cooling
- signal-to-noise ratio: greater than 90 dB
- rear-mounted, independent level controls for each zone
- 3 output filter settings for each zone
- full-range (full): the entire, unfiltered audio signal is sent to the speakers
- low-pass (lp): frequencies from 20 Hz to 160 Hz are sent to the speakers — great for passive subwoofers
- high-pass (hp): frequencies from 80 Hz to 20,000 Hz are sent to the speakers

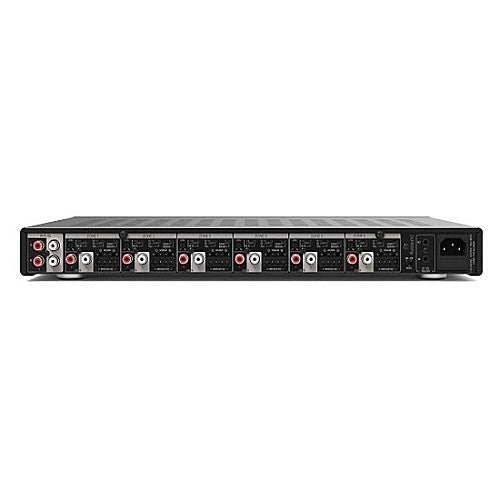

Connections:
- Bus A and Bus B stereo RCA inputs let you assign connected sources to any zone
- discrete "local" RCA inputs for each zone
- 12V trigger input and output for automated turn-on
- signal-sensing input activates the amplifier when a source is detected
- global trigger input/output
- detachable Phoenix-style speaker connectors support up to 14-gauge wire
- removable AC power cord
Dimensions and other info:

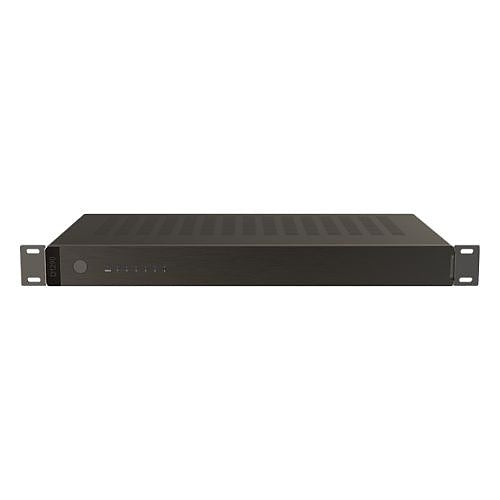

- rack mountable chassis (rack mount ears included)
- 17-1/8"W x 2"H x 12"D (1U rack space)
- weight: 9 lbs.
