Alarm Controls KR-1 Latching Key Reset, One N/O Pair and One N/C Pair, Stainless Steel Plate

Single gang panic station with latching key reset. Once activated the push button automatically latches, requiring the use of a key to reset. Ideal for applications requiring a personal response to an alarm condition. Choice of contact configurations ensures compatibility with most systems.

Features

Standard Features

• Single gang stainless steel wall plate, weather-resistant to IP40 standards

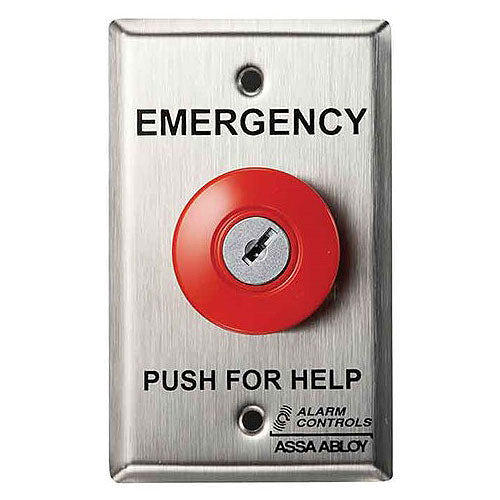

• 1-1/2” red mushroom button
• Plate screened “EMERGENCY PUSH FOR HELP” to quickly call for assistance
• Alternate action switch

Options

• Plates: multiple finishes and widths available, specify when ordering
• KR-1KEYReplacement key

Specifications

Certifications & Listings:Conforms to IP40

Electrical:

• Available in any combination of N/O and/or N/C contact pairs. See table below.
• Contacts rated 10A at 35 VDC or 120 VAC
• Switch connection via screw terminals
• Switch depth behind plate: 2”

Operating Temperature:-13F to +158 F (-25 to 70 C)
