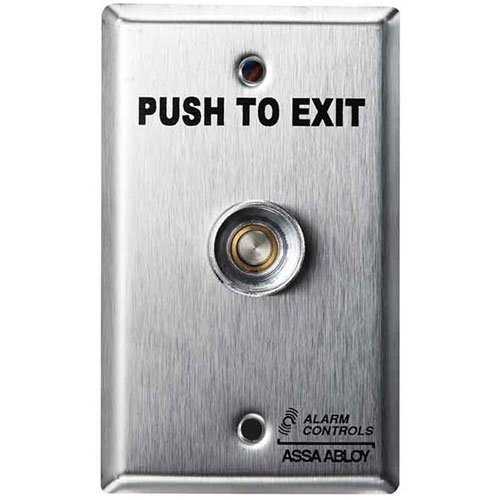

Alarm Controls TS-16302 Request to Exit Station with Pneumatic Timer, 1/4" Push Button, Weather Resistant Plate, Single Gang, 430 Stainless Steel

$299.99

Product Overview

The narrow stile TS-15 and single gang TS-16 request to exit stations with pneumatic push button timer, provide a convenient way to keep the door unlocked for a specified amount of time, allowing easy entry or egress. The door will relock when the relay time has expired.

Features

Standard Features

  • TS-16switch mounted on single gang wall plate with 430 stainless steel finish
  • 1/4" push button with guard ring
  • Plate screened “PUSH TO EXIT” for easy to follow egress instructions
  • Pneumatic time delay is adjustable 2 to 60 seconds
  • Does not require external power for operation
  • Timer life: up to 1 million operations

Options

  • TS-16302mounted on weather resistant plate with 302 stainless steel finish
  • Custom screening available

Specifications

Certifications & Listings:UL 294 listed

Electrical:

  • Two sets of contacts, one N/O and one N/C, isolated
  • Contacts rated 10A at 120 VDC
  • Switch depth behind plate: 1-1/4”
  • Switch time repeatable +/- 10%
  • Switch terminated with 10” colored leads

Operating Temperature:+15 to 120 F (-9 to 49C)

General Information
Name: Alarm Controls TS-16302 Request to Exit Station with Pneumatic Timer, 1/4" Push Button, Weather Resistant Plate, Single Gang, 430 Stainless Steel, ASSA ABLOY, Alarm Controls by ASSA ABLOY
Category: Alarm Controls by ASSA ABLOY, Access Control, Egress Devices, Door Release Buttons
UPC Code: 604840561082
Country of Origin: United States. Country of origin is subject to change.
