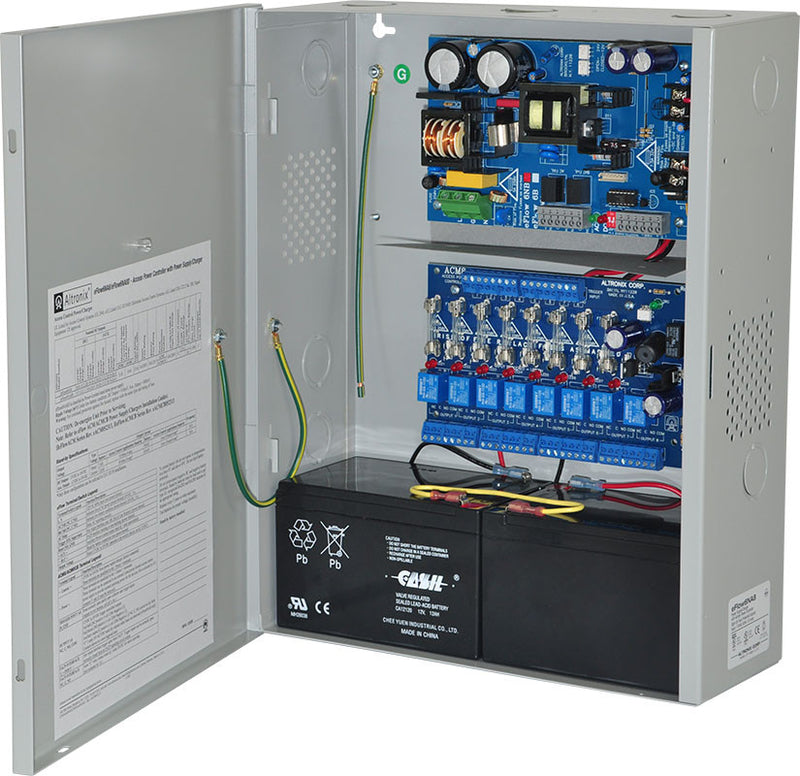

Altronix EFLOW6NA8 Access Power Controller w/ Power Supply/Charger, 8 Fused Relay Outputs, 12/24VDC, 6A, Aux Output, FAI, 115VAC, BC400 Enclosure

Altronix EFLOW6NA8 Access Power Controller w/ Power Supply/Charger, 8 Fused Relay Outputs, 12/24VDC, 6A, Aux Output, FAI, 115VAC, BC400 Enclosure

$465.50

Product Overview

Introducing the Altronix EFLOW6NA8 Access Power Controller, designed to efficiently distribute and manage power for access control systems and accessories. This robust unit transforms a 120VAC 60Hz input into eight independently controlled outputs, offering both 12VDC and 24VDC options with a total continuous supply of 6A. Each output is fuse protected and can be activated via various triggers, ensuring compatibility with devices like Mag Locks and Electric Strikes. With features like Fail-Safe and Fail-Secure modes, as well as a fire alarm disconnect option, this power controller is perfect for enhancing your security setup. Don't miss out on this essential component for your access control needs—order yours today!

Main Features

  • Eight (8) independently controlled outputs.
  • Output options: a) Eight (8) Fail-Safe and/or Fail Secure power outputs. b) Eight (8) form “C” 5A rated relay outputs. c) Any combination of the above.
  • Eight (8) auxiliary power outputs (unswitched).
  • Output fuses are rated at 3.5A.
  • Filtered and electronically regulated outputs.
  • Supervision: - AC Fail - Battery Fail and Battery Presence - Low power shutdown
  • Fire Alarm disconnect (latching or non-latching) is individually selectable for any or all of the eight (8) outputs.
  • Alarm output relay indicates that FACP input is triggered.
  • Fire Alarm disconnect input options: a) Normally open (NO) or normally closed (NC) dry contact input b) Polarity reversal input from FACP signaling circuit
  • Built-in charger for sealed lead acid or gel type batteries.

General Information

Name: Altronix EFLOW6NA8 Access Power Controller with Power Supply Charger, 8-Fused Relay Outputs, 12/24V DC, 6A, Auxiliary Output, FAI, 115V AC, BC400 Enclosure
Category: Altronix, Batteries & Power Supplies, Power Supplies & Boards, Access Power Controllers, Power Supplies
UPC Code: 782239952397
Country of Origin: United States. Country of origin is subject to change.
