VANCO® PulseAudio™ PA2X25 2 Channel, Class D Amplifier (25W)
The PA2X amplifier series from PulseAudio is an ideal solution for residential and commercial audio installations that require a simple setup and great sound output. With a small footprint, but high output, these Class D amplifiers can sit on a desktop, or can easily be mounted on a wall or within a rack using the included mounting brackets. The PA2X25 Class D Digital Amplifier operates at up to 25W, can be used in a stereo system, but can also be switched for use in bridged or mono applications.

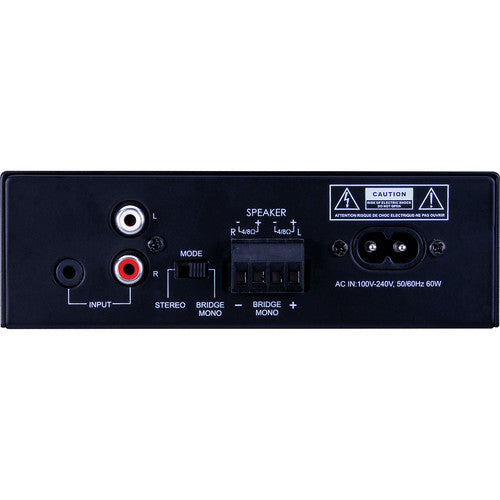

Versatile Connectivity
The inputs consist of two stereo audio inputs, two RCA inputs, and a single 3.5mm input for versatility. Also includes an auto-ON feature so the units do not need to be powered manually, just hit play and the amps will power on automatically! With a broad range of power output to pick from, the Pulse Audio PA2X amplifier series are a great solution for any desired application.
PulseAudio™ from VANCO®
With more than 50 years in the electronics accessories industry, PulseAudio draws upon Vanco’s years of experience to design and manufacture innovative products. The launch of PulseAudio is of strategic importance as it evolves Vanco to carve out a position in the A/V market, offering affordable, easy-to-integrate audio solutions for its professional channels. Both PulseAudio and Vanco’s customers will derive maximum benefit from an ongoing commitment to exceptional quality and customer support.
| Class D Digital Amplifier |
| RCA and 1/8" Stereo Inputs |
| Mixes audio when both inputs are connected and live |
| Stereo and Mono/Bridge Modes |
| Automatically goes into standby after 5 minutes of inactivity |
| Source Sensing to come out of standby when a connected source begins to play |
| AC 115/230V IN |
| Power Output (RMS @ 8 Ω): |
25Wx2 |
| Power Output (RMS @ 4 Ω): |
45Wx2 |
| Bridge Output (RMS @ 8 Ω): |
90W |
| Total Harmonic Distortion (THD): |
<1% (Rated Power: 25W @ 8 Ω) |
| Signal to Noise: |
>90 dB A WTD |
| Frequency Response: |
20Hz-20KHz +0/- 2dB @ 8 Ω |
| Line Level Input Sensitivity: |
700mV |
| Thermal Protection: |
Yes |
| Short Protection: |
Yes |
| Dimensions: |
143mm x 95mm x 45mm (WxDxH) |
| Weight: |
0.6kG |
| Package Contents: |
- Bridgeable Amplifier
- Power Lead Cable
- 1-4 Conductor Phoenix Connector (Screw down terminal)
- Mounting Bracket and Screws
- Product Manual
|
