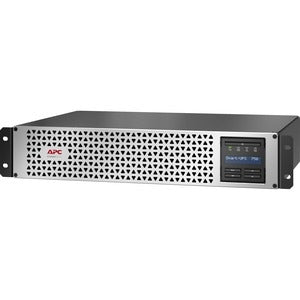

APC SMTL750RM2UC Smart-UPS SMTL750RM2UC Rack-mountable 750VA UPS


General Information

Manufacturer: Schneider Electric SA
Manufacturer Part Number: SMTL750RM2UC
Manufacturer Website Address: www.schneider-electric.com
Brand Name: APC by Schneider Electric
Product Line: Smart-UPS
Product Model: SMTL750RM2UC
Product Name: Smart-UPS SMTL750RM2UC Rack-mountable 750VA UPS
Marketing Information:

Intelligent and efficient network power protection from entry level to scaleable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.

Smart-UPS™ are trusted by millions of IT professionals throughout the world to protect equipment and critical data from costly interruptions by supplying reliable, network-grade power reliably and efficiently. Available in a variety of forms factors and classes (entry level, standard and extended run), there is a model for nearly every application and budget. Standard models are the most popular UPS in the world for business servers, storage and network devices and have long been considered the benchmark for reliability and manageability. Entry level Smart-UPS models are an economical choice for small and medium businesses looking to protect small networking devices, point-of-sale (POS) equipment and entry level servers. The extended run models accept external battery packs for long runtime to power critical servers, security and communication systems through outages that could last hours.

Product Type: Line-interactive UPS

Technical Information

AVR: Yes
Plug/Connector Type: NEMA 5-15P
Receptacles: 6 x NEMA 5-15R
Number of Battery & Surge Outlets: 6
Overload Protection: Yes
Transfer Time: 10 ms
Application/Usage: Router
Application/Usage: Security System
Application/Usage: Server
Application/Usage: Communication System
Application/Usage: Network Device
Application/Usage: Network Hub
Application/Usage: POS Terminal
Application/Usage: Switch

Power Description

Load Capacity: 750 VA/600 W
Input Voltage: 120 V AC
Input Voltage Range: 82 V AC - 144 V AC
Output Voltage: 120 V AC
Input Frequency: 50 Hz to 60 Hz
Output Frequency: 50 Hz to 60 Hz
Waveform Type: Sine Wave
Surge Energy Rating: 680 J


Alarm: On Battery
Alarm: Configurable Delay
Alarm: Low Battery


Status Indicators:

LED status indicators: Quickly understand unit and power status with visual indicators.


Serial Port: Yes
Network (RJ-45): Yes
USB (HID Compliant) Port: Yes

Battery Information

Battery Chemistry: Lithium Ion (Li-Ion)
Backup/Run Time (Full Load): 5.70 Minute
Backup/Run Time (Half Load): 13.80 Minute
Typical Battery Recharge Time: 3 Hour
Hot Swappable: Yes
Replaceable Battery: Yes

Environmental Conditions

Maximum Operating Temperature: 104°F (40°C)
Storage Temperature: -40°F (-40°C) - 95°F (35°C)
Maximum Operating Elevation: 10000 ft
Maximum Storage Elevation: 25000 ft
Operating Humidity: 0% - 95%
Storage Relative Humidity: 0% - 95%
Sound Emission: 41 dB(A)
Thermal Dissipation: 20.51 W

Physical Characteristics

Height: 3.4"
Width: 17.3"
Depth: 12.5"
Rack Height: 2U
Form Factor: Rack-mountable
Weight (Approximate): 34 lb


Package Contents:

  • Smart-UPS SMTL750RM2UC Rack-mountable 750VA UPS
  • CD with Software
  • Documentation CD
  • Installation Guide
  • Rack Mounting Support Rails
  • Smart UPS Signalling RS-232 Cable
  • USB Cable

Software Included: SmartConnect
Environmentally Friendly: Yes
Environmental Certification: RoHS
Environmental Certification: WEEE
Environmental Certification: REACH


Limited Warranty: 5 Year
