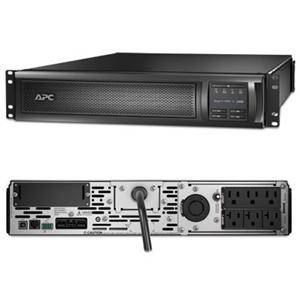

APC SMX2000RMLV2U Smart-UPS X 1920VA Rack-mountable UPS


General Information

Manufacturer: Schneider Electric SA
Manufacturer Part Number: SMX2000RMLV2U
Manufacturer Website Address: www.schneider-electric.com
Brand Name: APC by Schneider Electric
Product Line: Smart-UPS
Product Series: X
Product Model: SMX2000RMLV2U
Product Name: Smart-UPS X SMX2000RMLV2U 1920 VA Rack-mountable UPS
Product Type: Line-interactive UPS

Technical Information

Plug/Connector Type: NEMA 5-20P
Receptacles: 1 x NEMA L5-20R
Receptacles: 3 x NEMA 5-15R
Receptacles: 3 x NEMA 5-20R
Emergency Power OFF: Yes
Transfer Time: 4 ms

Power Description

Load Capacity: 1920 VA/1800 W
Input Voltage: 110 V AC
Output Voltage: 120 V AC


Serial Port: Yes
USB: Yes
Total Number of Expansion Slots: 1

Battery Information

Battery Characteristics: Maintenance-free, Sealed, Spill-proof
Battery Chemistry: Lead Acid
Backup/Run Time (Full Load): 11 Minute
Backup/Run Time (Half Load): 28 Minute
Typical Battery Recharge Time: 3 Hour
Hot Swappable: Yes

Physical Characteristics

Height: 3.3"
Width: 17"
Depth: 26.3"
Rack Height: 2U
Form Factor: Rack-mountable
Weight (Approximate): 84.77 lb


Package Contents:

  • Smart-UPS X SMX2000RMLV2U 1920 VA Rack-mountable UPS

  • CD with Software

  • Documentation CD

  • Installation Guide

  • Rack Mounting Brackets

  • Rack Mounting Hardware

  • Rack Mounting Support Rails

  • Removable Support Feet

  • Smart UPS Signaling RS-232 Cable

  • USB Cable

Certifications & Standards:

  • BSMI

  • CSA

  • EN 50091-2

  • EN 55022 Class A

  • FCC Part 15 Class A

  • NOM

  • TUV

  • UL 1778

  • VCCI Class A

  • UL 1449

Environmentally Friendly: Yes
Environmental Certification: REACH
Environmental Certification: RoHS


Limited Warranty: 3 Year
