General Information

Manufacturer: Schneider Electric SA
Manufacturer Part Number: SRT10KRMXLT
Manufacturer Website Address: www.schneider-electric.com
Brand Name: APC by Schneider Electric
Product Line: Smart-UPS On-Line

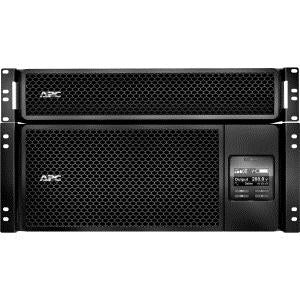

Product Name: Smart-UPS SRT 10000VA RM 208V
Marketing Information:

A versatile UPS developed for the harshest power conditions in the world.
Smart-UPS On-Line provides high density, true double-conversion on-line power protection for servers, voice / data networks, medical labs, and light industrial applications. Capable of supporting loads from 1 to 20kVA in a rack/tower convertible form, the Smart-UPS On-Line is available from 2U to 12U. Recent family extensions at 15 and 20kVA enable support of power hungry blade servers or heavily loaded equipment racks. When business-critical systems require runtime in hours, not minutes, Smart-UPS On-Line can be configured with matching battery packs to comply with aggressive runtime demands. The included PowerChute management software provides unattended graceful shutdown of network operating systems. All models 5kVA and above include an integrated Network Management Card for remote management (optional on models below 5 kVA). The Smart-UPS On-Line family provides customers with a reliable source of uninterruptible power even in demanding power environments, including very wide input voltage window, extremely tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.

Product Type: Dual Conversion Online UPS

Technical Information

Receptacles: 2 x NEMA L6-30R
Receptacles: 4 x NEMA L6-20R
Receptacles: 1 x Hard Wire 3-wire (2PH + G)

Power Description

Load Capacity: 10000 VA/10 kW
Input Voltage: 208 V AC
Output Voltage: 208 V AC

Battery Information

Backup/Run Time (Full Load): 4 Minute
Typical Battery Recharge Time: 1.50 Hour

Physical Characteristics

Height: 10.4"
Width: 17"
Depth: 28.2"
Rack Height: 6U
Form Factor: Rack-mountable
Weight (Approximate): 246 lb


Package Contents:

  • Smart-UPS SRT 10000VA RM 208V

  • CD with Software

  • Documentation CD

  • Installation Guide

  • Rack Mounting Brackets

  • Rack Mounting Hardware

  • Rack Mounting Support Rails

  • Temperature Probe

  • USB Cable

  • Warranty Card

Energy Star: Yes
Environmentally Friendly: Yes
Environmental Certification: REACH
Environmental Certification: ENERGY STAR
Environmental Certification: RoHS


Limited Warranty: 3 Year
