Atlona® AT-OME-EX-WP-KIT Omega 4K/UHD HDMI Over HDBaseT TX Wallplate/RX with USB, Control & PoE


Easy BYOD and Conferencing for Huddle Rooms.

HDMI and USB extender.

Bring together the best of both worlds.

Ready for Zoom, Skype for Business, Microsoft Teams, Cisco Webex, BlueJeans, GoToMeeting, and more.

Enhance collaboration and productivity with your preferred UC platform..

Great for interactive displays too.

Deliver remote mouse and keyboard control with ease.

Additional Features

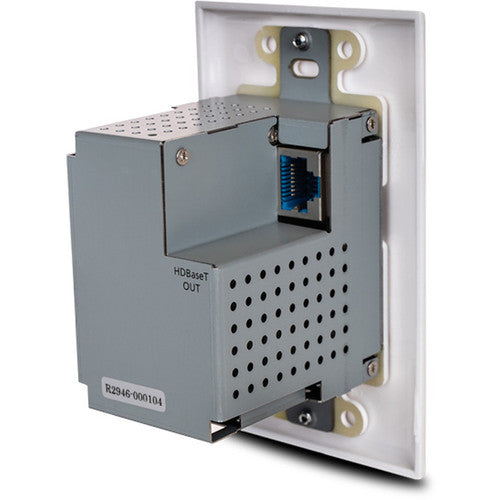

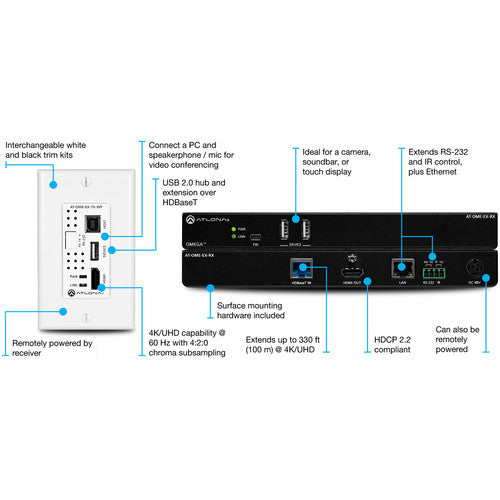

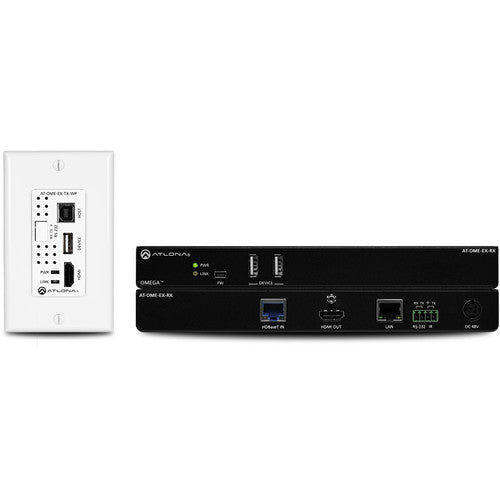

The Atlona AT-OME-EX-WP-KIT is an HDBaseT extender with wallplate transmitter, for video, control, and USB over distances up to 330 feet (100 meters). The OME-EX-WP-KIT is part of the Omega™ Series of integration products for modern AV communications and collaboration.

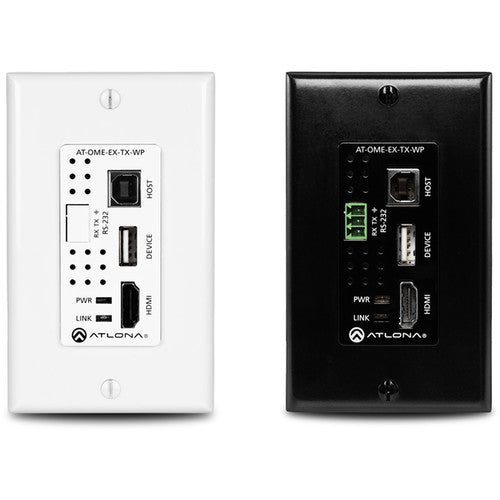

White or black wallplate

The wallplate transmitter for the OME-EX-WP-KIT includes interchangeable white and black trim kits, so you can choose what best matches the environment.

Easy to install discreetly

The wallplate transmitter can be installed on a wall, in furniture, or hidden within a floor box. The low-profile receiver can easily be concealed behind a wall-mounted display or above a projector.

Remote device powering

The transmitter is powered remotely by the receiver over the HDBaseT cable link. This greatly simplifies installation at a wall or any other location, without the need for local AC power.

Extend RS-232 control

The OME-EX-WP-KIT extends RS-232 control signals over HDBaseT, offering numerous possibilities for remotely interfacing a source or display with a control system.

  • Connectivity Technology: Wired
  • Number of Input Devices Supported: 1
  • Number of Output Devices Supported: 1
  • Maximum Operating Distance: 330 ft
  • Graphics Modes: 4K
  • Maximum Video Resolution: 4096 x 2160
  • Network (RJ-45): Yes
  • HDMI In: Yes
  • HDMI Out: Yes
  • USB: Yes
  • Number of Network (RJ-45) Ports: 3
  • Number of USB Ports: 5
  • Number of HDMI Inputs: 1
  • Number of HDMI Outputs: 1
  • Media Type Supported: Twisted Pair
  • Twisted Pair Cable Standard: Category 7
  • Transmitter Height: 4.07"
  • Transmitter Width: 1.80"
  • Transmitter Depth: 2.64"
Manufacturer Atlona Technologies
Manufacturer Part Number AT-OME-EX-WP-KIT
Manufacturer Website Address
Brand Name Atlona
Product Line Omega
Product Name Wallplate HDBaseT TX/RX for HDMI with USB
Product Type Video Extender Transmitter/Receiver
Connectivity Technology Wired
Number of Input Devices Supported 1
Number of Output Devices Supported 1
Maximum Operating Distance 330 ft
Graphics Modes 4K
Maximum Video Resolution 4096 x 2160
Network (RJ-45) Yes
HDMI Out Yes
Number of Network (RJ-45) Ports 3
Number of USB Ports 5
Number of HDMI Inputs 1
Number of HDMI Outputs 1
Media Type Supported Twisted Pair
Twisted Pair Cable Standard Category 7
Transmitter Height 4.07"
Transmitter Width 1.80"
Transmitter Depth 2.64"
Receiver Height 1.02"
Receiver Width 8.62"
Receiver Depth 5.98"
Form Factor Wall Plate
Transmitter Weight (Approximate) 6.35 oz
Receiver Weight (Approximate) 1.92 lb
Package Contents 1 x Transmitter 1 x Receiver
Environmentally Friendly Yes
Environmental Certification RoHS
Limited Warranty 10 Year
Model Number AT-OME-EX-WP-KIT
Brand Atlona
Category Signal Distribution/UTP Extension
UPS Shippable Y
Shipping Weight 4
UPC Code 846352006358
