Atlona® AT-OME-SR21 Omega Soft Video Conferencing HDBaseT receiver with Scaler


An HDBaseT Receiver for 4K and Collaboration.

4K upscaling and downscaling.

Seamlessly incorporate 4K and HD into any system.

Built-in USB hub and extender.

Simple USB integration for software video conferencing.

Display control and automation.

Effortless system operation with no user intervention.

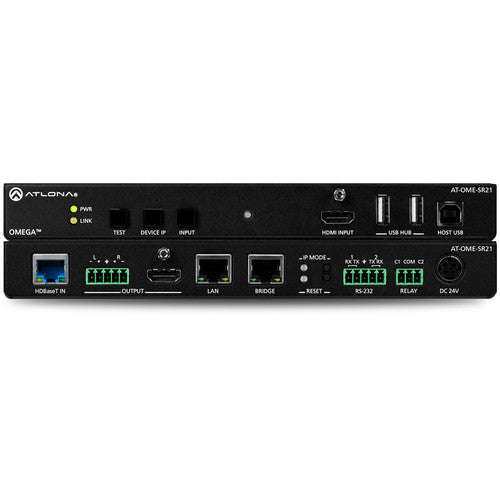

The Atlona AT-OME-SR21 is an HDBaseT receiver and 4K/UHD scaler with a local HDMI input. Part of the Omega™ Series of integration products for modern AV communications and collaboration, the OME-SR21 receives HDBaseT for video, control, Ethernet, and USB.

Additional Features

Local HDMI input included

This HDBaseT receiver includes an additional HDMI input - a convenience whenever there's a PC or wireless collaboration gateway to be installed near the display.

Two-port network switch

This is a simple but integration-friendly feature that lets you interface IP control between an AV LAN (or control processor), the display, and an upstream AV switcher over HDBaseT.

Audio de-embedding

The OME-SR21 features analog balanced stereo output, for de-embedding two-channel audio from any source and delivering to a sound system. A five-band EQ is included to fine-tune the audio.

Internal test patterns

Three internally generated test patterns are available to facilitate display setup, validate system performance, and provide a quick signal source for troubleshooting cabling or display issues.

  • Connectivity Technology: Wired
  • Number of Output Devices Supported: 1
  • Maximum Operating Distance: 328.08 ft
  • Graphics Modes: 4K
  • Maximum Video Resolution: 4096 x 2160
  • Network (RJ-45): Yes
  • HDMI In: Yes
  • HDMI Out: Yes
  • USB: Yes
  • Number of Network (RJ-45) Ports: 3
  • Number of USB Ports: 3
  • Number of HDMI Inputs: 1
  • Number of HDMI Outputs: 1
  • Media Type Supported: Twisted Pair
  • Twisted Pair Cable Standard: Category 7
  • Receiver Height: 1.02"
  • Receiver Width: 8.62"
  • Receiver Depth: 5.98"
  • Receiver Weight (Approximate): 1.96 lb
Manufacturer Atlona Technologies
Manufacturer Part Number AT-OME-SR21
Manufacturer Website Address
Brand Name Atlona
Product Line Omega
Product Model OME-SR21
Product Name Scaler for HDBaseT and HDMI with USB
Product Type Video Extender Receiver
Connectivity Technology Wired
Number of Output Devices Supported 1
Maximum Operating Distance 328.08 ft
Graphics Modes 4K
Maximum Video Resolution 4096 x 2160
Network (RJ-45) Yes
HDMI Out Yes
Number of Network (RJ-45) Ports 3
Number of USB Ports 3
Number of HDMI Inputs 1
Number of HDMI Outputs 1
Media Type Supported Twisted Pair
Twisted Pair Cable Standard Category 7
Receiver Height 1.02"
Receiver Width 8.62"
Receiver Depth 5.98"
Receiver Weight (Approximate) 1.96 lb
Model Number AT-OME-SR21
Brand Atlona
Category Signal Distribution/UTP Extension
UPS Shippable Y
Shipping Weight 0.1
UPC Code 846352006020
