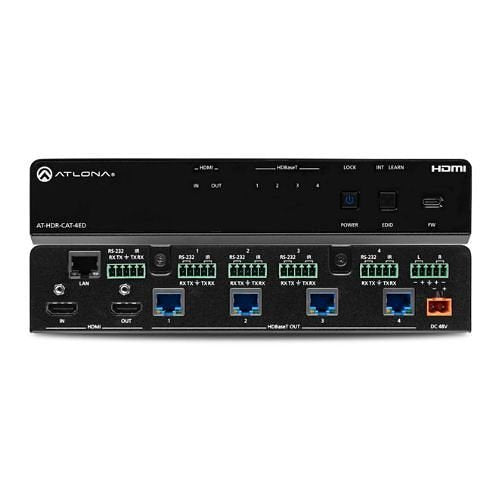

Atlona AT-HDR-CAT-4ED 4K 4 Output Extended Distance HDR/HDMI to HDBaseT Distribution Amplifier


Product Overview

The Atlona AT-HDR-CAT-4ED is a high dynamic range (HDR) distribution amplifier with one HDMI® input and four extended distance HDBaseT™ outputs. Each output transmits 4K/UHD video 60 Hz with 4:4:4 chroma sampling plus support for HDR formats, multi-channel audio, Ethernet, control signals, and power up to 330 ft. (100 m) over Category 6/6A cable. The HDR-CAT-4ED features sophisticated integration capabilities designed for commercial AV distribution applications including HDMI pass-through, audio de-embedding, EDID management, CEC display control, RS-232 and IR control extension, remote power for receivers, and HDBaseT link testing. It offers compatibility with any TCP/IP or RS-232 control system and is housed in a 1U, half-rack width enclosure with external universal power supply. The HDR-CAT-4ED is ideal for sending HDR and 4K/60 4:4:4 content to AT-HDR-EX-100CEA-RX receivers. The HDR-CAT-4ED is part of a family of 4K HDR HDMI to HDBaseT distribution amplifiers that also includes the HDR-CAT-2 two output, HDR-CAT-4 four output, and HDR-CAT-8 eight output models.

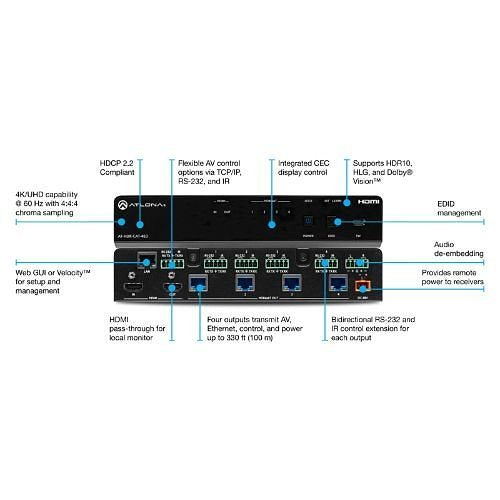

Main Features
  • 4K HDR distribution amplifier with one HDMI input and four extended distance HDBaseT outputs
  • Pass-through HDMI output to support local monitor
  • 4K/UHD capability at 60Hz with 4:4:4 chroma sampling
  • Supports HDR10, HLG, and Dolby® Vision™ HDR formats
  • Features visually lossless compression with no latency to enable HDR and 4K/60 4:4:4 video signal extension over HDBaseT
  • HDBaseT outputs extend HDMI, control signals, and power up to 130' for 4K HDR or 230' for 1080p with Category 6/6A
  • Bidirectional RS-232 and IR control extension for each output
  • Remotely powers compatible receivers over HDBaseT
  • CEC display control sends display power on/off commands to the pass-through HDMI output and HDBaseT receiver HDMI outputs using the power button, IP, or RS-232
  • Audio de-embedding to balanced analog output with volume control for integration with a separate audio system
General Information
Name: Atlona AT-HDR-CAT-4ED 4K 4 Output Extended Distance HDR/HDMI to HDBaseT Distribution Amplifier, Atlona
Category: Atlona, Pro AV, Commercial Audio, Pro Amplifiers
Country of Origin: Taiwan. Country of origin is subject to change.
