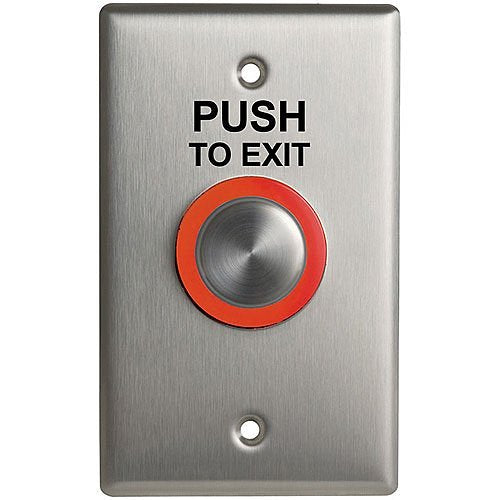

Camden CM-9600/7 Illuminated Piezoelectric 'Request to Exit Button', Stainless Steel Faceplate, Single Gang

$175.00

Product Overview


Camden Door Controls, CM-9600 and CM-9610 Series flush mount illuminated piezo push switches offer high visibility and weather/vandal resistance. The units feature a heavy duty stainless steel faceplate and adjustable 40 second timer. The CM-9600 is single gang (2 3/4”) width and the CM-9610 is only (1 3/4”) wide, perfect for door frames or narrow areas. The large 1” round diameter button is easy to activate. Illumination and power relay is 12 to 24V DC.

Switch illumination is jumper selectable for On, Off and Red, Green or non-lit operation. Field selectable for N/O, N/C contacts and fail safe/fail secure operation.

Main Features
  • Rugged Stainless Steel Face Plate. Red and/or green illumination
  • (1) N/C & (1) N/O Contacts, Rated 2 Amps @ 24 VDC
  • Adjustable 0 - 40 Second Hold Open Timer
  • Laser etched faceplate graphics
  • 3 Yr. Warranty
  • 1" Button Diameter
  • Push To Exit Button Text
General Information
Name: Camden CM-9600/7 Illuminated Piezoelectric 'Request to Exit Button', Stainless Steel Faceplate, Single Gang, Camden Door Controls, Camden Door Controls
Category: Camden Door Controls, Access Control, Egress Devices, Request to Exit Devices
UPC Code: 670454157003
Country of Origin: United States. Country of origin is subject to change.
