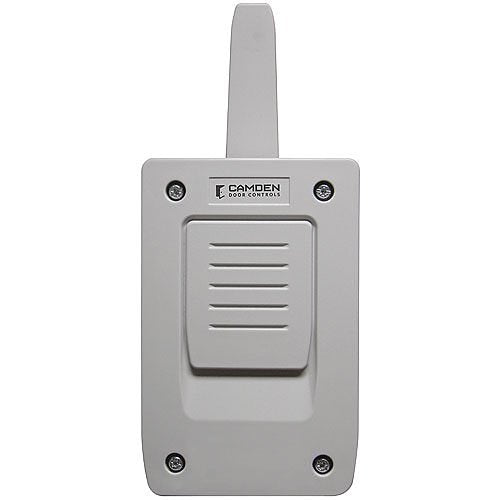

Camden CV-WRX4 4-Channel Wiegand Receiver

$293.90

Product Overview


Camden’s Wiegand receivers are designed to interface with existing access control systems for both long and short access applications. CV-WRX4 receiver is designed for use with Camden CV-WTX2 transmitters.

The transmitter signal is codified in two different protocols according to its configuration: Wiegand 26 and Wiegand 37. The receiver provides facility codes 1 to 255 by DIP switch J9 using 8 bit binary configuration.

Main Features
  • Includes: (1) CV-WRX4 868.35 Mhz. Receiver, (2) #6 x 1-1/4" Screws, (2) #6 Wall Plugs, (1) Cable Plug
  • 4 channel receiver with in/out parking gate control
  • Multiprotocol receiver, 26 and 37 bit Wiegand
  • Facility codes, 1 to 255
  • High security rolling code, 19 trillion combinations
  • Weather and vandal resistant enclosure
  • Input Voltage: 12 VDC
  • Current: 4mA typical / 36mA peak
  • IP Rating: CV: IP54 (IP65 with cable plug installed)
  • Dimensions: 3-1/4"W x 7-3/8"H x 1-5/8"D (82mm x 187mm x 42mm)
General Information
Name: Camden CV-WRX4 4-Channel Wiegand Receiver, Camden Door Controls
Category: Camden Door Controls, Access Control, Access Barriers & Crowd Control, Gate Remote Transmitters
UPC Code: 670454209993
Country of Origin: Spain. Country of origin is subject to change.
