The ATRIUM access control system redefines ease of use and performance. ATRIUM allows you to manage up to 500 doors, proximity card readers, keypads or Schlage® wireless door handles. Setup of these devices is a breeze with ATRIUM’s FREE software. The embedded web server provides instant results using any web browser, smartphone or tablet.

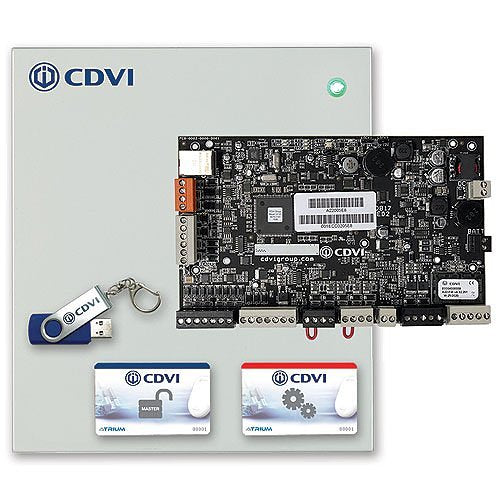

The A22 is ATRIUM’s powerful Web-Based IP hybrid module. The flexibility of the A22 module allows it to be set either as a 2-door controller or expander (2 in 1).
- Controls 2 doors and 2 readers
- Pre-assembled universal plug-in power supply (120V/240V) included
- Convert any A22 door controller to an A22EC elevator controller by simply updating the firmware for free (up to 256 floors).
- On-board Ethernet Port with AES 256-bit encryption
- On-board RS485 communication bus, 1220 m (4000 feet)
- On-board Embedded Web Server
- Lock outputs: 2 (750mA @ 12VDC/each)
- Relay Outputs: 2 Form C relays (Dry Contact) 5A @ 250VAC,7A @ 125VAC, 7A @ 30VDC
- 6 multi-purpose inputs (12 using zone doubling)
- Up to 10,000 users, cards and 25,000 even buffer
- Get secure, reliable and affordable access to the doors in your building with this door access control system
- Suitable for controlling door security
Name: CDVI A22 Atrium Hybrid 2-Door Access Control Panel, CDVI Group, CDVI
Category: CDVI, Access Control, Control Panels, Control Panels
Country of Origin: Canada. Country of origin is subject to change.
