CLEERLINE SSF™ 6 STRAND OM3 RUGGED MICRO DISTRIBUTION INDOOR/OUTDOOR - 1000FT SPOOL [6RMD50125OM3R]

$2,999.99

Details

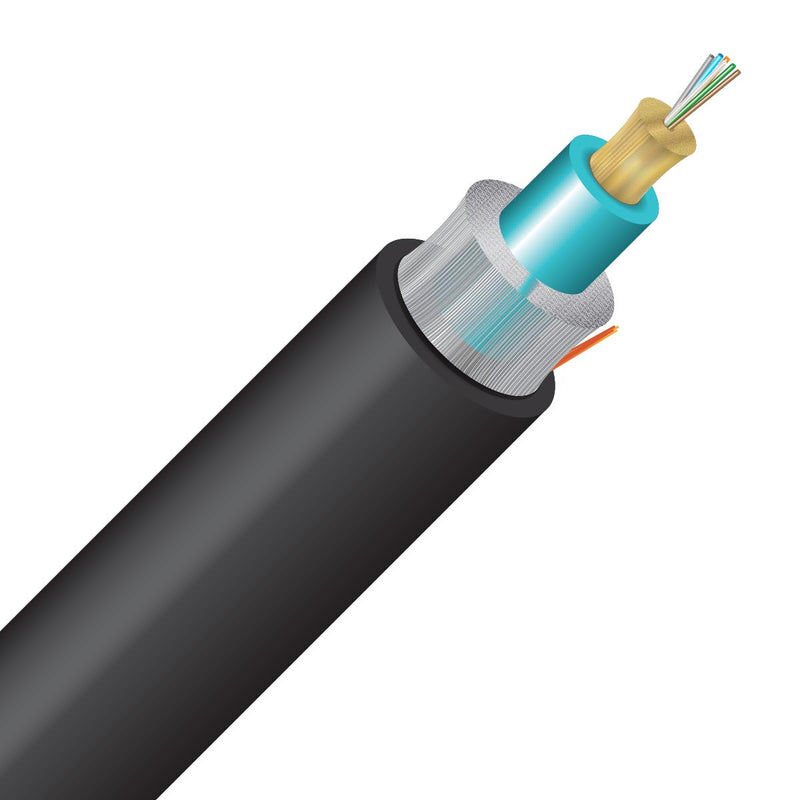

Cleerline SSF™6 Strand Fiber Rugged Micro Distribution cable is composed of a 3.0mm distribution style SSF™ cable subunit within an overall Riser rated PVC jacket.

SSF™ Rugged Micro Distribution is ideal for installation outdoors in ducts or indoors in riser spaces and tray installations. This cable incorporates an additional layer of fiberglass yarns for strength. SSF™ Rugged Micro Distribution is also rodent resistant.

Cleerline SSF™ Micro Distribution Multimode is fully compatible with all common connector systems for standard 50/125 multimode fiber.

The included SSF™ fiber provides extreme durability and strength.

FEATURES AND BENEFITS
  • High mechanical strength, superior fatigue (nD = 30)
  • Compatible with common connector systems for 50/125 multimode
  • Up to 10,000x the bend longevity of traditional fiber
  • Integral SSF™ coating provides glass protection
  • Dielectric construction
  • Exclusive 250 µm Soft Peel acrylate
  • Rodent resistant
  • O.D. 6.1mm

APPLICATIONS
  • Installation in ducts outdoors
  • Riser space and tray installations
  • ETL listed type OFNR
  • ANSI/TIA-568-C.3 compliant

CONSTRUCTION PHYSICAL DATA Storage Temperature Range -40°C to +70°C Operating Temperature Range -40°C to +70°C Installation Temperature Range -20°C to +55°C Max Tensile Load (Installation) 1000 N (225 lbf) Max Tensile Load Long Term 500 N (112 lbf) Min. Bend Radius, Unloaded 1 x O.D. Cable Outside Diameter, Nominal 6.1 mm Cable Package 1000 ft Reel or customer request, spooled Rating FT4 - Riser Crush Resistance (TIA/EIA 455-41A) 100 kgf / mm Impact Resistance (TIA/EIA 455-25B) 1500 impact cycles Flexing @ 90 degrees (TIA/EIA 455-104A) 2000 flexing cycles FIBER Fibers 2-12 Type 50/125 Multimode OM3 Coating 250 µm “Soft Peel” S-Type Coating Color Coding Per TIA/EIA 598C ENVIRONMENTAL CHARACTERISTICS Temperature Dependence, 850 nm and 1300 nm ≤ 0.5 dB / km Induced Attenuation -60°C to + 85°C Watersoak Dependence, 850 nm and 1300 nm ≤ 0.5 dB / km Induced Attenuation at 20°C for 30 days Damp Heat Dependence, 850 nm and 1300 nm ≤ 0.5 dB / km Induced Attenuation at 85°C, 85% R.H., 30 days Dry Heat Dependence, 850 nm and 1300 nm ≤ 0.5 dB / km Induced Attenuation at 85°C, 30 days OPTICAL CHARACTERISTICS Attenuation Coefficient 850 nm ≤ 3.0 dB/km 1300 nm ≤ 1.0 dB/km Numerical Aperture 0.200 ± 0.015 Overfilled Modal Bandwidth 850 nm ≥ 1500 MHz · km 1300 nm ≥ 500 MHz · km High Performance EMB 850 nm ≥ 2000 MHz · km PHYSICAL CHARACTERISTICS Core Diameter 50.0 ± 2.5 µm Core Non-circularity ≤ 6% Core / Hybrid Cladding Concentricity Error ≤ 3.0 µm Hybrid Cladding Diameter 125 ± 0.7 µm Hybrid Cladding NonCircularity Error ≤ 3.0% Soft Peel Jacket Identifier 250 ± 0.7 µm Coating Strip Force 100 g Fiber Curl ≥ 2 m Proof Test 100 kpsi Dynamic Fatigue 23°C, 41% R.H. > 30 nD Bend Induced Attenuation, 1300 nm 100 turns around 75 mm diameter mandrel ≤ 1.0 dB Length 1.0 - 8.8 Km BACKSCATTER CHARACTERISTICS Attenuation Directional Uniformity ≤ 0.05 dB/km Attenuation Uniformity ≤ 0.05 dB/km Group Index of Refraction 850 nm 1.481 1300 nm 1.476 JACKET Type Riser Rated PVC + UV (Indoor/Outdoor) Color Black Outer Diameter 6.1 mm Subunit 3.0 mm, Aqua PVC + UV Markings Sequential Foot Markings Strength Member Kevlar (Plenum + water blocking yarns) Circumferential Strength Member Fiberglass yarns COMPLIANCE ETL Listed Type OFNR, CSA FT4, IECA S-83-596. RoHS Compliant Directive 2011/65/EU SSF™ conforms to the requirement of IEC 60793- 2-10 A1a, ISO/IEC 11801 & ITU-T G.651.1 850 nm Laser-Optimized 50 µm core multimode fiber for 10 Gb/s and above applications.
