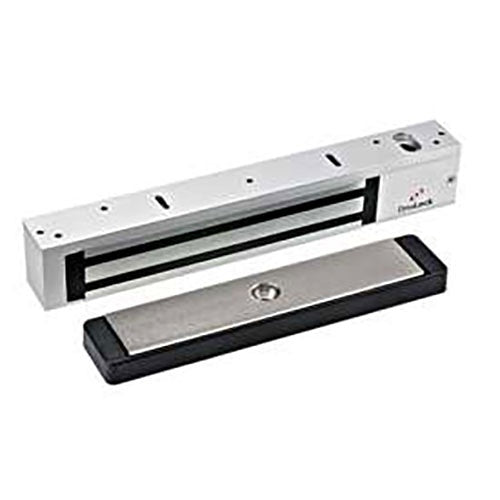

DynaLock 2280-DSM 2280 Series Single SlimLine Electromagnetic Lock for Outswing Door with DSM, Satin Aluminum

The new DynaLock 2280 Series joins our popular 2268 Series as an upscale, low pro¿ le 1,200 lb. holding force maglock. The 2280 features a reduced length, low pro¿ le seamless housing, milled from a solid aluminum billet. The one-piece housing offers superior resistance to moisture intrusion. An adjustable mounting plate offers staggered mounting screw holes to enhance mounted stability. Ease of wiring and selection of options is facilitated by a replaceable built-in circuit board.

Incorporated in the overall design is a new highimpact plastic armature housing. The housing includes concealed rare-earth disc magnets at each end, when the optional door status feature is ordered.This eliminates misorientaition of the housing, when mounted. The housing fully captures the armature, elinates this need for anti-spin pins. In addition, the housings incorporate foam pads to help of the armature engaging the lock face.

Typical applications for the 2280 include commercial, industrial and institutional openings where maximum security and durability is required. With a low 2-1/16" profile, the 2280 is ideal for opening Heights of 7' -0" or the less to facilitate code compliance on designated egress doors.
