Electro-Voice EVID-C6.2 6.5" Two-Way Ceiling Loudspeaker, White

$589.00

Product Overview

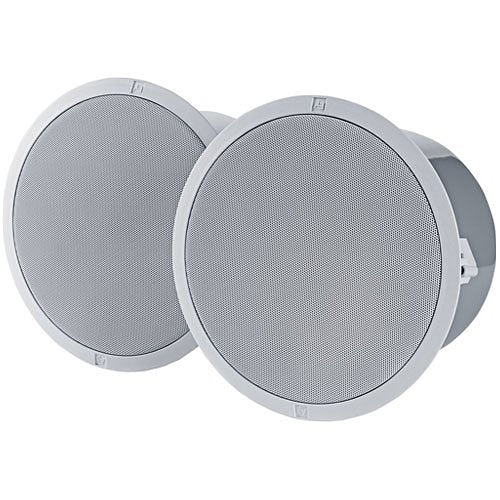

The Electro-Voice EVID-C6.2 loudspeaker system is a complete two-way ceiling loudspeaker. The package consists of a bezel assembly, grille, rear enclosure, 6.5-inch coax two-way loudspeaker and internal linematching transformer. The loudspeaker features a waveguide coupled titanium coated dome tweeter. The EVID-C6.2 loudspeaker utilizes a 2nd order crossover network at 2.5 kHz, with a comprehensive protection circuit to protect the network, woofer, and tweeter drivers from excessive power levels. The EVID-C6.2 utilizes a transformer that offers a selection of 1.88 (70-V only), 3.75, 7.5, 15W or 30 watts delivered to the loudspeaker system using either 70-V or 100-V lines, or 8 ohm bypass. Selection is via a convenient switch on the front baffle. The perforated grille is finished in semi-gloss white powder-coated enamel. The baffle and bezel are constructed from UL 94V-0 rated ABS.

The rear enclosure is constructed from zinc-plated, heavy gauge steel. The low profile enclosure makes it easy to mount in very tight spaces. A rear cover, with provisions for a junction box fitting, provides access to a 4-pin terminal block that allows direct connection to the speaker with 12 gauge wire and provides pass through to additional speakers. A tile bridge is included for safe suspension of the EVID-C6.2 ceiling systems in a drop ceiling that uses mineral wool, or other fiber-based ceiling tiles. The EVID line of ceiling speakers has been designed to work together as a complete system in a wide range of different ceiling constructions. They provide wide dispersion, highefficiency, high-maximum output, ease of installation, and wide-range reproduction of music or voice.

Main Features
  • The 2-way Ceiling Mountable speakers provide the finest sound coverage
  • Hear low subs and soaring vocals with a frequency range of sound from 50 Hz-20 kHz
  • 8 Ohm impedance extracts maximum power so you will get more output from your speakers
General Information
Name: Electro-Voice EVID-C6.2 6.5" Two-Way Ceiling Loudspeaker, White, The Bosch Group, Electro-Voice by Bosch
Category: Electro-Voice by Bosch, Pro AV, Commercial Audio, Pro Speakers
UPC Code: 800549889537
Country of Origin: China. Country of origin is subject to change.
