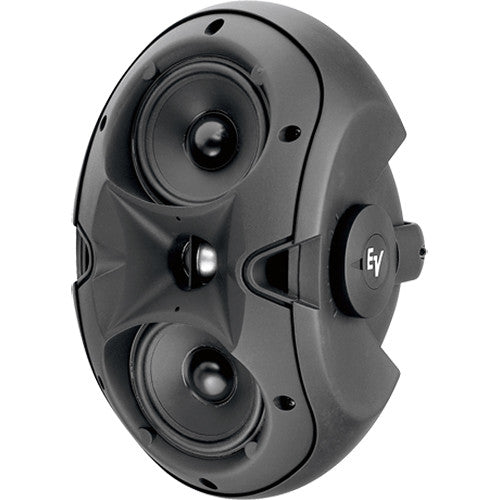

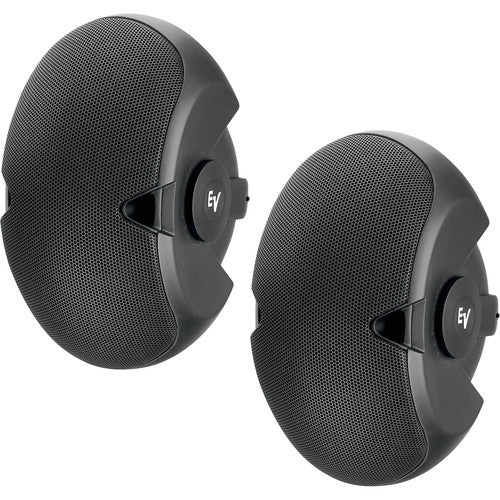

Electro-Voice F.01U.117.530 EVID4.2T Compact Full-Range Multi-Use Speaker System with Dual 4" Woofers & 1" Tweeter (Pair, Black)



The ElectroVoice EVID 4.2 is a full-range installation speaker, sold as a pair, and suitable for use in bar, bistro, retail, and outdoor venues where space is limited. The dual 4" woofers offer the bass response of a much larger speaker, and the 1" waveguide-coupled titanium tweeter delivers controlled mid and high frequency reproduction. The speaker offers a 200-Watt power handling capacity, and is equipped with a transformer for 70V/100V use.

The proprietary cast-aluminum SAM(Strong-Arm Mount) assembly for the EVID 4.2 allows for flexible placement and directivity in surface or ceiling mounting design, and the weather-resistant enclosure and magnetic driver shielding allow for reliable outdoor placement and close proximity use with video or computer monitors.


  • Rugged surface-mount weather-resistant installation monitor in black finish
  • Equipped with 70V/100V transformer
  • Dual 4" woofers with magnetic shielding for extended low end reproduction and close proximity use with video and computer monitors
  • 1" Coherent Coverage Waveguide Horn tweeter for even dispersion of mids and highs
  • Titanium dome tweeter with neodymium magnets
  • Dual bass ports for greater low end clarity and definition
  • Treated woofer cones, durable zinc-plated steel grille
  • Cast aluminum Strong-Arm Mount(SAM) with 100° of swing and 90° of rotation positioning options
  • Frequency Response   1(-10 dB) 65Hz - 20kHz
  • Power Handling   2 200W Cont. Prog./400W Peak
  • Sensitivity   3 89 dB, 1W/1m
  • Impedance   8 ohms
  • Max SPL   113 dB
  • Horizontal Coverage   4 120°
  • Vertical Coverage   4 80°
  • Crossover Frequency   2.2 kHz
  • LF Transducer   2 x 4” (100 mm)
  • HF Transducer   1” (25 mm)
  • Protection   Full System
  • Weather Resistance   Meets Mil Spec 810 humidity, salt spray, temperature and UV, and IEC 529 IP 34 splashproof ratings
  • Swing x Rotation   100° x 90°
  • Terminals   Phoenix Connector
  • Enclosure Material   ABS (paintable)
  • “t” Version Wattage Taps   70V: 3.75 W 70V/100V: 7.5W, 15W, 30W, 8 ohm bypass
  • Dim (H x W x D)   12.2” x 6.9" x 8.5” (234 mm x 127 mm x 165 mm)
  • Net Weight (each)   8.5 lbs (3.9 kg)
  • Shipping Weight (pair)   19 lbs (8.6 kg)
  • Included Accessories   SAM™, hex key
