Electro-Voice F.01U.117.606 EVID Series 8in 2-Way Coaxial Loudspeaker Ceiling System

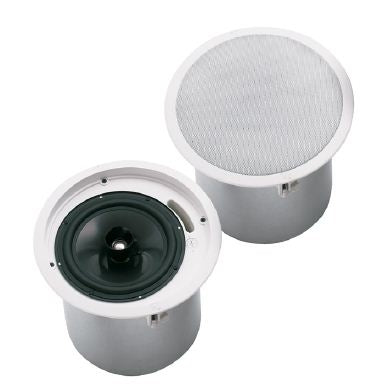

The Electro-Voice ® EVID C8.2LP loudspeaker system is a complete two-way ceiling loudspeaker in a low profile package. The package consists of a bezel assembly, grille, rear enclosure, 8-inch coax two-way loudspeaker and internal line-matching transformer. The loudspeaker features a waveguide coupled titanium coated dome tweeter. The EVID C8.2LP loudspeaker utilizes a 2 nd order crossover network at 2.5 kHz, with a comprehensive protection circuit to protect the network, woofer, and tweeter drivers from excessive power levels. The C8.2LP utilizes a transformer that offers a selection of 1.88 (70-V only), 3.75, 7.5, 15 or 30 watts delivered to the loudspeaker system using either 70-V or 100-V lines, or 8 ohm bypass. Selection is via a convenient switch on the front baffle. The perforated grille is finished in semi-gloss white powder-coated enamel. The baffle and bezel are constructed from UL 94V-0 rated ABS. The rear enclosure is constructed from zinc-plated, heavy gauge steel. The low profile enclosure makes it easy to mount in tight spaces. A rear cover, with provisions for a junction box fitting, provides access to a 4-pin terminal block that allows direct connection to the speaker with 12 gauge wire and provides pass through to additional speakers. A tile bridge is included for safe suspension of the C8.2LP ceiling systems in a drop ceiling that uses mineral wool, or other fiber-based ceiling tiles. The EVID line of ceiling speakers has been designed to work together as a complete system in a wide range of different ceiling constructions. They provide wide dispersion, high-efficiency, high-maximum output, ease of installation, and wide-range reproduction of music or voice.

Key Features

  • Low Profile 8" coaxial two-way
  • Waveguide coupled Ti Tweeter
  • Full bandwidth overload protection
  • Front baffle wattage tap adjustment
  • Integrated low loss matching transformer allows for either 70v/100v or 8-ohm operation
  • Includes tile bridge and mounting ring for easy installation
  • Integrated ported enclosure for extended bass response
  • Ideal for ceiling spaces with tight clearance
  • Freq. Response (-10 dB):   50 Hz - 20 kHz
  • Coverage (Conical):   110°
  • Power Handling:   100 W Cont. / 400 W Peak
  • Sensitivity (SPL 1W/1m):   91 dB
  • Max Calculated SPL:   117 dB
  • Impedance:   8 Ohms nominal (transformer bypass)
  • Network:   Network and transducers protected, 12 dB/oct 2.6 kHz
  • LF Transducer:   8 in. (200 mm) Polypropylene cone
  • HF Transducer:   1 in (25 mm) Ti Mylar laminate
  • Transformer Taps:   70V: 1.88, 3.75, 7.5, 15 or 30W, 100V:   3.75, 7.5, 15 or 30W, Bypass:   8 Ohms
  • Connectors:   Phoenix type removable, with screw terminals and "loop-thru", accepts 12 ga wire
  • Enclosure Material:   Baffle- UL 94V-O rated ABS Backcan-Zinc plated steel
  • Grille:   Perforated powder coated steel with safety tether
  • Support Hardware:   Tile bridge, backing plate support, cutout template, paint shield
  • Dim (H x Dia.):   7.0" x 10.6" (178mm x 270mm)
  • Cutout Size:   10.8" (274mm)
  • Net Weight (each):   11.0 lbs (5.0 kg)
  • Shipping Weight (pair):   24.0 lbs (11.0 kg)
