Electro-Voice F.01U.170.821 ELX Powered 15in 2-Way Full-Range Loudspeaker System



ELX 115P – 15" Two-Way Powered Loudspeaker

A powerful step up from the ELX112P, the 15" woofer and 1000 W amplifier in the ELX115P deliver extended lower frequencies and room-filling volume.

Clear, powerful and musical Electro-Voice loudspeakers command the stage at high-profile venues and major events worldwide. Born stage-ready, the Live X series includes powered and passive models that all feature EV-engineered components in solid wood cabinets. Wherever performance matters, Live X is serious gear for serious sound.

The Electro-Voice Live X powered loudspeakers are fully integrated audio systems with carefully matched electronics and transducers. These products make it easy to setup a high quality sound system quickly with a minimum amount of cables and external electronics.

System Features

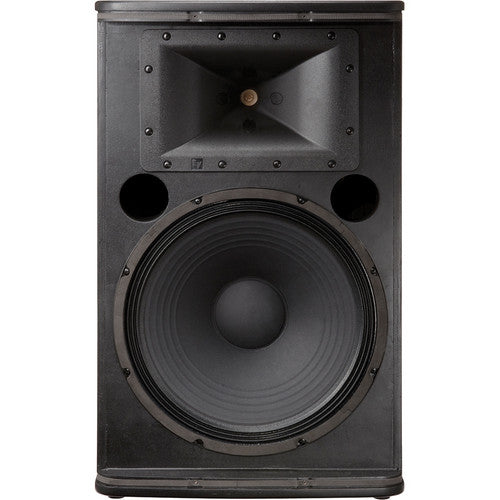

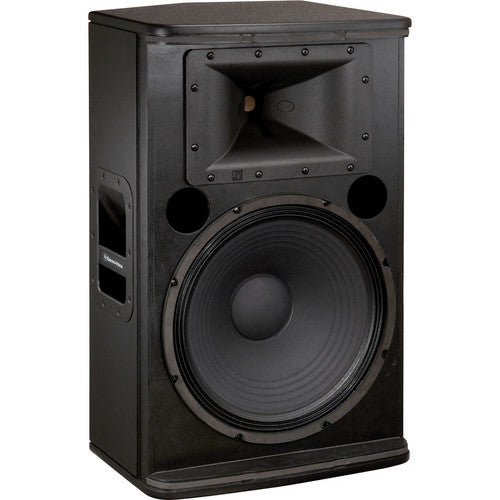

  • DH-1K 39mm (1.5") Titanium Diaphragm Compression Driver
  • EVS-15K 381mm (15") Woofer
  • 44 Hz – 20 kHz Frequency Range; 134 dB Max SPL
  • 1000 W Class D Lightweight Amplifier — Runs Cool without Fans
  • Bi-Amplified Design with 24 dB/Octave Filter Slopes and Transducer Protection
  • Selectable 100 Hz High Pass Filter for Use with an External Subwoofer

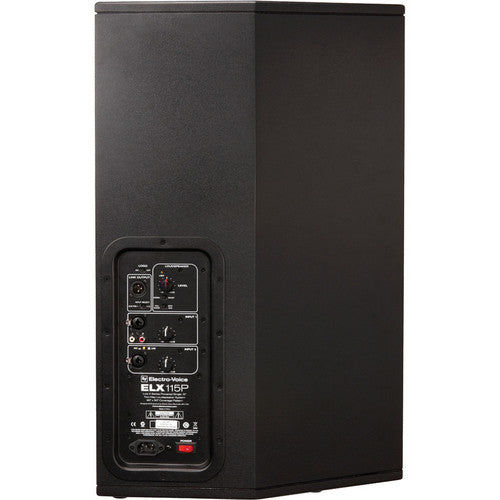

  • Dual XLR and TRS Combo Inputs with Independent Gain Control
  • Stereo RCA Input with Gain Control on Input 1
  • Switchable Mic / Line Modes on Input 2
  • Switchable EQ Modes for Different Applications
  • XLR Parallel Output with Selectable Pre or Post Mix Option
  • Front-Mounted Power LED, Selectable On or Off
  • Indicator Lights for Power on and Limit
  • Pole Mounts or Stacks With Live X Subwoofers
  • High Frequency Waveguide with 90° X 50° Coverage Pattern
  • 15mm Plywood Enclosure, Internally Braced, With Textured Paint

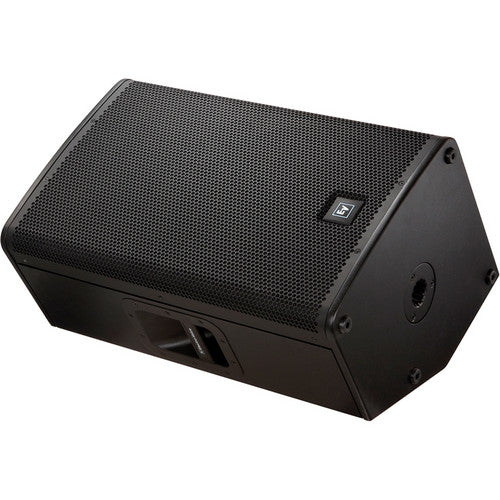

  • 60° Monitor Angle
Case Material 9-ply, 15mm Plywood, Internally Braced, with Texured Paint
Color Black
Nominal Impedance 8 Ω
Power Rating 1000 W
Speaker Type Full-range, mid-high, two-way
Woofer Size 381 mm (15")
Frequency Response (-3 dB) 60 - 20000 Hz
Frequency Response (-10 dB) 40 - 20000 Hz
Internal Crossover Yes
Max. SPL/1m (calc) 132 dB
Coverage (Nominal -6 dB) H 90 °
Coverage (Nominal -6 dB) V 50 °
LF Transducer (1) EVS-15K, 381mm (15") Woofer
HF Transducer DH-1K, 39mm (1.5") Titanium Diaphragm Compression Driver
Crossover Frequency 1.7 k Hz
Connector Type Parallel Neutrik® NL4

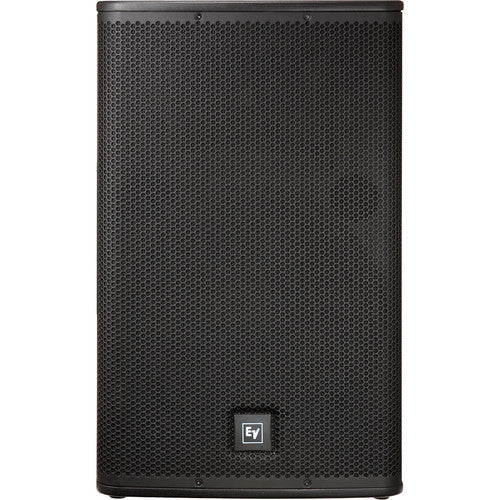

Grill 18GA Steel with Black Powdercoat
Height 708 mm (27.87")
Width 432 mm (17.01")
Depth 382 mm (15.04")
Weight Net 22.5 kg (49.6 lbs)
