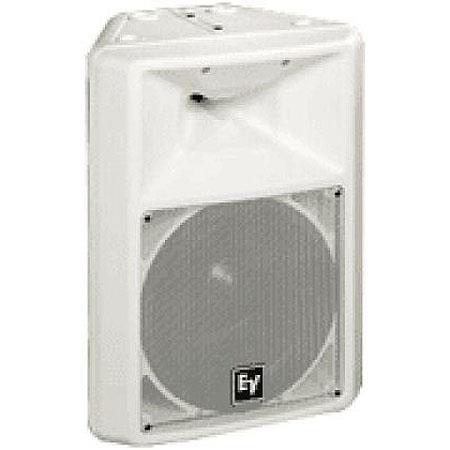

Electro-Voice F.01U.265.561 Sx300E 12" 2-Way 300W Passive Loudspeaker (White)



The Electro-Voice ® Sx300 is a 300-watt, 12-inch two-way, high-efficiency, constant-directivity compact speaker system with Ring-Mode Decoupling (RMD)(TM). Through the extensive use of computer-aided design and modeling, Electro-Voice engineers have developed a state-of-the-art professional loudspeaker system. The high-frequency section of the Sx300 utilizes a molded-in, 65° x 65° constant-directivity horn. This unique pattern contributes to high intelligibility, vocals sound natural yet “cut through” in reverberant, noisy rooms. In addition, the coverage pattern is unusually uniform over its range of operation. Sound quality off axis is very well maintained, even at 45° off axis (a 90° total coverage angle), beyond the rated coverage angle. The horn’s unique, Varipath(TM) throat geometry helps direct driver output to the corners of the room, this helps cover areas of the audience that typically do not recieve good coverage. High-impact polypropylene structural foam provides a stiff and extremely durable lightweight enclosure. Molded into the cabinet are an integral carrying handle and a stand socket for mounting on 1-3/8-inch stands such as the Electro-Voice 100BK. Rubber feet that are attatched to the bottom of the cabinet and mating sockets that are molded into the top provide a means of stacking systems. The trapezoidal-shaped cabinet, in combination with the uniform, 65° x 65° directivity characteristics, make the Sx300 ideal for use alone or in arrays.


  • Ring-Mode Decoupling (RMD)(TM) for increased intelligibility
  • Lightweight, durable polymer enclosure with intregal handles and stand mount
  • EV DL12-BFH 12-inch woofer and DH2010A compression driver for great sound and reliable performance
  • Constant-directivity 65° x 65° high-frequency horn
  • Molded-in attatchment points for secure suspension
  • Dual Neutrik Speakon® high-current connectors
  • Available in White / Black
  • Freq. Range1 (-3 dB):   60 Hz - 20 kHz
  • Freq. Range1 (-10 dB):   50 Hz - 20 kHz
  • Horizontal Coverage:   65° Nominal
  • Vertical Coverage:   65° Nominal
  • Power Handling:   300 Watts Cont., 1200 Watts Peak
  • Sensitivity (SPL 1W/1m):   99 dB
  • Crossover Frequency:   1,500 Hz
  • Nominal Impedance:   8 ohms (5 ohms minimum)
  • LF Transducer:   12" DL12-BFH
  • HF Transducer:   1" Exit DH2010A
  • Connectors:   (2) Neutrik Speakon NL4MP
  • Enclosure Material:   Polypropylene Structural Foam
  • Grille:   Powder Coated Steel
  • Dim (H x W x D):   23.1" x 16.9" x 12.3" (586mm x 429mm x 312mm)
  • Net Weight:  32 lbs (14.5 kg)
  • Shipping Weight:   36 lbs (16.3 kg)
