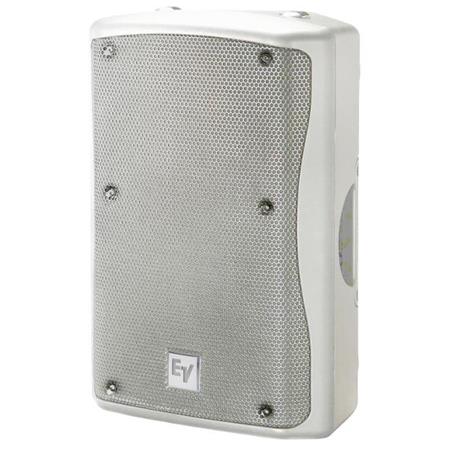

Electro-Voice F.01U.265.584 ZX390W 12in 2-Way Passive Loudspeaker (90°x50°)

$1,099.00

ELECTRO-VOICE F.01U.265.583

The Electro-Voice ZX3-90W is a 2-way P.A. passive loudspeaker with a 600-watt continuous power handling capacity and a 90x50° coverage angle, for wider coverage or shorter distances. The high-tech, high-impact polypropylene enclosure houses a 12" woofer and a 1" Neodymium compression driver with a large 2" voice-coil.

The ZX3-90W cabinet is equipped with 10 integral suspension points for permanent suspension or bracketing, and 3 Anchor Plates for single-stud fittings, with an additional pair of Anchor Plate attachment points on the bottom of the speaker.

Features

  • 2-way 600-watt suspension P.A. speaker with 90x50° coverage for wider coverage or shorter distances
  • High output, 131dB SPL capacity
  • Adjustable feet allow 45° or 55° speaker placement angle for use as stage monitor
  • 12" forced-air-cooled woofer, 1" titanium diaphragm compression driver with 2" voice coil
  • Rugged, high-tech polypropylene enclosure
  • 3 suspension Anchor Plates, 10 M8 insert suspension points
Active or Passive Passive
Frequency Response -10dB:48-20,000Hz
Power Capacity 600W
Maximum Sound Pressure Level (SPL) 131dB
Nominal Sensitivity 97dB
Impedance 8 ohms
Crossover 2KHz
Low Frequency Driver DVX3121, 12" (305mm) Driver
High Frequency Driver ND2, 1" (25.4mm) exit Neodymium
Enclosure Material Polypropylene Structural Foam
Input Connections Neutrik Speakon NL4's x 2
Mounting Options Enclosure has locations for 4 Single-StudAttachment Plates and 10 Forged SteelEyebolts - 2 on Top, 2 on Bottom, 2 onSide, and 1 on Rear of Enclosure
Dimensions 24.14 x 15.64 x 14.26" (613 x 397 x 362mm)
Weight 43.7 lbs (19.8kg)
