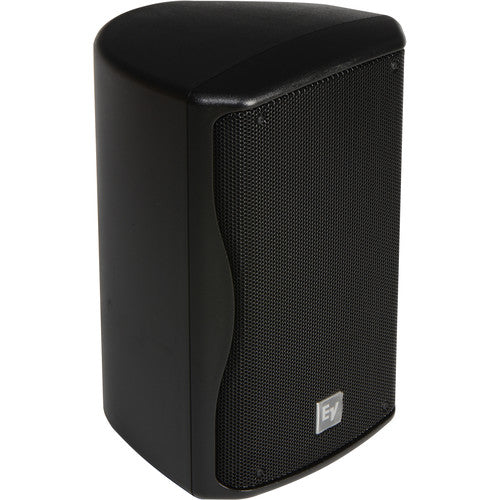

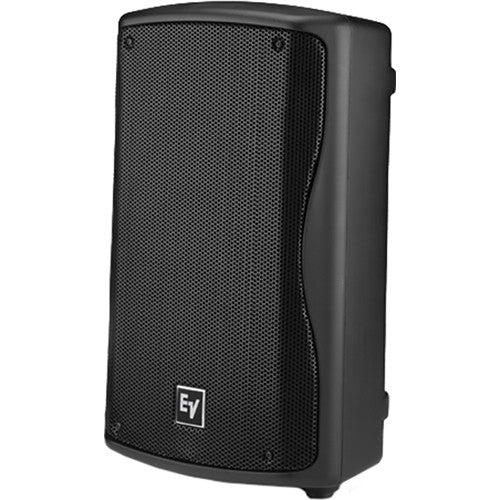

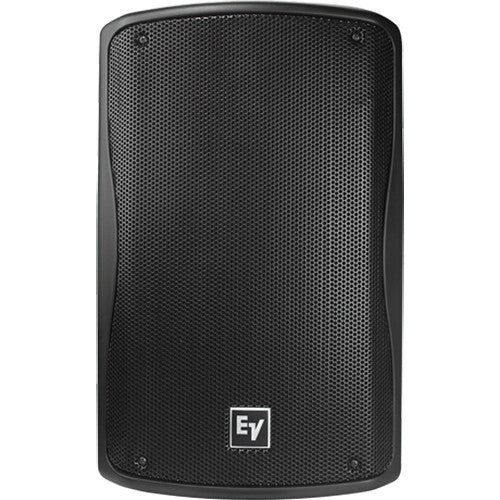

Electro-Voice F.01U.267.021 ZX190 Composite 8in 2-Way Loudspeaker



You need a speaker that can reproduce every note, every inspirational word and every nuance of your style. Introducing the ZX1. Compact, lightweight, yet high performance, the ZX1 is a reflection of the needs of the high-speed, time-crunched, high-tech lifestyle you lead. Its versatility is matched only by your imagination, and its look is pure beauty. So while your audience may not be fully aware of why you sound incredible, you'll know it's because you chose the very best...

The ZX1 offers a wide array of mounting options including an integrated pole mount and removable rubber feet that hide M8 mounting studs. Dual NL4 connectors and an ergonomic molded carrying slot make the ZX1 perfect for portable music, AV rental and mobile audio applications.

The ZX1 shines in monitor wedge applications, especially where the reproduction of vocal frequencies is crucial. Its asymmetrical cabinet design means you simply have to put the ZX1 on its side to achieve a 45-degree monitor angle. And with the ability to rotate its 90x50-degree horn, you can adjust the dispersion pattern to suit your unique application.
  • Extremely smooth, wide frequency response
  • Attractive, clean design with full grille
  • EV8L 8 in. high-output LF transducer
  • DH2005 1 in. exit true compression driver
  • 90 degree x 50 degree coverage pattern
  • Rotatable horn design
  • Integral monitor angle on enclosure
  • 200W cont., 800W peak power handling
  • High sensitivity, 125 dB maximum SPL
  • Built-in pole mount
  • Integral handle pocket for easy carrying
Chassis Size 203.2 mm (8")
Color Black or White

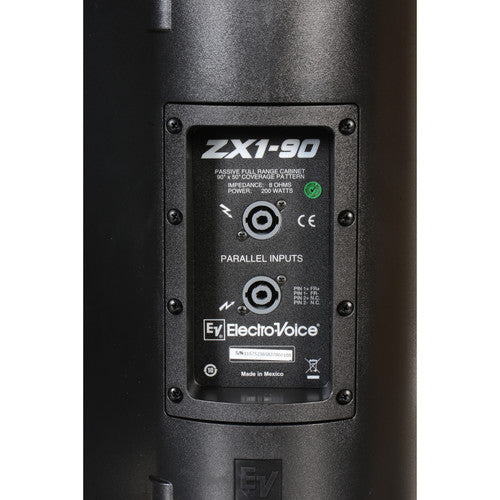

Input Connections Parallel Neutrik® NL4
Speaker Type Fullrange
Speaker Type Mid-High
Speaker Type Two-Way
Speaker Type Wedges
Frequency Response (-3 dB) 60 - 20000 Hz
Frequency Response (-10 dB) 48 - 20000 Hz
Internal Crossover Yes
Sensitivity 1 W/1 m 94 dB
Max. SPL/1m (calc) 123 dB
(Nominal -6 dB) H°
90 °
(Nominal -6 dB) V°
50 °
Rotatable Horn Yes
System Power Handling (Continuous/Program/Peak) 200 Watts
LF Transducer EV8L
HF Transducer DH2005
Nominal Impedance (Passive) 8 Ω
Outdoor No
Height 451 mm (17.76")
Width 282 mm (11.1")
Depth 263 mm (10.35")
Weight Net 8.4 kg (18.52 lbs)
