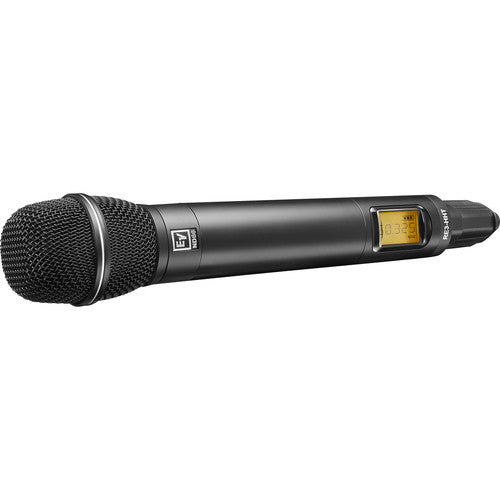

The RE3-HHT86-6M UHF Wireless Transmitter with ND86 Supercardioid Capsule from Electro-Voice is a lightweight, yet robust UHF handheld transmitter body with a dynamic supercardioid microphone head for vocal performance and presentations. It can be used when paired with the RE3-RX diversity receiver (sold separately) to capture audio for all-around voice applications.
The handheld transmitter setup is quick and simple using the RE3 clear frequency scan and sync functions. It features 400 selectable frequencies, switchable low- and high-output power, and up to 10 MHz tuning bandwidth. Additionally, recharging contacts provide for functional use with the optional BC2 charging station (sold separately) allowing the NiMH rechargeable cells to be charged without removal from the transmitter.
Product Highlights:
| Wireless Technology |
Analog UHF |
| RF Frequency Band |
653 to 663 MHz |
| RF Bandwidth |
Up to 10 MHz |
| Encryption |
Yes |
| Modulation |
Wideband FM |
Transmitter
| Transmitter Type |
Handheld |
| RF Output Power |
10 mW (20 mW Peak, Switchable) |
| Audio I/O |
None |
| Muting |
Mute Switch |
| Frequency Response |
30 Hz to 17 kHz (Dependent on Mic)
70 Hz to 17 kHz (Dependent on Mic)
|
| Sync Method |
IR |
| Power Requirements |
Battery |
| Battery Type |
2 x AA (Included, Replaceable) |
| Display & Indicators |
LCD (Channel, Group, Mute, Power, RF Output Power) |
| Housing |
Metal |
| Dimensions |
1.5 x 7.5" / 3.8 x 19.1 cm |
| Weight |
12.2 oz / 345.9 g (without Capsule) |
Microphone
| Microphone Type |
Handheld Capsule |
| Sound Field |
Mono |
| Polar Pattern |
Supercardioid |
| Frequency Range |
30 Hz to 17 kHz |
| Maximum SPL |
134.5 dB SPL Peak |
| Impedance |
1000 Ohms |
| Operating Voltage |
4 to 8 V |
| Length |
3.6" / 9.14 cm |
| Diameter |
2.0" / 50.80 mm |
