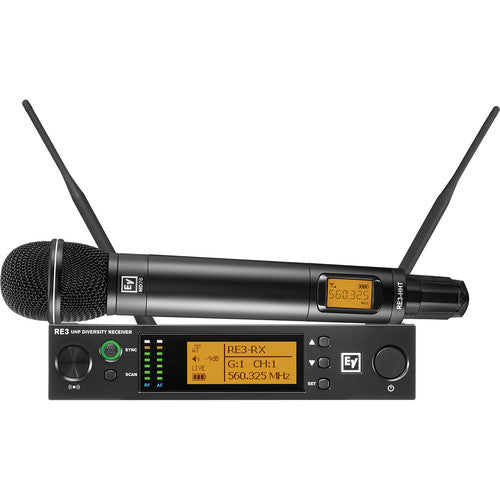

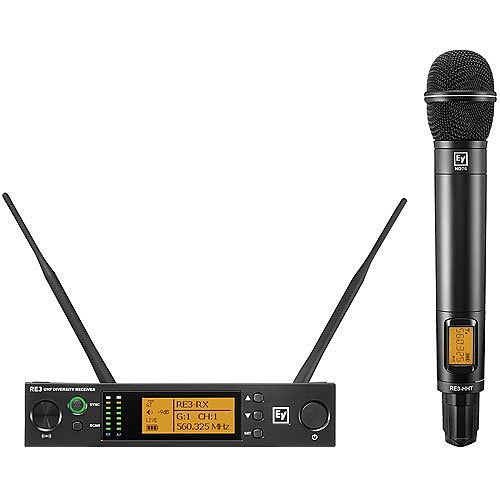

Electro-Voice RE3-ND76-6M Wireless Handheld Microphone System with ND76 Wireless Mic (6M: 653 to 663 MHz)

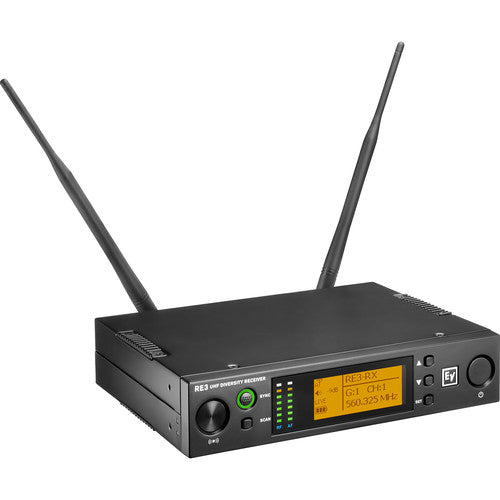

Achieve solid performance, dependability, and clear voice reproduction with the Electro-Voice RE3-ND76 (Band 6M: 653 to 663 MHz) UHF wireless handheld microphone system. Comprised of a rack-mountable diversity receiver and one handheld wireless transmitter with an ND76 cardioid dynamic microphone capsule, this wireless set is well suited for singers, speakers, and presenters in clubs, concert venues, houses of worship, and conference rooms. The ND76 delivers balanced vocal tone, reduced ambience, and increased feedback rejection. Thanks to simple operation and the ability to control the transmitter from the receiver, the RE3-ND76 minimizes setup time and maximizes workflow efficiency.

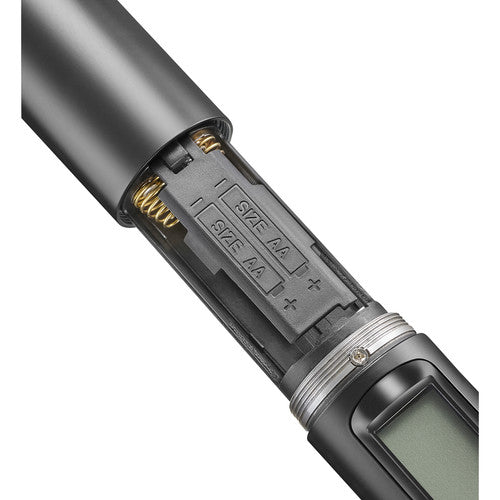

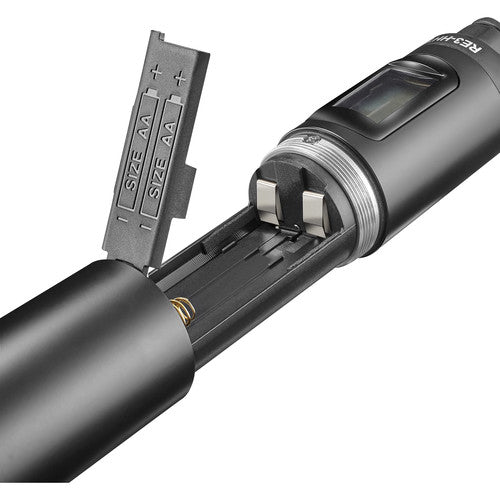

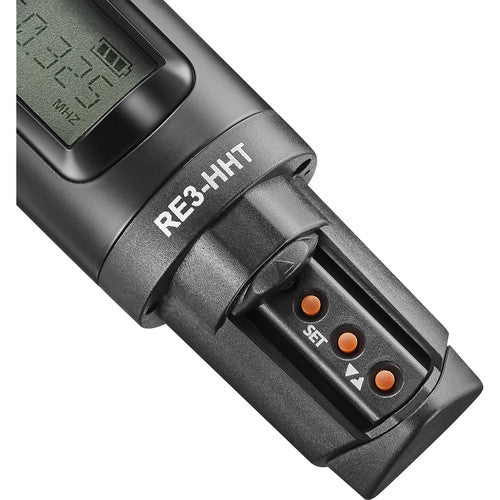

Two included AA batteries provide up to eight hours of operating time for the transmitter, which offers adjustable sensitivity and RF output power to optimize your gain structure and avoid clipping. Backlit LCD screens display crucial information such as transmitter battery status, frequency, KeyLock mode, and mute status. Easily sync, scan, and control this wireless system via its dedicated buttons and straightforward menu navigation.


Wireless Technology Digital UHF
Number of RF Channel Frequencies 400
Diversity Antenna Diversity
RF Frequency Band 653 to 663 MHz
RF Bandwidth Up to 10 MHz
Modulation Wideband FM
Receiver Type Tabletop
Mounting Options Rackmount (with Included Hardware)
Rackmount Size 1 RU (1/2 Rack)
Antenna 2 x 1/2 Wave External, Detachable (Rear-Mount)
Antenna Bias Voltage 12 to 15 VDC
Number of Audio Channels 1

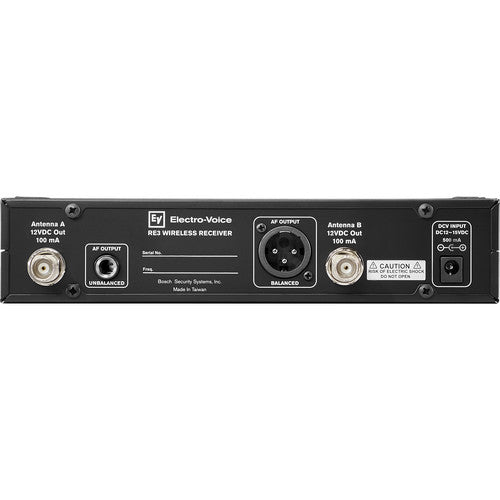

Audio I/O 1 x XLR 3-Pin Male Balanced Line Output
1 x 1/4" TS Male Unbalanced Line Output
Frequency Response 51 Hz to 16 kHz (Dependent on Mic)
Approximate RF Sensitivity 81 dBm
RF Output Power Up to 20 mW (Max)
Power Requirements AC/DC Power Adapter
AC/DC Power Adapter 12 to 15 VDC (Included)
Display & Indicators Backlit LCD (Battery Status, Channel, Diversity, Frequency, Group, Mute, Power)
Housing Metal
Dimensions 8.2 x 1.9 x 6.1" / 20.8 x 4.8 x 15.5 cm (without Mounting Hardware)

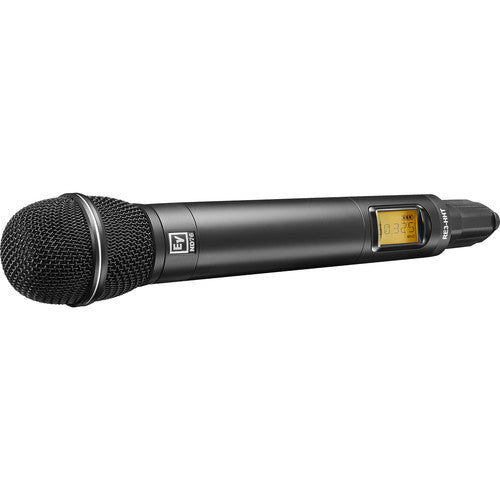

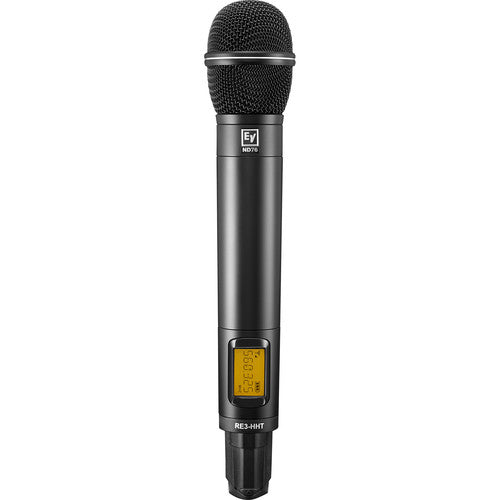

Electro-Voice RE3-HHT766M UHF Wireless Transmitter With ND 76 Cardioid Capsule (653 To 663 MHz) Specs

Wireless Technology Analog UHF
RF Frequency Band 653 to 663 MHz
RF Bandwidth Up to 10 MHz
Encryption Yes
Modulation Wideband FM
Transmitter Type Handheld
RF Output Power 10 mW (20 mW Peak, Switchable)
Audio I/O None
Muting Mute Switch
Frequency Response 30 Hz to 17 kHz (Dependent on Mic)
70 Hz to 17 kHz (Dependent on Mic)
Sync Method IR
Power Requirements Battery
Battery Type 2 x AA (Included, Replaceable)
Display & Indicators LCD (Channel, Group, Mute, Power, RF Output Power)
Housing Metal
Dimensions 1.5 x 7.5" / 3.8 x 19.1 cm
Microphone Type Handheld Capsule
Sound Field Mono
Polar Pattern Cardioid
Frequency Range 30 Hz to 17 kHz
Maximum SPL 135.5 dB SPL Peak
Impedance 1000 Ohms
Operating Voltage 4 to 8 V
Length 3.6" / 9.14 cm
Diameter 2.0" / 50.80 mm
Weight 6.5 oz / 0.18 kg
