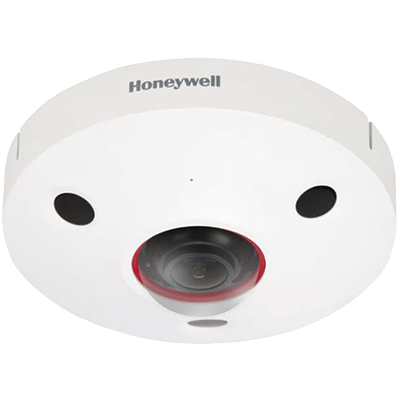

Honeywell is taking quality and reliability to the next level with the new equIP® line of fisheye IP cameras. The Honeywell TDN ultra HD IR fisheye cameras offer incomparable picture clarity, an incredibly wide coverage area, hassle-free flexible system integration, and secure data transmission-and they install easily too!

Superior Image Quality

  • Ultra HD 12 MP (4K) 25 fps image with a 1/1.7" 12 megapixel sensor
  • Digital WDR (DWDR) ensures glare-free images
  • True Day/Night provides vivid colour images by day and clear black-and-white images at night using a removable IR cut filter
  • Image dewarping makes the fisheye output easy to view and scan for intruders
  • Embedded PTZ control within the fisheye video allows users to control the part of the 360° view to focus on
  • Excellent low-light performance with 3D noise reduction, saving storage and bandwidth together with H.265 Profile codec

Flexible Surveillance Solution

  • 1.98 mm, F2.8, fixed fisheye lens
  • H.265, H.264 and MJPEG codec, triple stream support
  • IR LEDs provide up to 8 m (25 ft) of illumination in dimly lit or nighttime scenes (depending on scene reflectance)
  • Smart IR technology provides even distribution of IR
  • Waterproof (IP67) and IK10 impact-resistant camera housing
  • -30 °C to 60 °C (-22 °F to 140 °F) working temperature
  • ONVIF Profile S and G compliant
  • Security features include individual signed certificates and data encryption
  • Cameras can be retrofitted on many existing NVR installations without requiring additional storage

Easy to Install and Use

  • Built-in PoE (Power over Ethernet) eliminates separate power supply and associated wiring; 12 V DC inputs where PoE power is unavailable
  • Remote configuration through web client or from the NVR
  • Included accessories: security screw driver, mounting screws, mounting template, mount adapter, IR led cover, and waterproof joint for network cable
