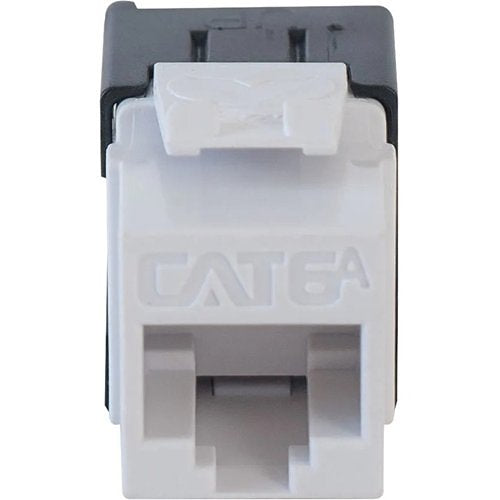

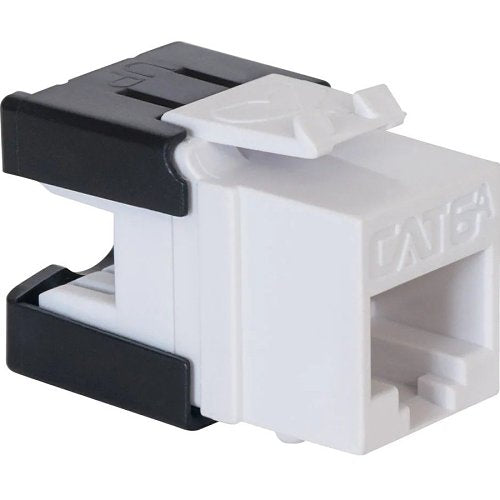

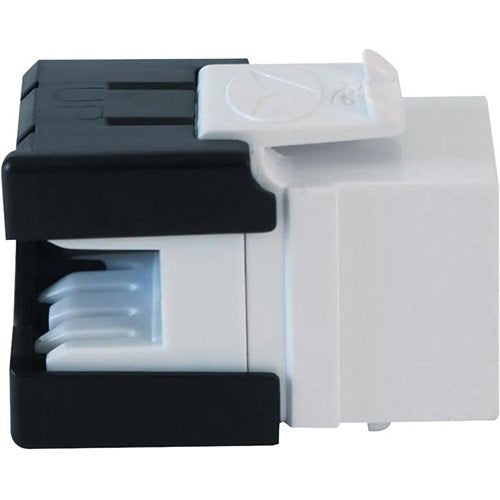

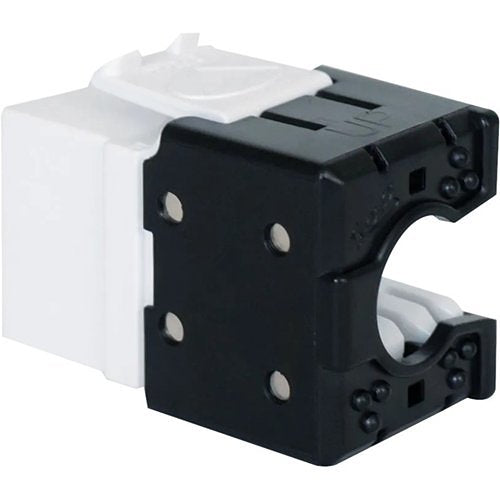

The CAT6A 10Gig UTP modular jacks provide transmission performance beyond 500MHz and Alien Crosstalk requirements exceeding the industry standards set by ANSI/TIA-568-C.2 for supporting the operation of 10Gig Ethernet applications (10GBASE-T). It is designed with a shielded termination cap which minimizes additional AXT from neighboring connectors. It also features twisted pair separation posts which minimize the untwisting of pairs to allow for efficient installation and long-term peak performance. The modular jacks are also backward compatible supporting current CAT6, CAT5e, and voice network applications.
Features
- CAT6A rated connectors provide excellent performance for data networks requiring maximum speed and bandwidth.
- Supports Power over Ethernet (PoE++) Type 4; up to 100 Watts.
- PCB technology provides maximum performance and superior signal quality.
- Enhanced crosstalk cancellation reduces return loss and improves performance by rejecting noise and unwanted signals.
- Designed with rear 110 IDC reducing termination time.

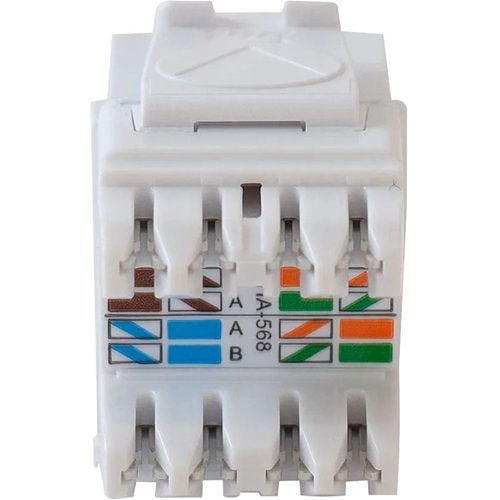

- Includes an integrated TIA-568A/B color wiring diagram.
- Reduced rear footprint allows for greater connectivity density.
- Provide more port configurations in a smaller area.
- Compatible with ICC CAT6A blank patch panels IC107PPU6A.
- High-density jacks with compatible Decorex style inserts and classic faceplates.
- Exceeds ANSI/TIA-568-C requirements for permanent performances.
- UL 1863 compliant.

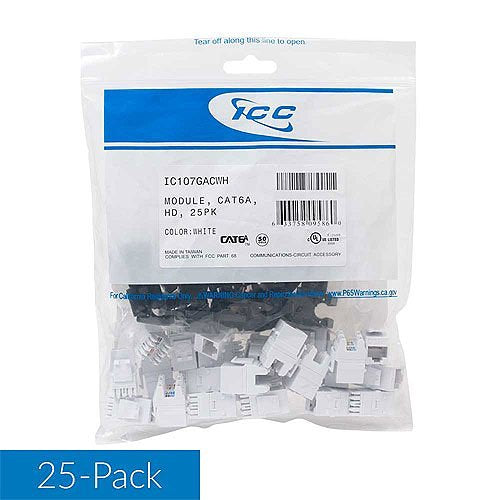

Name: ICC IC107GACWH CAT6A RJ45 Keystone Jack for HD Style, 25-Pack, White
Category: ICC, Data Comm & Networking, Cable Connectors, Keystone Jacks
UPC Code: 633758095860
Country of Origin: Taiwan. Country of origin is subject to change.
