Product Overview
CAT6 CABLE: ICC's CAT6 UTP unshielded plenum cable offers exceptional transmission performance, supporting 1Gb (Gigabit) Ethernet with a bandwidth of 500MHz. This cable not only meets but exceeds TIA Alien Crosstalk requirements and holds ETL Verification to the TIA 568.2-D standard for reliable support of high-speed Ethernet applications. With an outer diameter of 0.200 inches and a conductor insulation diameter of 0.039 inches, this plenum-rated cable guarantees reliability and durability, making it an ideal choice for 1Gb Ethernet applications in data centers and other data-intensive or backbone requirements, especially in plenum spaces where fire safety is a priority.
Main Features
- CAT6 CMP Plenum 23AWG Solid Copper
- Supports up to 100W PoE++
- 500 MHz Frequency Support
- UL and ETL Certified

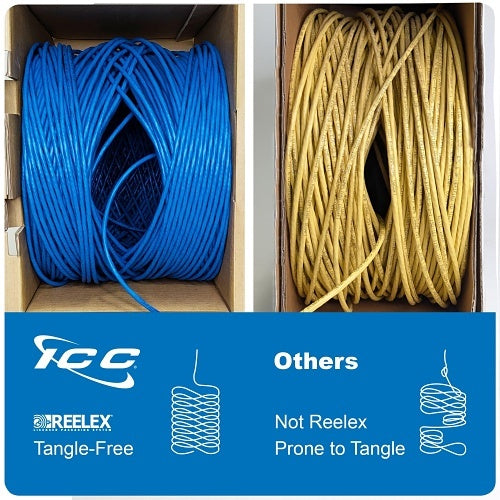

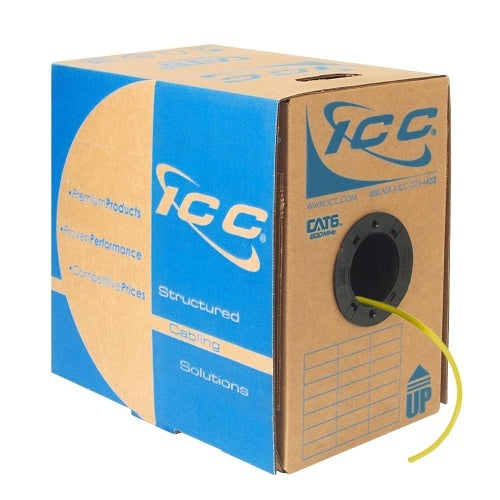

- Tangle-Free REELEX Pull Box
- NEC and TAA Compliant
- Indoor Use with Plenum-Rated PVC
- Sequential Footage Markings
- Compatible with Fast and Gigabit Ethernet
General Information
Name: ICC ICCABT6VYL CAT6 CMP Plenum 23AWG 100% Solid Pure Copper Unshielded Bulk Ethernet Cable, UTP, PoE++, 500 MHz, UL Certified, 1000' Reelex Pull Box, Yellow
Category: ICC, Wire & Cable, Network Cables, Category 6 Network Cables
UPC Code:
Country of Origin: . Country of origin is subject to change.
