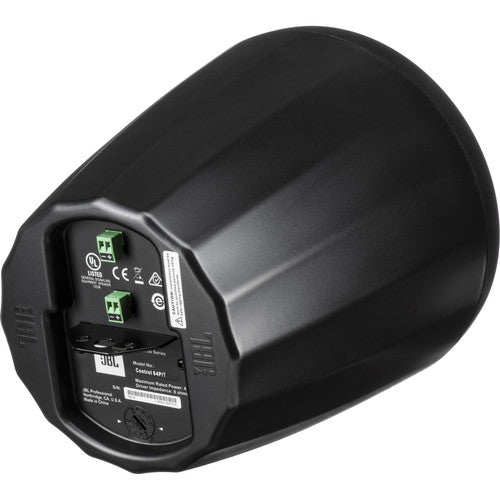

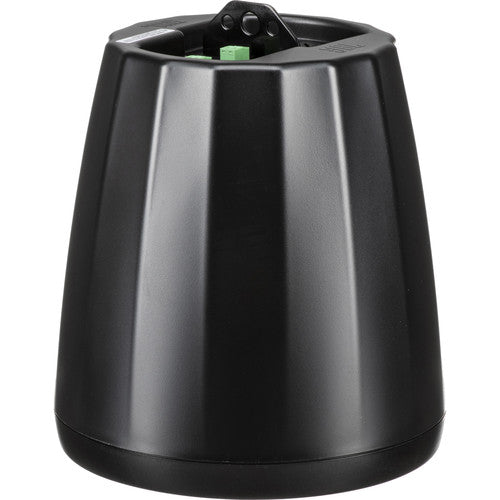

JBL Control 64P/T Full-Range Pendant Speaker (Black, Pair)



The Control 64P/T is a compact full-range, pendant-type loudspeaker that provides superb sound reproduction for rooms with open architecture ceilings and other locations where a pendant form factor is desired.


  • 100 mm (4 in) full-range driver with polypropylene-coated cone and 20 mm (0.8 in) high temperature voice coil.
  • Hanging hardware with 4.5 m (15 foot) galvanized steel cable and easy to adjust clamp.
  • Stylish design, available in black or white (-WH).
  • UL listed (speaker and hanging cable system).
  • 8Ω and 70V/100V operation
Frequency Response (-10 dB):  65 Hz - 15 kHz
Frequency Response (+/-3 dB):  85Hz - 14 kHz
Power Rating:  100 W Continuous Program (2 hrs), 50 W (200W peak), Continuous Pink Noise (2 hrs), 40 W (160W peak) Continuous Pink Noise (100 hrs)
Maximum Input Voltage:  18.2 V RMS (2 hrs), 36.4 V peak
Nominal Sensitivity:  88 dB Nominal
Coverage Angle:  120° (averaged 1 kHz to 4 kHz)
Directivity (Q):  6.2
Directivity Index (DI):  7.3dB (averaged 1kHz – 16kHz)
Rated Maximum SPL @ 1m:  105 dB continuous pink noise, 111 dB peak
Rated Impedance:
Transformer Taps:  70V: 30W, 15W, 7.5W & 3.7W, 100V: 30W, 15W, 7.5W
Transformer Insertion Loss:  0.94dB @ 3.7W, 0.89dB @ 7.5W, 0.83dB @ 15W, 0.94dB @ 30W
Driver:  100 mm (4 in) polypropylene-coated paper with cloth surround, 20 mm (0.8 in) copper voice coil
Enclosure Material:  High impact polystyrene
Grille:  Zinc-plated steel grille with powder-coat finish, foam backing (removable for painting)
Environmental:  Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV. IP44 capability per IEC 529 – splash-proof rating.

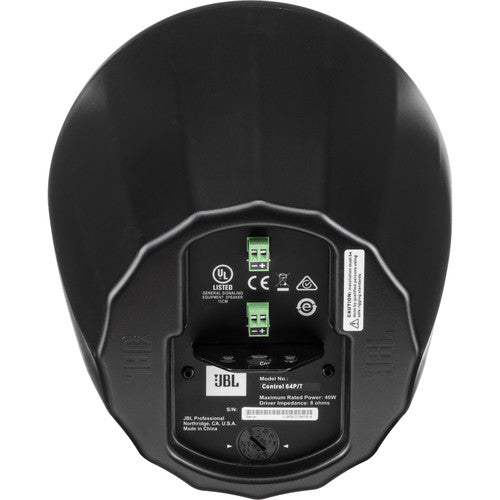

Termination:  Two removable locking euro-block 2-pin connectors with screw-down terminals for bare wire. Connectors paralleled for input and loop-thru. Max. wire 12 AWG (2.5 mm2). Rubber terminal covers included.
Suspension:  Two identical suspension systems (one as main suspension cable and the other as safety cable), each consisting of 4.5 m (15 ft) long 2 mm (0.077 in) high-tensile galvanized-steel wire rope suspension cable with spring-clips for clipping onto the loudspeaker bracket and Gripple™ brand adjustable-height cable fasteners for infinitely adjustable height. Cables have SWL rating of 45 kg (99 lb).
Safety Agency Ratings:  Speaker listed per UL1480, transformer registered per UL1876. In accordance with IEC60849/EN60849. Suspension system and Gripple®-brand cable fastener listed per UL1598 and UL2239, TUV, and CSA Class 3426-01 & Class 3426-81.
Dimensions (L x W x H):  234 mm (9.3 in) diameter x 259 mm (10.2 in) height to top of cabinet. 279 mm (11.0 in) to top of suspension bracket.
Net Weight (ea):  2.35 kg (5.2 lbs)
Shipping Weight (pair):  6.07 kg (13.4 lbs)
Included Accessories:  Two suspension cable systems (see “Suspension”, above), two 2-pin removable locking euro-block connectors, two rubber covers for euro-block connectors.
Optional Accessories:  MTC-PC60 top panel / terminal cover
Colors:  Available in black or white (-WH). Paintable
