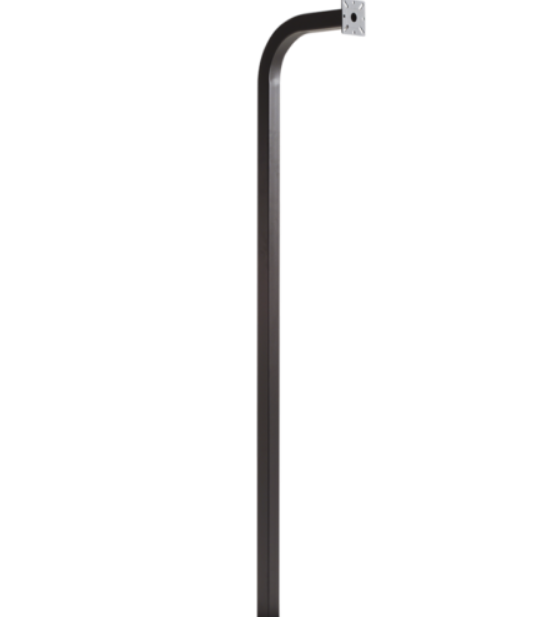

- black powder coated, architectural-style, 12″ neck reach, 4″ square x .120″ wall tube, 8″ x 8″ x .120 face plate, carriage bolts & nuts included
A very strong, heavy duty, in-ground mount (wet cement), gooseneck, card reader pedestal for cars and pedestrians (See “Vehicle Height Chart”.) Also mounts intercoms, keypads, entry/exit buttons, biometric readers, telephone entry systems, housings, and other access control devices. Most often installed for automatic gate entry and exit, parking lot, and perimeter access applications. Includes a face plate with universal holes patterns and a .5″ NPT hole (drilled and tapped) on the back side for easy wiring near ground level. This pedestal can be installed for various height requirements. In-ground (wet cement) pedestals are meant to save the installer time; however, if this pedestal becomes damaged (by a vehicle or otherwise) it is more cumbersome to replace. Conversely, pad mount pedestals require more labor from the installer; however, they are much easier to replace. This pedestal has passed our facewind testing protocol which determined it can survive sustained Category 5 hurricane force winds of 157 mph.
The neck is cut and welded to form an architectural design while allowing the wiring to pass easily from the ground, through the pedestal, and into the access control device– making installation very convenient.
Furthermore, this pedestal is first bead-blasted to eliminate contaminants and blemishes, then powder coated with an outdoor rated TGIC polyester finish with UV protectant to help promote longevity in any weather condition.
Each pedestal includes carriage bolt hardware and is then wrapped in foam packaging and boxed individually for safe shipping.
Customized colors, heights, reaches, face plates and base plates are available– additional costs and lead times may apply.
A pedestal is often sold with a mounting bolt kit and card reader housing for a complete turnkey solution.
Pedestal PRO is the world’s leading manufacturer of access control pedestals and supports a global network of systems integrators and security professionals.
| Weight |
52.00 lbs |
| Type |
Mounts
|
| Mount type |
Custom
|
| Depth for the mount |
76″
|
