Manufacturer Part Number: 997-9363-00
Manufacturer Website Address: www.planar.com
Brand Name: Planar
Product Line: Helium
Product Model: PCT2435

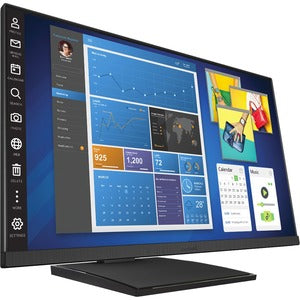

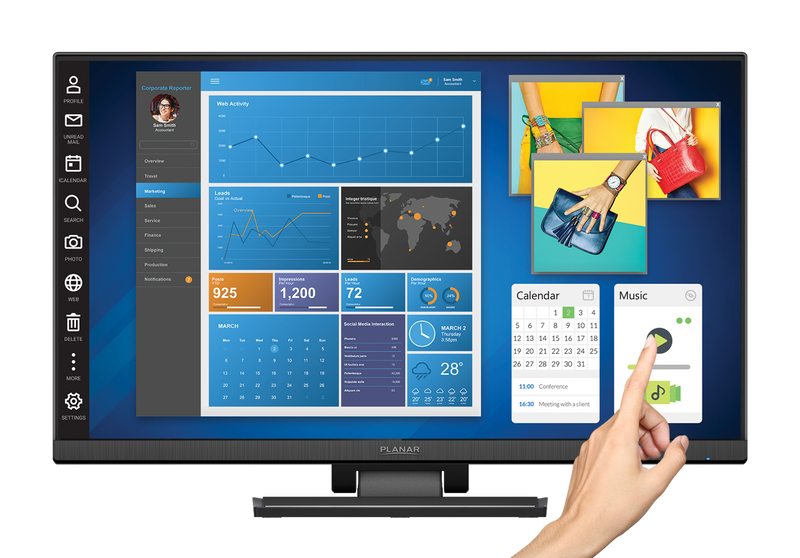

Product Name: Helium PCT2435 24" Touch Screen Monitor
24" Touch Screen Monitors
The Planar® Helium™ PCT2435 is a 24" Full HD resolution (1920x1080) LCD touch screen monitor with 10-point simultaneous multi-touch capability, integrated speakers, USB 3.0 hub and dual-hinge desk stand.
Using projected capacitive technology, the Planar Helium PCT2435 registers up to 10 simultaneous touch points using either a finger or a passive stylus. With this interactive technology, the Planar Helium PCT2435 is extremely fast and accurate when browsing the web, scanning emails, editing photos or graphic design projects. The Planar Helium PCT2435 is designed to take full advantage of Microsoft Windows 10, which works seamlessly with multi-touch technology.
Stand & Mount Flexibility

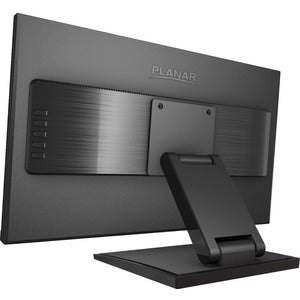

The Planar Helium PCT2435 includes an easy-to-use dual-hinge Helium™ Desk Stand that offers more flexibility with a tilt up to 90°, quickly moving the monitor from a passive viewing position to full touch screen interaction. Whether you are reading emails and manipulating spreadsheets, to scrolling through social media updates and blog postings, the versatile monitor accommodates all with a styling that coordinates with today's contemporary office designs. Additionally, the Planar Helium PCT2435 is VESA-compatible, making it easy to attach to other mounting options such as a Planar single-arm clamp stand or a Planar fixed monitor wall mount.
Inputs & Connectivity
Multiple video inputs (VGA, HDMI, DVI-D [with HDCP]), integrated speakers and a built-in USB 3.0 Hub offers more flexibility in the Planar Helium PCT2435 so users to connect other peripherals directly to the monitor rather than connecting cables to a Surface, notebook or a third-party USB Hub.
Product Type: LCD Touchscreen Monitor
Viewable Screen Size: 23.8"
Screen Mode: Full HD
Response Time: 14 ms
Aspect Ratio: 16:9
Mount Type: Wall Mountable
Mount Type: Arm-mountable
Backlight Technology: Edge LED
Maximum Resolution: 1920 x 1080
Color Supported: 16.7 Million Colors
Contrast Ratio: 1,000:1
Brightness: 250 Nit
Touchscreen Type: Projected Capacitive
Multi-touch Screen: Yes
Built-in Devices: Speaker
Built-in Devices: USB Hub
Operating Power Consumption: 28 W
VESA Mount Compatible: Yes
Width with Stand: 21.30"
Depth with Stand: 9.40"
Weight (Approximate): 6.70 lb
Weight with Stand (Approximate): 11.70 lb
- Helium PCT2435 24" Touch Screen Monitor
- Power Cord
- VGA Cable
- HDMI Cable
- USB 3.0 Cable (A to B)
- Audio-in Cable
- User's Guide
Environmentally Friendly: Yes
Environmental Certification: RoHS 2
Limited Warranty: 3 Year
