RUCKUS R770 Wi-Fi 7 tri-band concurrent wireless Access Point with 2x2 (2.4GHz) + 4x4 (5GHz) + 2x2 (6GHz) RF configurations. Wi-Fi 7 support in all three frequency bands. 6GHz band supports LPI mode and SP mode with AFC. R770 can also be configured to 2x2 (2.4GHz) + 4x4 (5GHz) dual-band RF configurations through software, with Wi-Fi 7 support in both frequency bands. Other key hardware features include: BeamFlex+® technology, one 10-Gigabit Ethernet backhaul, one 1-Gigabit auxiliary port, 802.3bt PoE-in and 48V DC, onboard Bluetooth® Low Energy (BLE) and Zigbee® technology selectable IoT radio with “Matter” and “Thread” capable, USB 2.0, TPM 2.0, and Secure Boot. Includes adjustable acoustic drop ceiling bracket. Does not include power adapter or PoE injector. Includes Limited Lifetime Warranty.**
| Antenna Patterns, per band |
4000+ |
| Antenna Gain |
Up to 4 dBi |
| BeamFlex |
Yes |
| ChannelFly |
Yes |
| Concurrent Users |
1024 |
| Controller Support |
RUCKUS One™ | RUCKUS SmartZone | RUCKUS Unleashed™ | Standalone |

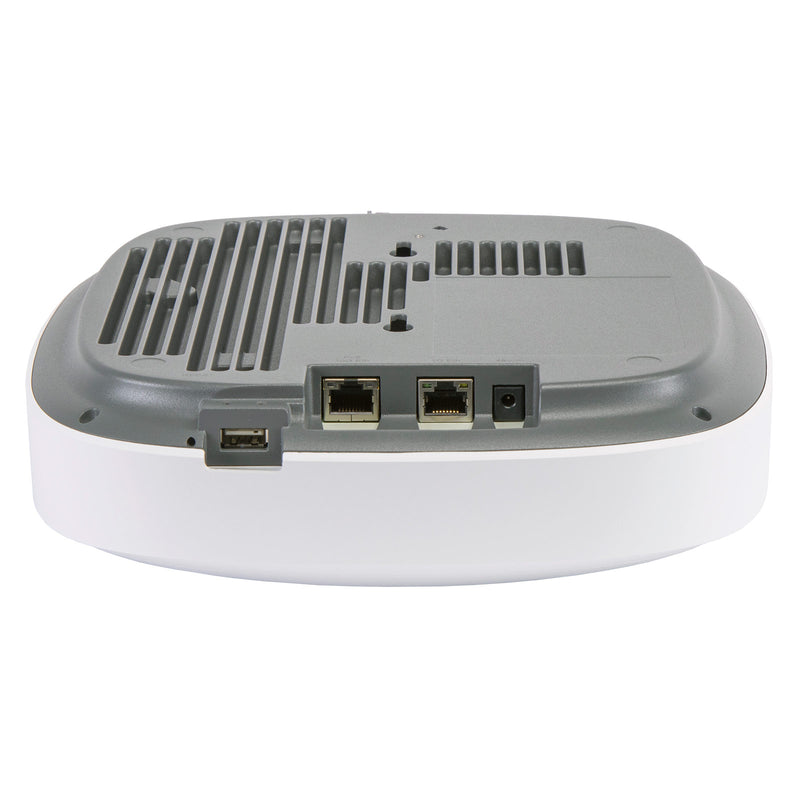

| Ethernet Ports |
1 x 1 / 2.5 / 5 /10 GbE | 1 x 1 GbE |
| IoT Support |
IoT Onboard |
| Number of Radios |
Tri-Radio |
| PD-MRC |
Yes |
| PHY Rate at 2.4 GHz, maximum |
689 Mb/s |
| PHY Rate at 5 GHz, maximum |
5765 Mb/s |
| PHY Rate at 6 GHz, maximum |
5765 Mb/s |
| Combined Max PHY Rate |
12220 Mb/s |
| Radio Chains and Streams |
2x2:2 (2.4 GHz) 4x4:4 (5 GHz) 2x2:2 (6 GHz) |
| Rx Sensitivity at 2.4 GHz |
-97 dBm |
| Rx Sensitivity at 5 GHz |
-100 dBm |
| Rx Sensitivity at 6 GHz |
-96 dBm |
| SmartMesh |
Yes |
| USB |
USB 2.0 |
| Venue Type |
Education | Hospitality | MDU | Manufacturing | Office/Retail | Public Venue |
| Venue Sub-Type |
Convention Floor | Lecture Hall | Transit Stations | Venue Common Spaces |
| Wi-Fi Bands Supported |
2.4 GHz | 5 GHz | 6 GHz |
| Wi-Fi Generation |
Wi-Fi 7 |
| Wi-Fi Interface Standard |
IEEE 802.11a/b/g/n/ac/ax/be |
