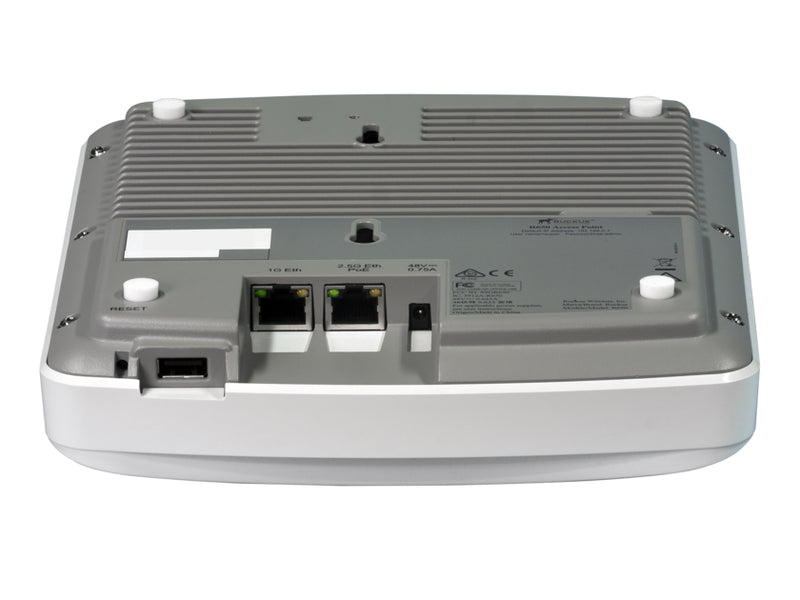

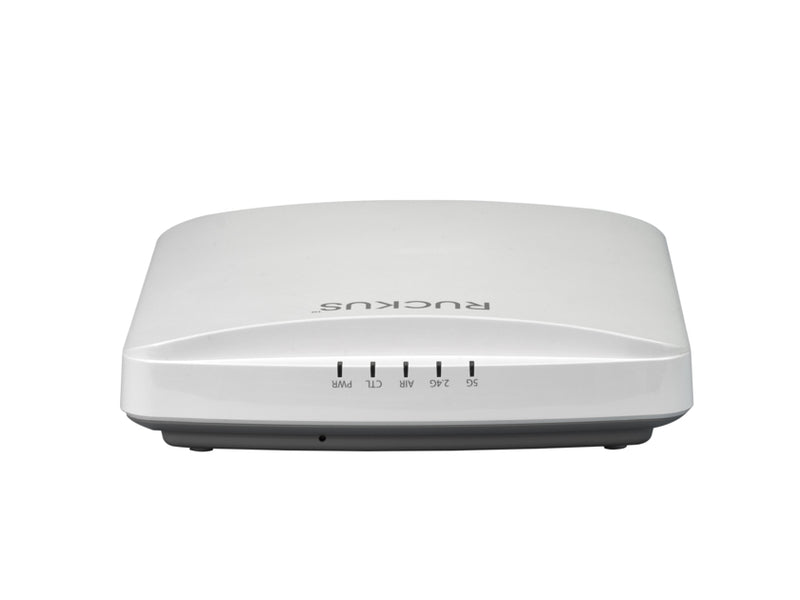

RUCKUS R650 Indoor Access Point 901-R560-US00

$1,499.99
Wi-Fi capacity requirements in office buildings, classrooms, and retail venues are rapidly raising due to increase in Wi-Fi connected devices, non-Wi-Fi IoT devices and bandwidth-hungry applications.

The R650 access point (AP) with the latest Wi-Fi 6 (802.11 ax) technology delivers increased capacity, improved coverage and performance in dense environments. The R650 is our mid-range dual-band, dual-concurrent AP that supports six spatial streams (4x4:4 in 5GHz, 2x2:2 in 2.4GHz). The R650 supports peak data rates of up to 2974 Mbps and efficiently manages up to 512 clients connections. Furthermore, 2.5GbE Ethernet ensures the backhaul will not be a bottleneck for full use of available Wi-Fi capacity.

The R650 has built-in IoT radios with onboard Bluetooth® Low Energy and Zigbee capabilities. In addition, the R650 is a converged access point that allows customers to seamlessly integrate any new wireless technologies with the pluggable IoT module.
  • Stunning Wi-Fi Performance - Mitigate interference and extend coverage with patented BeamFlex+™ adaptive antenna technology utilizing several directional antenna patterns
  • Serve More Devices - Connect more devices simultaneously with six MU-MIMO spatial streams and concurrent dual-band 2.4/5GHz radios while enhancing device performance
  • Converged Access Point - Allow customers to eliminate siloed networks and unify WiFi and non-WiFi wireless technologies into one single network by using built-in Bluetooth® Low Energy and Zigbee, and also expanding to any future wireless technologies
  • Automate Optimal Throughput - ChannelFly dynamic channel technology uses machine learning to automatically find the least congested channels. You always get the highest throughput the band can support
  • Multiple Management Options - Manage the R650 from the cloud, with on-premises physical/virtual appliances, or without a controller
  • Better Mesh Networking - Reduce expensive cabling, and complex mesh configurations by checking a box with SmartMesh wireless meshing technology to dynamically create self-forming, self-healing mesh networks
  • More than Wi-Fi - Support services beyond Wi-Fi with RUCKUS IoT Suite, Cloudpath security and onboarding software, SPoT Wi-Fi locationing engine, and SCI network analytics

Product Classification

Regional Availability Asia | Australia/New Zealand | EMEA | Latin America | North America
Product Type Indoor access point
Product Brand RUCKUS®

General Specifications

Antenna Gain Up to 3 dBi
BeamFlex Yes
Concurrent Users 512
Controller Support RUCKUS SmartZone | RUCKUS ZoneDirector | Standalone
Ethernet Ports 1 x 1 GbE | 1 x 2.5 GigE
IoT Support IoT Onboard
PD-MRC Yes
PHY Rate at 2.4 GHz, maximum 574 Mb/s
PHY Rate at 5 GHz, maximum 2000 Mb/s
Combined Max PHY Rate 2574 Mb/s
Radio Chains and Streams 4x4:4 (5 GHz) 2x2:2 (2.4 GHz)
SmartMesh Yes
USB USB 2.0
Venue Type Education | Office/Retail
Venue Sub-Type Classroom | Office Space | Stores
Wi-Fi Bands Supported 2.4 GHz | 5 GHz
Wi-Fi Version Wi-Fi 6
Wi-Fi Interface Standard IEEE 802.11a/b/g/n/ac/ax

Environmental Specifications

Operating Temperature 0 °C to +40 °C (+32 °F to +104 °F)
