Bandwidth-hungry ultra-high definition video, virtual reality, an explosion of new devices and content. With these kinds of demands, organizaons in every industry need more from their Wi-Fi. But with hundreds of devices and nonstop wireless noise and interference, busy outdoor spaces can make challenging wireless environments.
The dawn of the Wi-Fi 7 era ushers in a new wave of possibilities. With its groundbreaking advancements in speed, capacity, latency, and reliability, Wi-Fi 7 will transform the way we connect and interact with the digital world.
From seamless streaming of ultra-high-definition content to immersive virtual and augmented reality experiences, Wi-Fi 7 enables applications that were previously unimaginable. Real-time social gaming can reach new heights, allowing for lag-free, competitive multiplayer experiences with unparalleled responsiveness.
Moreover, industriessuch as hospitality and education can benefit immensely from Wi-Fi 7 low latency and high reliability. Other verticals like, MDUs, large public venues and service providers gain greatly from Wi-Fi 7 unprecedented advancements in speed and capacity

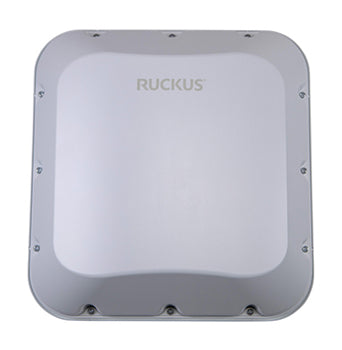

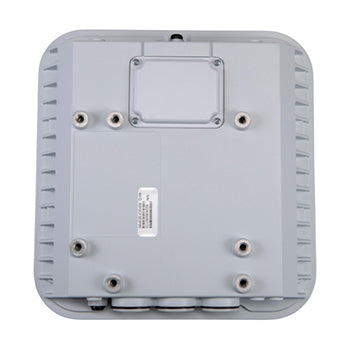

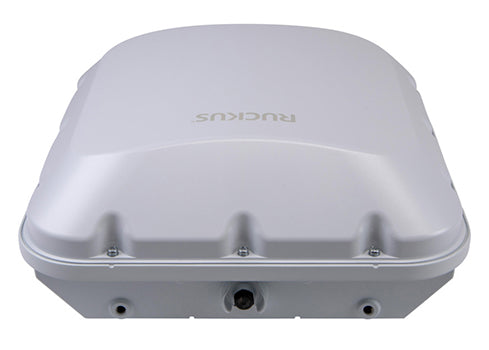

The RUCKUS T670 is a high-end Wi-Fi 7, tri-band concurrent outdoor AP that delivers 6 spatial streams (2x2:2 in 2.4GHz/5GHz/6GHz or, in dual-band mode, 2x2:2 in 2.4GHz and 4x4:4 in 5GHz. With Multi-Link-Operation (MLO), Preamble Puncturing, 4K QAM Modulation and 320MHz channels). It delivers industry-leading performance environments with a combined data rate of 9.34 Gbps. Furthermore, a 5 Gbps Ethernet port eliminates wired backhaul bottleneck for full use of available Wi-Fi capacity.
The T670 addresses the increasing client demands in transit hubs, stadiums, conference centers, and other high |r-Lc outdoor spaces. It is the perfect choice for data-intensive streaming multimedia applications like 4K/8K video transmissions, while supportung latency sensitive voice and data applications with stringent quality-of-service requirements.
The T670, with built-in RUCKUS exclusive technology, dramatically improves network performance through a combination of patented wireless innovations and learning algorithms that includes:
-
Airtime Decongestion: Increases average network throughput in heavily congested environments
-
Transient Client management: Reduces interference traffic from unconnected Wi-Fi devices
-
BeamFlex®+ Adaptive Antennas: Extended coverage range and optimized throughput with patented dynamic multi-directional antennas and radio patterns and work with any client.
Whether you are deploying ten or ten thousand APs, the T670 is also easy to manage through RUCKUS multiple management options including cloud based and on premises controllers.
In today’s connected world, the expectation for seamless internet access extends far beyond the confines of indoor environments. Outdoor access points are becoming pivotal in various settings, such as parks, urban spaces, hospitality venues and sports complexes providing robust wireless connectivity that supports a range of activities and services. Additionally, outdoor Wi-Fi APs are commonly used by service providers for mobile data offload.
The RUCKUS T670 is a high density, high throughput, low latency tri-band AI-driven Wi-Fi 7 outdoor AP engineered to meet the demands of the most challenging environments, providing unprecedented performance in high-density settings such as stadiums, public venues, and smart cities.
The RUCKUS T670 is driven by RUCKUS AI™, a cloud service for network assurance and business intelligence to enhance Wi-Fi 7 network resilience, and enhanced by RUCKUS BeamFlex® technology, a patented smart directional antenna system built into the AP. These superior technologies enable:
- Superior Throughput and Capacity
- Reduced Latency
- Adaptive Resilience
The RUCKUS T670 supports two Radio configurations to support different regulatory domains:
- Tri-band (2.4 GHz +5 GHz +6 GHz) for the US and Canada: This configuration supports Wi-Fi 7 simultaneously on 2.4GHz, 5GHz, and 6GHz frequency bands, with a maximum physical data rate of 9.336 Gbps.
- Dual-band (2+5) for global use: This setup offers Wi-Fi 7 simultaneously on both 2.4GHz and 5GHz frequency bands, with a maximum physical data rate of 6.454 Gbps.
Benefits:
-
Connect more devices simultaneously
Improve device performance, by enabling more simultaneous device connections with 6 spatial treams (2x2:2 in 2.4GHz, 5GHz, and 6GHz) technology. 9.34 Gbps Combined data rate.
-
High client density and performance
Provides exceptional end-user experience within large meeting halls, general enterprise spaces, and large classrooms
-
BeamFlex+ Adaptive Antenna Technology
For greater speed, fewer errors, and instant bandwidth delivery, RUCKUS BeamFlex+ patented technology offers first-of-its-kind smart antenna technology that maximizes signal coverage, throughput, and network capacity and work with any client. It further increases MIMO diversity gain and maximizes spatial multiplexing potential.
-
Great Outdoor Wi-Fi
Experience high performance outdoor Wi-Fi 7 with IP-67 weather proofing and multi-gigabit 5 GbE Ethernet port.
-
5 GbE eliminates bottleneck

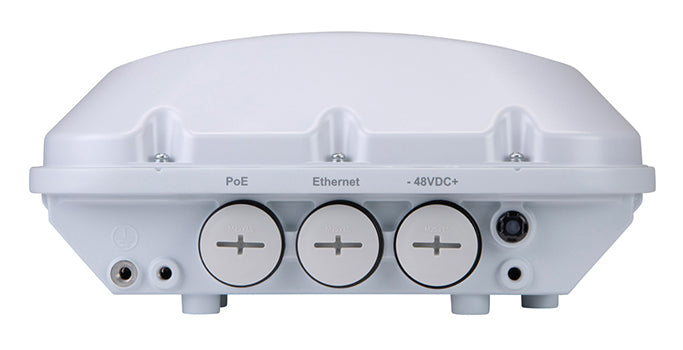

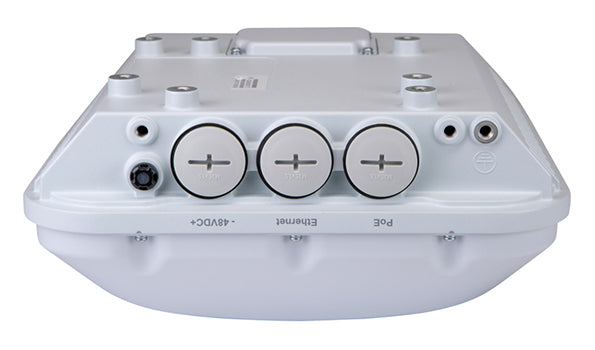

Optimized multi-gigabit Wi-Fi performance delivered using the built-in 1/2.5/5GbE port to connect to multi-gigabit switches.
-
Multiple management options
Manage the T670 with on premise physical/ virtual appliances and control auto-provisioning for faster deployment and seamless firmware upgrades.
-
Enhanced Security
The latest Wi-Fi security standard with WPA3 and receive enhanced protection from man-in-the-middle attacks. Adds the power of RUCKUS DPSK3 to WPA3/SAE combining enhanced security with the flexibility and ease of use of dynamic passphrase to secure network access.
-
More Than Wi-Fi
Support solutions beyond Wi-Fi with RUCKUS AI, RUCKUS One, RUCKUS Cloudpath Enrollment System and onboarding software.
