Left, Right, Center Stage
The IC-630 is Russound’s flagship in-ceiling speaker.designed for intelligent highs and deep rich lows.
Using advanced marterials from the 1″ pivoting titanium tweeter to the 6.5″ injection-molded polypropylene cone with vapor-deposited titanium, the IC-630’s performance will blow you away and will continue to impress you during years of enjoyment.

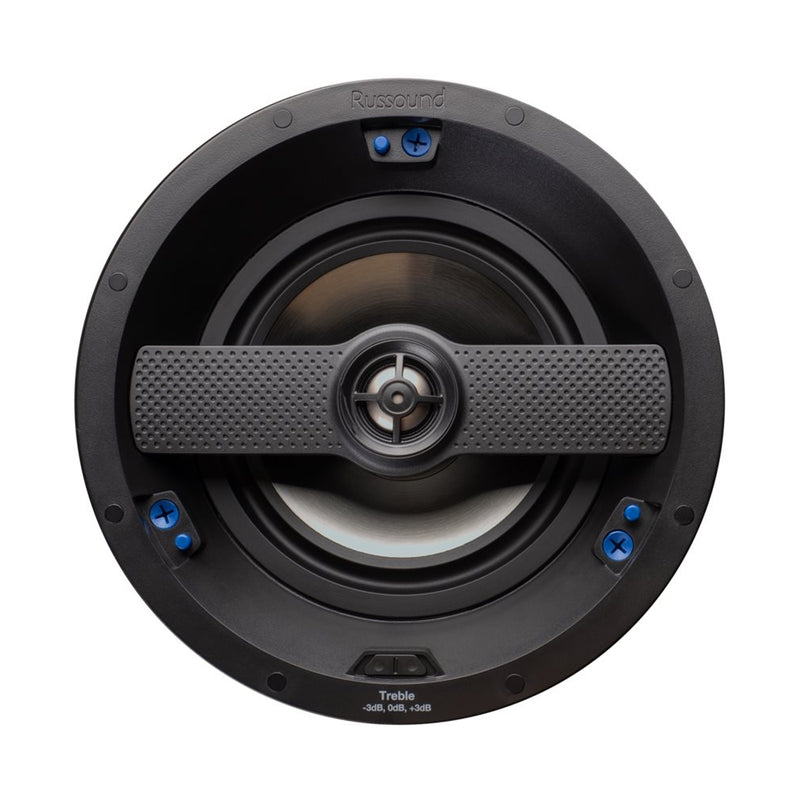

It includes a +/- 3dB tweeter adjustment switch to allow you to adjust for the room’s acousitc characteristics.
In bright, reflective rooms with lots of hard surfaces, set the switch to -3dB to tone down the highs a bit.  In a room filled with large, absorptive items like bulky furniture, thick carpet and curtains, set the switch to +3dB to compensate and reinforce the high frequencies as needed.

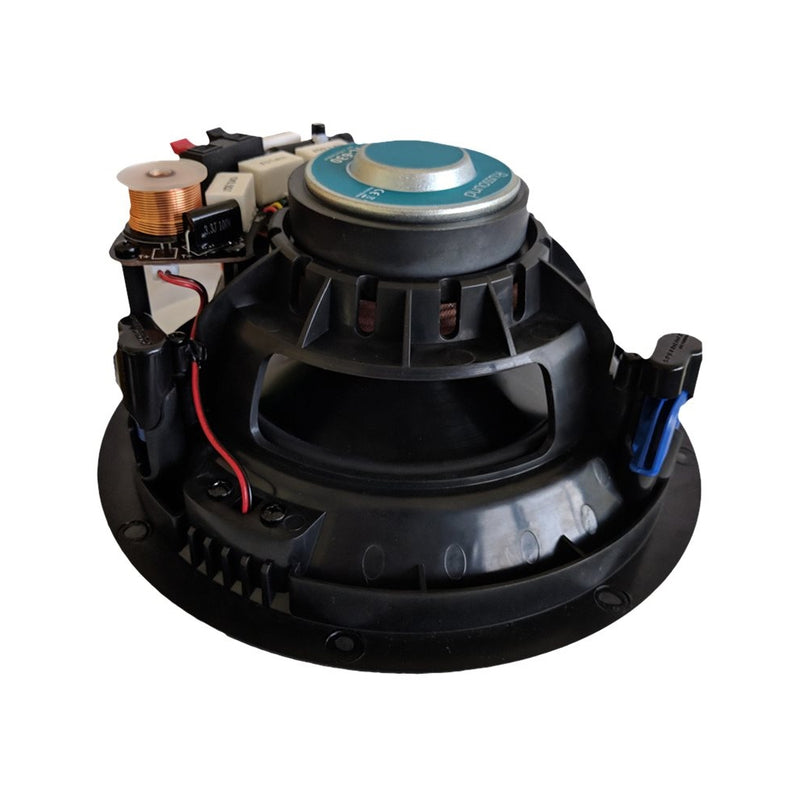

The patented SwiftLock™ by Swarm technology allows for quick and easy tool-less installation with the simple press of a button at each of the three mounting dogs.

  • Type: Two-way in-ceiling
  • Shipping Dimensions (Pair): 11.75″ x 10.75″ x 12″ (29.8 cm x 27.3 cm x 30.5 cm)
  • Shipping Weight (Pair): 8 lbs (3.6 kg)
  • Cutout Dimensions: 8.375″ (21.27cm) diameter
  • Frequency Response: 45 Hz – 25 kHz
  • Impedance: 8 ohms
  • Magnet Structure: 11 oz (0.312 kg)
  • Mounting Depth: 3.69″ (9.37 cm)
  • Overall Dimensions: 9.37″ (23.8 cm) diameter
  • Recommended Power: 5 – 110 watts
  • Sensitivity: 90 dB @ 1w/1m
  • Tweeter: 1” / (25 mm) Pivoting Titanium
  • Woofer: 6.5” / (16.51 cm) IM Polypropylene cone with vapor deposited Titanium
Weight 7.936 lbs
