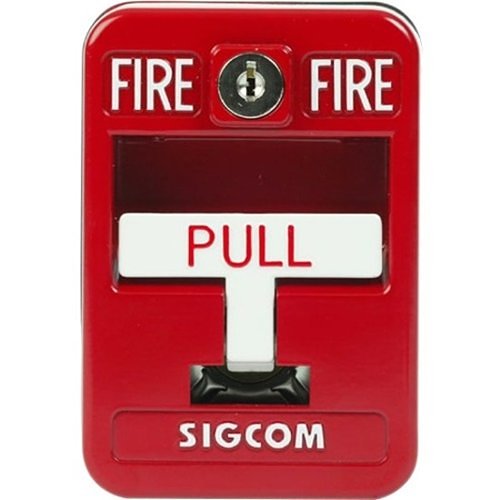

SigCom SG-42SK1-SC SG-42 Series Pull Station, Single Action for Fire Alarm, SPST, NO, Red (Replaces SG-32SK)

$79.99

Product Overview

The SG-42SK Series are key-reset, manual pull stations designed to meet the requirements for many applications. They are constructed from a rugged, but lightweight, die-cast metal alloy for increased performance and longevity. This series of stations is available in single action (PULL lever) or dual action (PUSH bar and PULL lever) models.

Sigcom SG Series pull stations include a terminal strip that can accommodate wiring from #22 to #14 AWG. Contacts are gold plated to minimize risk of corrosion. All models have been tested by UL and found in compliance with the pull force requirements of the Americans with Disabilities Act (ADA).

Operation

The stations are operated by pulling the handle marked "PULL" on the front of the unit as far down as it will go. At that point, the handle will lock in place and is easily visible from up to 50 feet. The activation handle is reset by opening the station with the key, placing the "PULL" handle to its normal upright position and relocking the station. On the dual action, the "PUSH" bar moves inward allowing the "PULL" handle to be operated by a single hand.

Main Features
  • Single or Dual Action
  • Screw Terminal Connections
  • DC and AC Voltage Contact Ratings
  • Gold Plated Alarm Contacts
  • Surface or Weatherproof Back-box
  • Deeper Back-boxes available to provide more space for wire and/or addressable module.
General Information
Name: SigCom SG-42SK1-SC SG-42 Series Pull Station, Dual Action, for Fire Alarm, SPST, NO, Red (Replaces SG-32SK), Signal Communications Corporation, Signal Communication
Category: Signal Communication, Fire, Fire Pull Stations, Dual Action Pull Stations
UPC Code: 999999410773
Country of Origin: China. Country of origin is subject to change.
