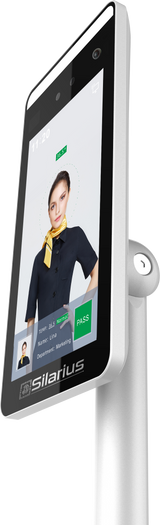

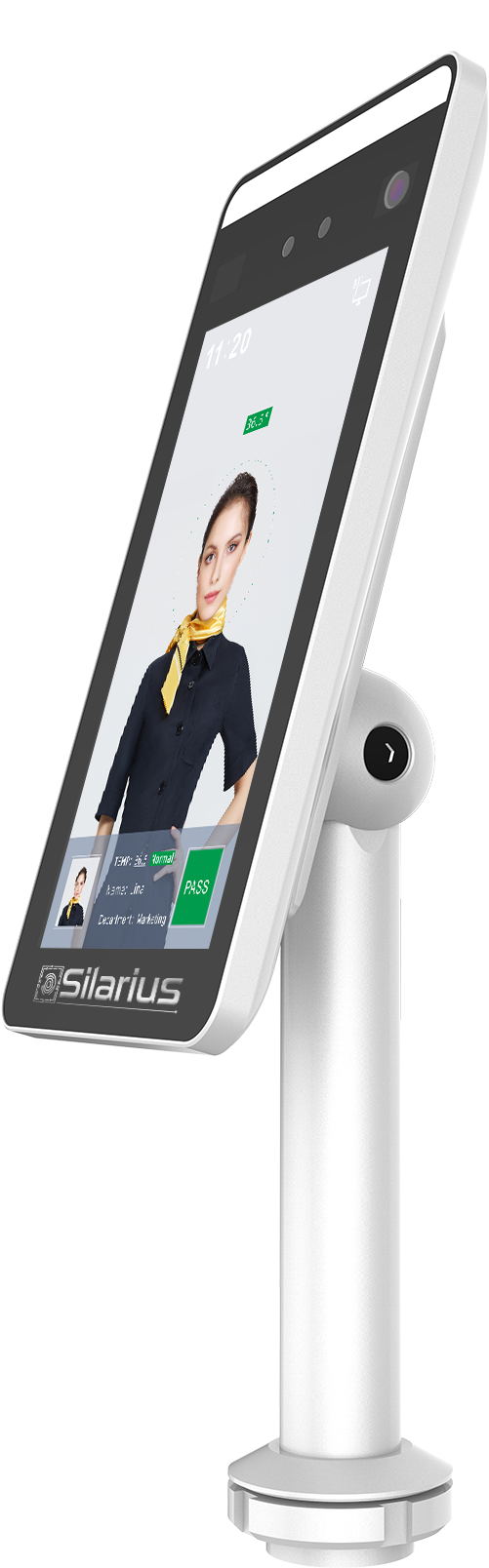

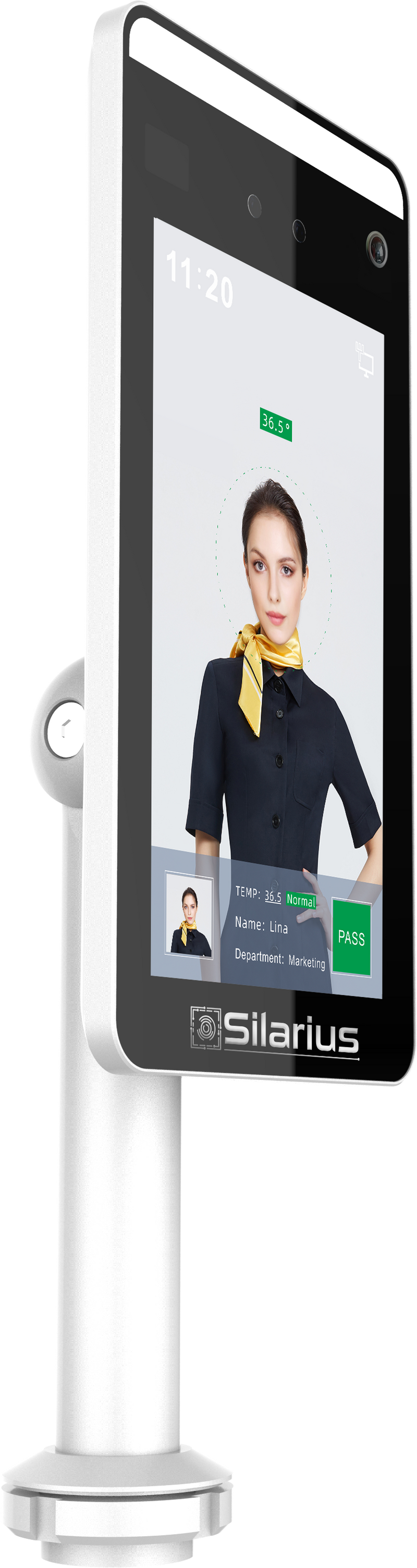

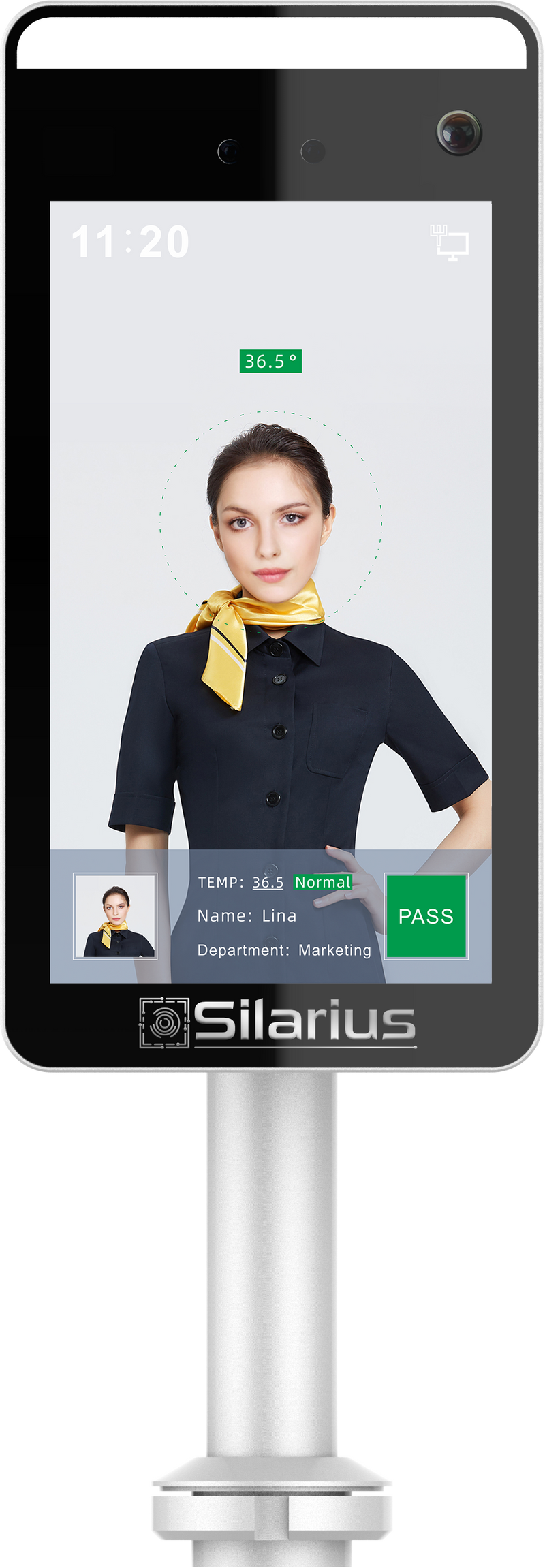

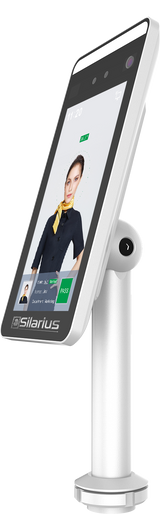

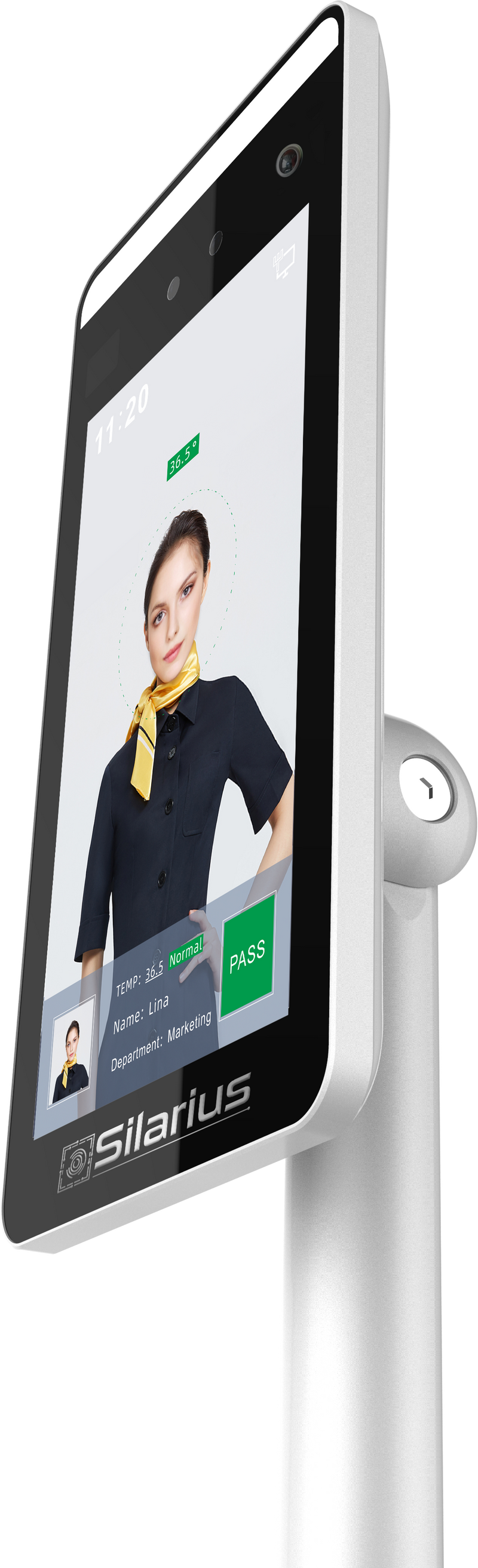

Silarius SIL-FRTEMP 7" Temperature Thermal Terminal with Face Recognition and Mask Detection (Table Stand Included) NDAA Compliant

$799.99 $1,499.99

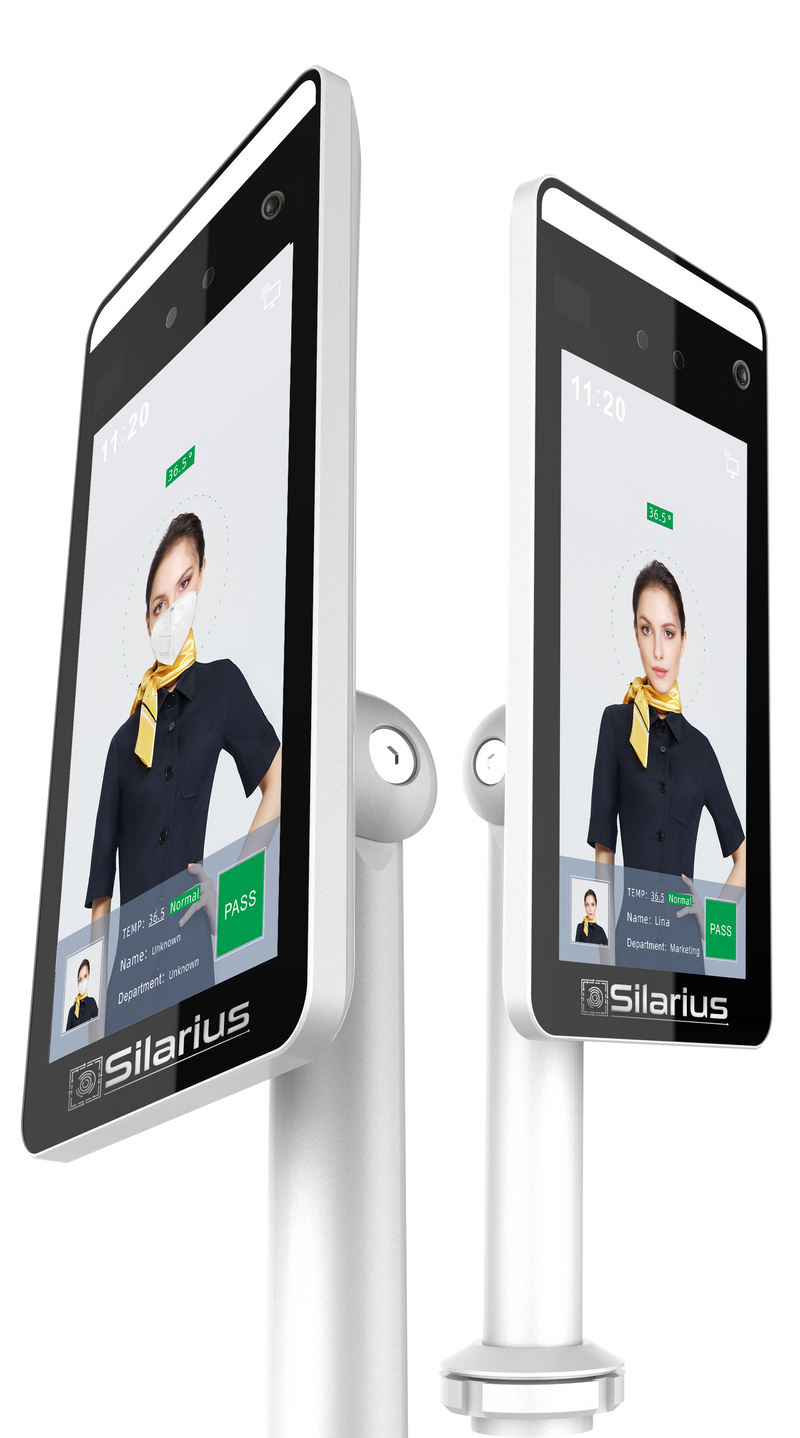

The Silarius SIL-FRTEMP 7" Temperature Thermal Terminal is a versatile device with face recognition and mask detection support. It features a durable construction with an aluminum alloy housing and a 7" tempered glass screen panel. The Silarius thermal terminal is NDAA-compliant and provides accurate recognition. It detects masks and is not affected by glasses, fringe lengths or facial expressions.

The unit also quickly and efficiently reads temperatures from 35 to 42 degrees Celsius. The response speed is 200ms and it can store up to 25,000 records. It provides full screen recognition with additional details displayed along the bottom. The IPS HD LCD display has a built-in 2MP camera and produces clear and colorful images.

The device runs on a Linux system and has 8GB of ROM for storage. It connects to networks with IPv4, TCP/IP and HTTP protocols for easy installation. The integrated speaker provides a voice broadcast after the recognition is successful.

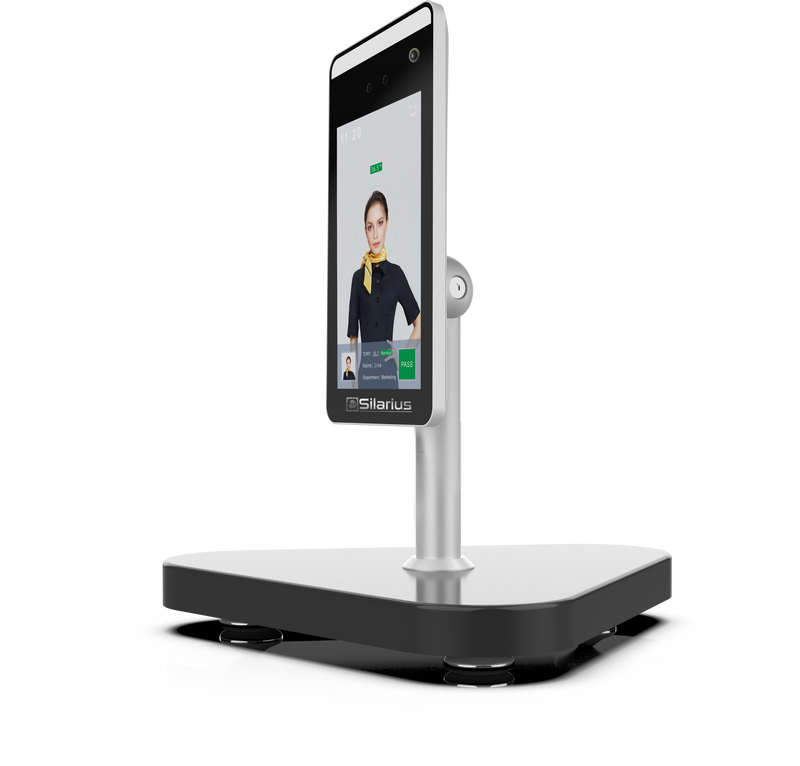

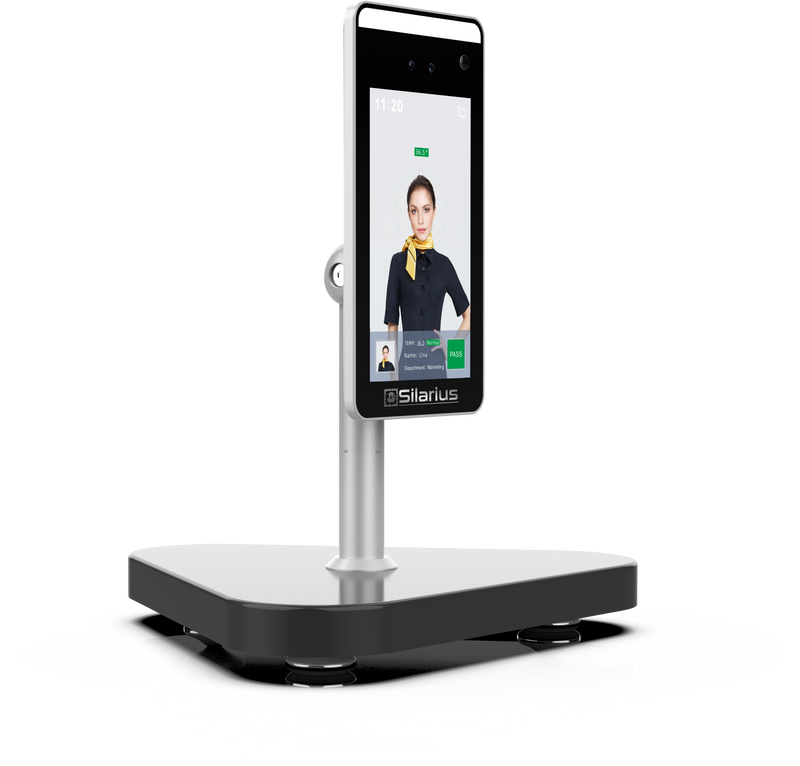

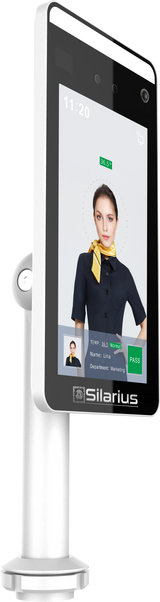

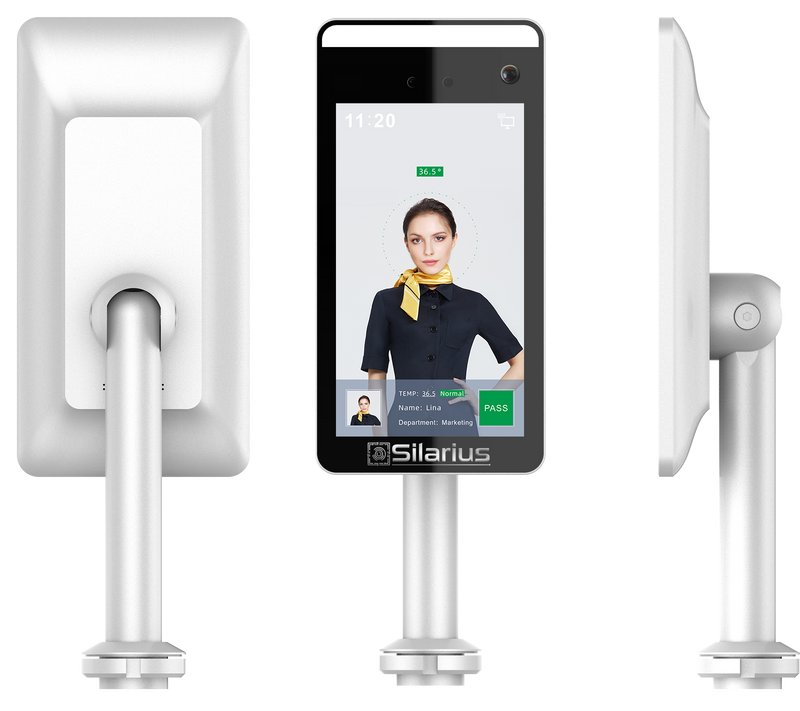

The Silarius terminal comes complete with a table stand for desktop installation. The swivel bracket on the back enables you to adjust the angle of the screen. It can also be adapted for floor, column and wall mounting.

The Silarius SIL-FRTEMP 7" Thermal Terminal is an excellent choice to ensure the safety of visitors and employees.

System
Main Processor: MX3520
Operating System: Embedded LINUX
RAM: DDR3 512MB
ROM: EMMC 8GB


Screen
Dimensions: 7 inch IPS HD LCD screen
Resolution: 600*1024


Camera
Type: 2MP camera
Sensor: 1/5" GC2145
Resolution: NIR 800*600 15fps
Lens: 2.4mm
Type Daily camera
Sensor 1/2.8" SONY Starvis Back-illuminated CMOS sensor IMX307
Resolution Color: 1920*1080 30fps
Lens: 4.5mm


Body temperature detection
Temperature range: 35℃-42℃
Temperature measuring distance: 0.5-1.3m, 0.75m is the best
Temperature measurement accuracy: ± 0.3℃


Face recognition
Detection Type: Mask Detection / Face Recognition
Face recognition distance :0.5-1.5m
Face database capacity: Max support 30,000 faces
Face Posture: Vertical 58°-60°, horizontal 35°
Occlusion: Ordinary glasses and short fringe have no effect on recognition.
Expression: Under normal circumstances, slight expressions do not affect recognition.
Response Speed: About 200ms
Face exposure: Support
Local Storage: Support storage of 25,000 records
Recognition area :Full screen recognition
Upload Method: TCP, HTTP, MQTT


Network Functions
Network protocol: IPv4, TCP/IP, HTTP
Interface protocol :Private protocol
Security Mode: Authorized password
Event linkage: Voice broadcast, Abnormal event upload to the platform
System Upgrade: Support remote upgrade


Accessories
Supplementary light: IR light, LED white light
Identification Module /
Audio out: Built in Speaker support voice broadcast after successful recognition
Network Module /


Interface
Network Interface: RJ45 10M/100M Network Adaptation
Alarm Input /
Alarm Output: Support 1 channel
Relay Output: Support
RS485 interface: Support
Wiegand interface: Support Wiegand 26, 34 protocols
TF card slot /
HDMI /
Reset key: Support
Anti-disassembly switch /


General
Housing: Aluminum alloy, Ultra-white tempered glass panel, IP66
Operating Temperature: 10 ° C ~ 40° C
Working humidity: 10% -90% Non-condensing
Storage Temperature: -40 ° C ~ 70 ° C
Storage humidity: 5% -95% Non-condensing
Protection Level /
Power Supply: DC12V
Power dissipation: (maximum) ≤ 12 W
Dimensions (mm): 219 (W) * 111 (H) * 21.5 (T)
Bracket size (mm): φ27*189
Installation Method: Desktop installation/Floor installation/Gate machine installation/Column installation/Wall installation



DOWNLOAD CONFIG TOOL HERE
