The CM500i is a 5.25", 2-Way, blind-mount in-ceiling speaker that delivers effective low-end response (55 Hz) and optimal off-axis performance (2-10 kHz, independently verified). SoundTube's proprietary BroadBeam waveguide tweeter system delivers consistent high-performance audio across the operating bandwidth. The CM500i speaker design incorporates a low-profile grille, proprietary motor-board, and a six-position tap switch with a transformer bypass position. Mounting hardware is included and features a fast and secure constanttension fixed-wing mounting system.
- Patented BroadBeam waveguide technology delivers a consistent dispersion pattern for maximum intelligibility and edge-to-edge coverage (2-10 KHz, independently verified)
- One 5.25" (133.75mm) polypropylene woofer and one 1" (25.4mm) convex titanium tweeter with FerroFluid cooling mounted to a proprietary castaluminum baffle and heat sink

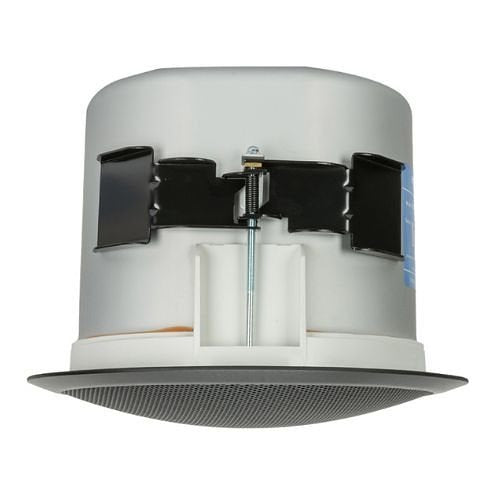

- Rapid installation blind-mount, fixed-wing mounting mechanism with constant tension design affixing to ceiling thicknesses ranging from 0.25" (6.4mm) to 1.91" (48.5mm)

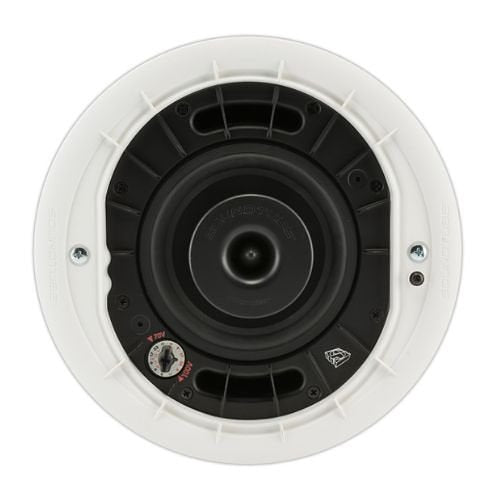

- Easy access six-position selectable tap switch for 25, 70.7, and 100V applications with transformer bypass position
- Separate tool-free magnetic grille and bezel assembly with integrated safety cable for ease of install and in-field painting

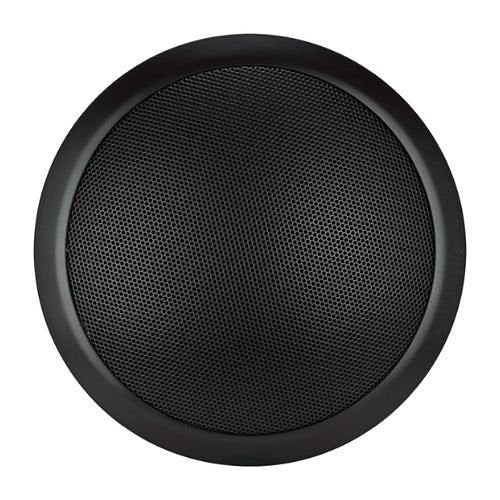

- Steel grille with protective powder-coated finish for lasting durability
- Average sensitivity of 86.5 dB offers high-output capabilities and reduced amplification costs
- UL1480A and UL2043 approved
- Included accessories; tile bridge, Euroblock connector, conduit plate, and paint mask
Name: SoundTube CM500i-BK 5.25" Ceiling Speaker BroadBeam Tweeter, Black, MSE Audio, SoundTube
Category: SoundTube, Pro AV, Commercial Audio, Pro Speakers
Country of Origin: China. Country of origin is subject to change.
