4POSTRACK25U 25U Adjustable Depth Open Frame 4 Post Rack w/Casters


General Information

Manufacturer Part Number: 4POSTRACK25U
Manufacturer Website Address:
Brand Name:
Product Name: Rack Cabinet
Marketing Information:

The 4POSTRACK25U 25U Server Rack lets you store your servers, network and telecommunications equipment in a sturdy, adjustable depth open-frame rack.

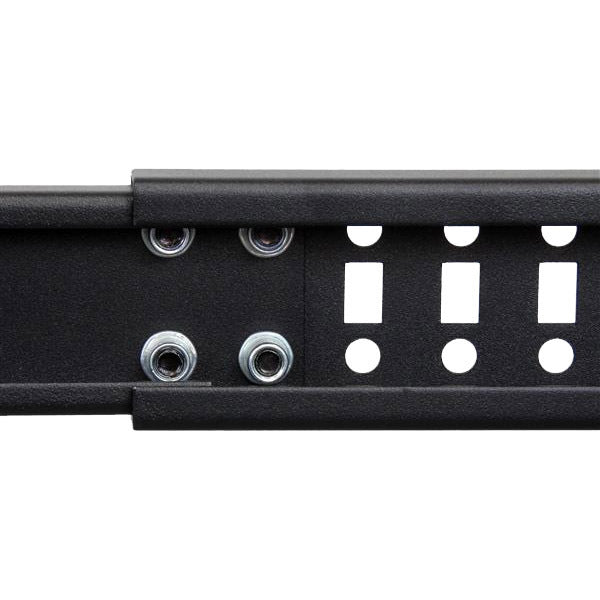

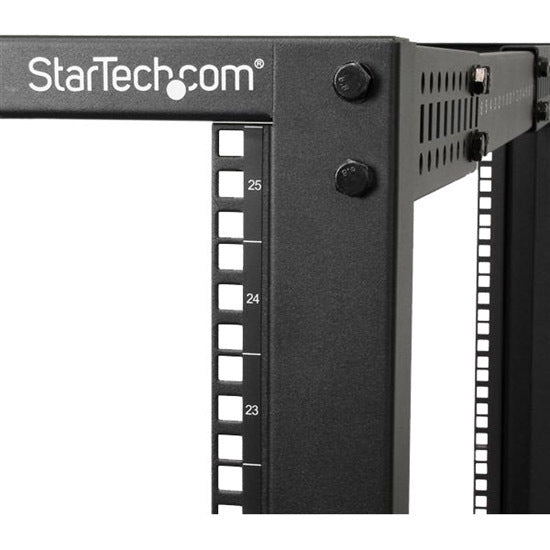

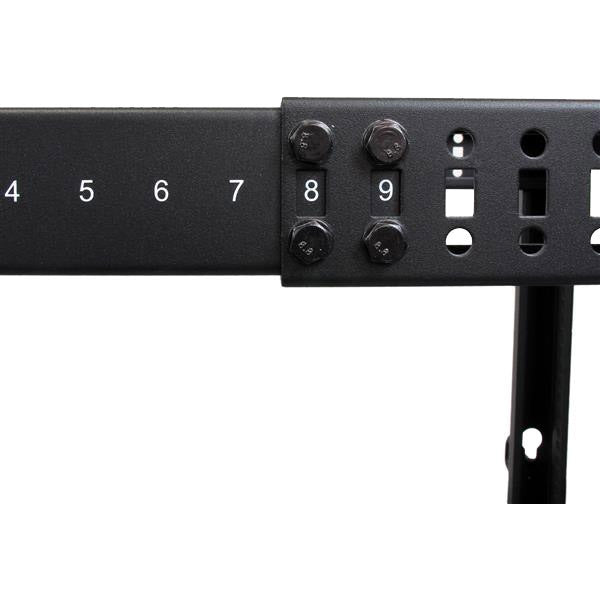

Designed with ease of use in mind, this 25U rack offers easy-to-read markings for both rack units (U) and depth, with a wide range of mounting depth adjustments (22 - 40in) that make it easy to adapt the rack to fit your equipment.

This durable 4-post rack supports a static loading capacity of up to 1200lbs (544kg), and offers compliance with several industry rack standards (EIA/ECA-310, IEC 60297, DIN 41494) for a universal design that's compatible with most rack equipment.

For a complete server storage solution that saves you time and hassle, the rack includes optional accessories such as casters, leveling feet and cable management hooks. The base is also pre-drilled for securely fastening the rack to the floor if needed, providing you with additional stability to better suit your server environment.

Backed by a 2-year warranty and free lifetime technical support.

Product Type: Rack Cabinet

Technical Information

Application/Usage: A/V Equipment
Application/Usage: KVM Switch
Application/Usage: LAN Switch
Application/Usage: Patch Panel
Application/Usage: Server
Features: Leveling Feet
Features: Cable Management
Features: Casters

Physical Characteristics

Form Factor: Floor Standing
Color: Black
Material: Steel
Static/Stationary Weight Capacity: 1199.31 lb
Height: 50.8"
Width: 23.8"
Length: 41.3"
Rack Height: 25U
Rack Width: 18.30"
Rack Depth: 40"
Weight (Approximate): 72.90 lb


Package Contents:

  • 2 x Left Vertical Rail

  • 2 x Right Vertical Rail

  • 2 x Base Bracket

  • 8 x Corner Section

  • 4 x Center Section

  • 2 x Top Bracket

  • 48 x M8 Bolt

  • 48 x M8 Washer

  • 1 x M8 (13mm) Wrench

  • 1 x M6 (10mm) Wrench

  • 1 x Phillips Screwdriver

  • 32 x M6 Cage Nut

  • 32 x PVC Cup Washer

  • 32 x M6 Phillips Head Screw

  • 12 x Cable Management Hook

  • 12 x Hook Mounting Screw

  • 4 x Casters

  • 4 x Leveling Feet

  • 16 x M6 Screw

  • 16 x M6 Flat Washer

  • 16 x M6 Flange Nut

  • 4 x Grounding Wires

Certifications & Standards:

  • DIN 41494

  • EIA/ECA-310-E

  • IEC 60297-3-100

Assembly Required: Yes
Environmentally Friendly: Yes
Environmental Certification: RoHS
Environmental Certification: REACH


Limited Warranty: 2 Year
