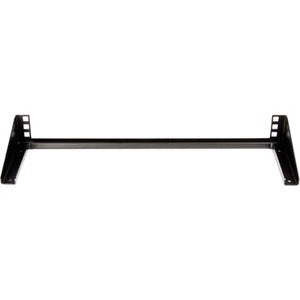

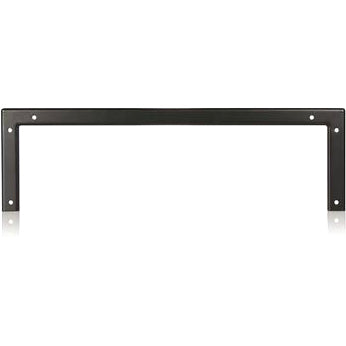

RK119WALLV 1U 19in Steel Vertical Wall Mount Equipment Rack Bracket


General Information

Manufacturer Part Number: RK119WALLV
Manufacturer Website Address:
Brand Name:
Product Name: 1U 19in Steel Vertical Wall Mount Equipment Rack Bracket
Marketing Information:

The RK119WALLV 1U 19in Steel Vertical Wall Mount Equipment Rack Bracket offers a versatile storage solution allowing rackmount equipment (Network devices, power strips, patch panels) to be mounted vertically (flush with wall) to save space. Alternatively, the 1U bracket can be installed horizontally under a desk, making it easy to access installed equipment directly from your workspace. This TAA compliant product adheres to the requirements of the US Federal Trade Agreements Act (TAA), allowing government GSA Schedule purchases.

Perfect for SoHo (small office, home office) environments, the wallmount bracket features a sturdy steel design constructed to EIA-310 19in rack standards, and offers space-savings for environments lacking the footprint space for a full size server equipment rack. Suitable for mounting on virtually any wall/ceiling surface (e.g. drywall), the bracket mounting holes are positioned at exactly 16in apart, matching standard construction framework.

Backed by a Lifetime Warranty.

Need more storage space? also offers a 2U 19in Wallmount Bracket, a 3U 19in Wallmount Bracket and a 4U 19in Wallmount Bracket.

Packaged Quantity: 1
Product Type: Mounting Bracket

Product Information

Device Supported: A/V Equipment
Device Supported: Network Equipment
Device Supported: Patch Panel
Device Supported: Power Strip
Maximum Load Capacity: 125 lb

Physical Characteristics

Color: Black
Height: 2.3"
Width: 19.8"
Length: 5.9"
Weight (Approximate): 1.49 lb


Package Contents:

  • 1 x Vertical Wall Mount Bracket

  • 4 x Cage nuts and screws (4 Each)

  • 6 x Self Tapping Wood Screws - 3/16" x 1 1/2"


  • Network Device

  • Power Strip

  • Patch Panel

Certifications & Standards:

  • CE

  • UL

Environmentally Friendly: Yes
Environmental Certification: RoHS
Environmental Certification: REACH
TAA Compliant: Yes


Limited Warranty: Lifetime
