StarTech RK15WALLOA 15U Wallmount Rack w/ Adjustable Rails-Up to 20 Inches Depth


General Information

Manufacturer Part Number: RK15WALLOA
Manufacturer Website Address:
Brand Name:
Product Name: 15U Wall Mount Server Rack- Equipment Rack - 12 - 20 in. Depth
Marketing Information:

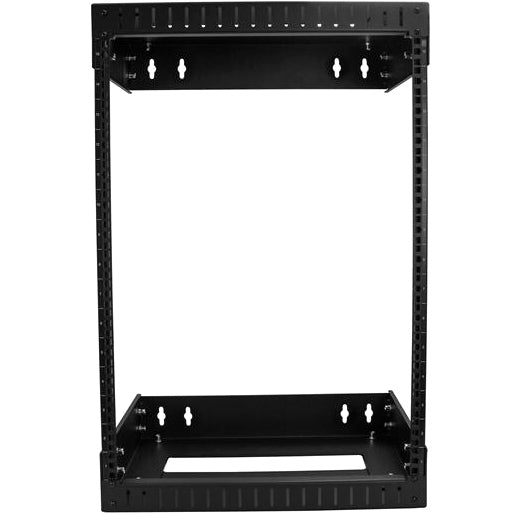

This open frame wallmount server rack provides 15U of storage, helping you to save space and stay organized. The equipment rack features an adjustable depth and can hold a total of up to 198 lb (90 kg).

Accommodate Larger Devices

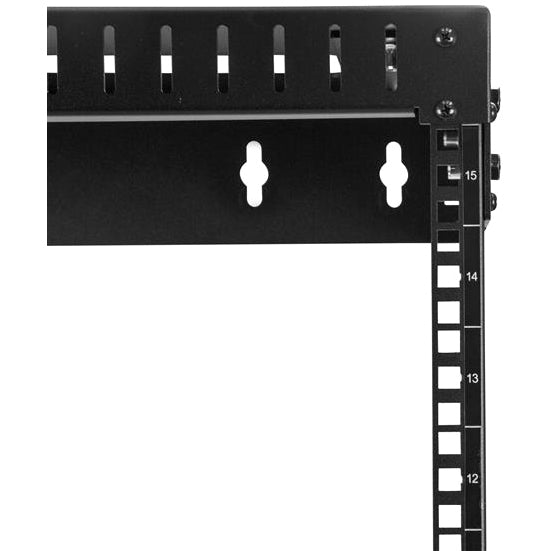

The open frame rack adjusts from 12 to 20 inches (30.4 to 50.8 cm) to accommodate larger data, network, and telecommunication devices. The above-average depth also gives you the option to mount shelves and other accessories.

Free up Floor Space

When space is limited you can wall-mount the open-frame rack in a server room, office, or above a doorway, to expand your workspace and ensure your equipment is easy to access.

Keep Equipment Cool and Accessible

The rack's open frame design promotes passive cooling; ensures easy access to your rack-mounted equipment and makes it simple to configure mounted devices, which saves you time.

Easy, Hassle-Free Installation

With an adjustable depth as low as 12 inches (30.4 cm), this network rack is perfect for smaller spaces. It's easy to assemble and features wall-mounting holes that are spaced 12 and 16 in. apart, making it suitable for mounting on almost any wall, based on North American wall-frame stud-spacing standards.

Product Type: Rack Frame

Technical Information

Application/Usage: Patch Panel
Application/Usage: LAN Switch
Application/Usage: Server

Physical Characteristics

Form Factor: Wall Mountable
Color: Black
Material: Steel
Maximum Weight Capacity: 198.42 lb
Height: 30.4"
Width: 19.8"
Length: 20.1"
Rack Height: 15U
Rack Width: 19"
Rack Depth: 19.90"
Weight (Approximate): 33.51 lb


Package Contents:

  • 2 x Vertical Rails

  • 2 x Front Horizontal Brackets

  • 2 x Rear Horizontal Brackets

  • 60 x M6 Cage Nuts

  • 60 x M6 Screws

  • 60 x Plastic Washers

  • 16 x Assembly Screws

  • 24 x Flat Washers

  • 24 x Bolts

  • 1 x User Manual

Assembly Required: Yes
Environmentally Friendly: Yes
Environmental Certification: RoHS
Environmental Certification: REACH


Limited Warranty: 5 Year
