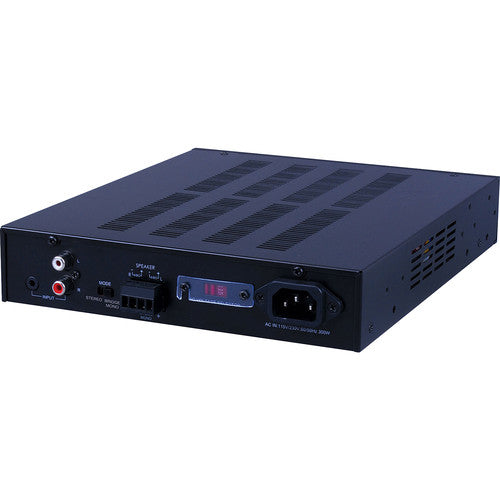

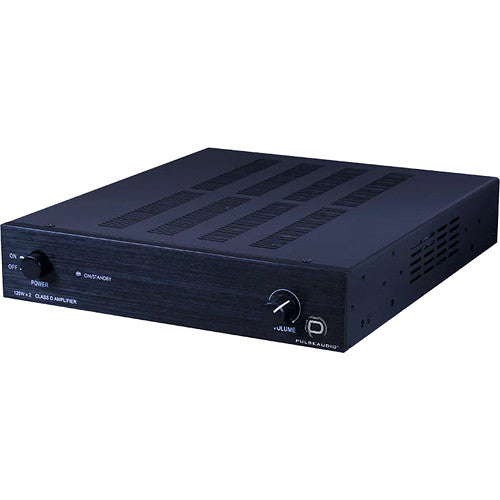

VANCO® PulseAudio™ PA2X125 2 Channel, Class D Amplifier (125W)

$492.50
  • VANCO® PulseAudio™ PA2X125 2 Channel, Class D Amplifier (125W)

    The PA2X amplifier series from PulseAudio is an ideal solution for residential and commercial audio installations that require a simple setup and great sound output. With a small footprint, but high output, these Class D amplifiers can sit on a desktop, or can easily be mounted on a wall or within a rack using the included mounting brackets. The PA2X125 Class D Digital Amplifier operates at up to 125W, can be used in a stereo system, but can also be switched for use in bridged or mono applications.



    Versatile Connectivity

    The inputs consist of two stereo audio inputs, two RCA inputs, and a single 3.5mm input for versatility. Also includes an auto-ON feature so the units do not need to be powered manually, just hit play and the amps will power on automatically! With a broad range of power output to pick from, the Pulse Audio PA2X amplifier series are a great solution for any desired application.



    PulseAudio™ from VANCO®

    With more than 50 years in the electronics accessories industry, PulseAudio draws upon Vanco’s years of experience to design and manufacture innovative products. The launch of PulseAudio is of strategic importance as it evolves Vanco to carve out a position in the A/V market, offering affordable, easy-to-integrate audio solutions for its professional channels. Both PulseAudio and Vanco’s customers will derive maximum benefit from an ongoing commitment to exceptional quality and customer support.



    Class D Digital Amplifier

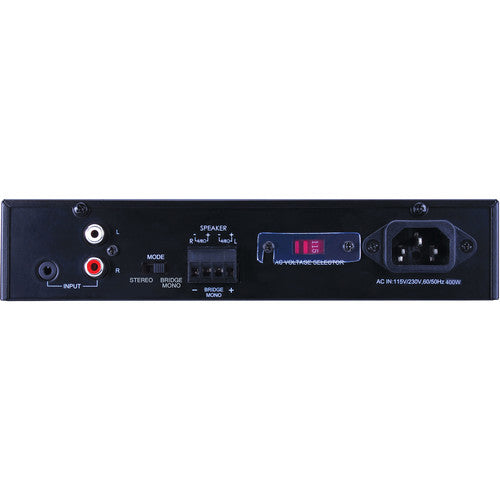

    RCA and 1/8" Stereo Inputs
    Mixes audio when both inputs are connected and live
    Stereo and Mono/Bridge Modes
    Automatically goes into standby after 5 minutes of inactivity
    Source Sensing to come out of standby when a connected source begins to play
    AC 115/230V IN
    Power Output (RMS @ 8 Ohms): 125Wx2
    Power Output (RMS @ 4 Ohms): 180Wx2
    Bridge Output (RMS @ 8 Ohms): 360W
    Total Harmonic Distortion (THD): <1% (Rated Power: 125W @ 8 Ohms)
    Signal to Noise: >90 dB A WTD
    Frequency Response: 20Hz-20KHz +0/- 2dB @ 8 Ohms
    Line Level Input Sensitivity: 700mV
    Thermal Protection: Yes
    Short Protection: Yes
    Dimensions: 214mm x 250mm x 44mm (WxDxH)
    Weight: 1.65kG
    Package Contents:
    • Bridgeable Amplifier
    • Power Lead Cable
    • 1-4 Conductor Phoenix Connector (Screw down terminal)
    • Mounting Bracket and Screws
    • Product Manual
