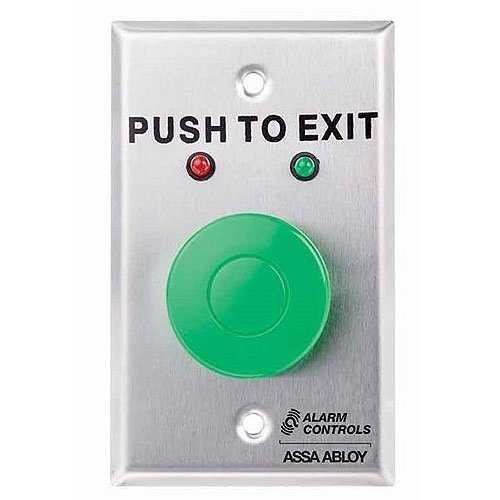

Alarm Controls TS-1LATCHRED Request to Exit Station, Labeled "PUSH TO EXIT", Stainless Steel

Alarm Controls TS-1LATCHRED Request to Exit Station, Labeled "PUSH TO EXIT", Stainless Steel

$210.00

Product Overview

The TS-1 single gang request to exit station with push button and LEDs provides a convenient way to monitor the lock station. LED status indicators provide an at-a-glance visual of system status.

Features

Standard Features

  • Switch mounted on single gang wall plate with 430 stainless steel finish
  • Large 1-1/2" green mushroom button
  • Plate labeled “PUSH TO EXIT” for easy to follow egress instructions
  • 1/4" red and green LED status indicators; illuminated with hi-brightness LED
  • Momentary action switch

Options

  • TS-1Lwith alternate action switch
  • TS-1Rwith red mushroom push button
  • Finishes: multiple plate finishes available
  • Other contact combinations available as custom part

Specifications

Certifications & Listings

  • UL 294 listed
  • CSA Certified components

Electrical:

  • One N/O and N/C contact
  • Contacts rated 10A at 35 VDC or 120 VAC
  • Switch connection via screw terminals
  • Switch depth behind plate: 2"
  • LEDs operates on 12 or 24 VAC/VDC, independently wired

Operating Temperature:-13F to +158 F (-25 to 70 C)

General Information
Name: Alarm Controls TS-1LATCHRED Request to Exit Station, Labeled "PUSH TO EXIT", Stainless Steel, ASSA ABLOY, Alarm Controls by ASSA ABLOY
Category: Alarm Controls by ASSA ABLOY, Access Control, Egress Devices, Request to Exit Devices
UPC Code: 604840721561
Country of Origin: United States. Country of origin is subject to change.
