Product Overview

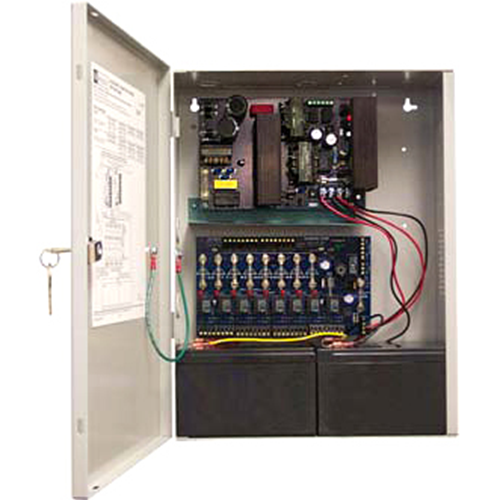

Introducing the Altronix AL1024ULACM Access Power Controller, designed to efficiently manage power for your access control systems. This robust unit transforms a 115VAC, 60Hz input into eight independently controlled, fuse-protected outputs, offering both 12VDC and 24VDC options. Ideal for powering various access control devices such as mag locks and electric strikes, it supports both fail-safe and fail-secure modes. The FACP interface allows for emergency egress and alarm monitoring, ensuring safety and reliability. With selectable fire alarm disconnect features for each output, this power controller is a must-have for any security setup. Enhance your security system today with the Altronix AL1024ULACM!
Main Features
- Eight (8) independently controlled outputs
- Output options: Eight (8) Fail-Safe and/or Fail-Secure power outputs; Eight (8) form “C” 5A rated relay outputs; Any combination of the above
- Eight (8) auxiliary power outputs (unswitched)
- Output fuses are rated @ 3.5A
- Filtered and electronically regulated outputs
- Supervision: AC Fail/ Battery Fail and Battery Presence
- Fire Alarm disconnect (latching or non-latching) is individually selectable for any or all of the eight (8) outputs
- Alarm output relay indicates that FACP input is triggered
- Fire Alarm disconnect input options: a) Normally open (NO) or normally closed (NC) dry contact input b) Polarity reversal input from FACP signaling circuit
- Built-in charger for sealed lead acid or gel type batteries
General Information
Name: Altronix AL1024ULACM Access Power Controller with Power Supply Charger, Fused Relay Outputs, 24VDC at 10A, BC400 Enclosure
Category: Altronix, Batteries & Power Supplies, Power Supplies & Boards, Access Power Controllers
UPC Code: 782239935765
Country of Origin: United States. Country of origin is subject to change.
